Redarc 350W User Manual

4
1 INTRODUCTION

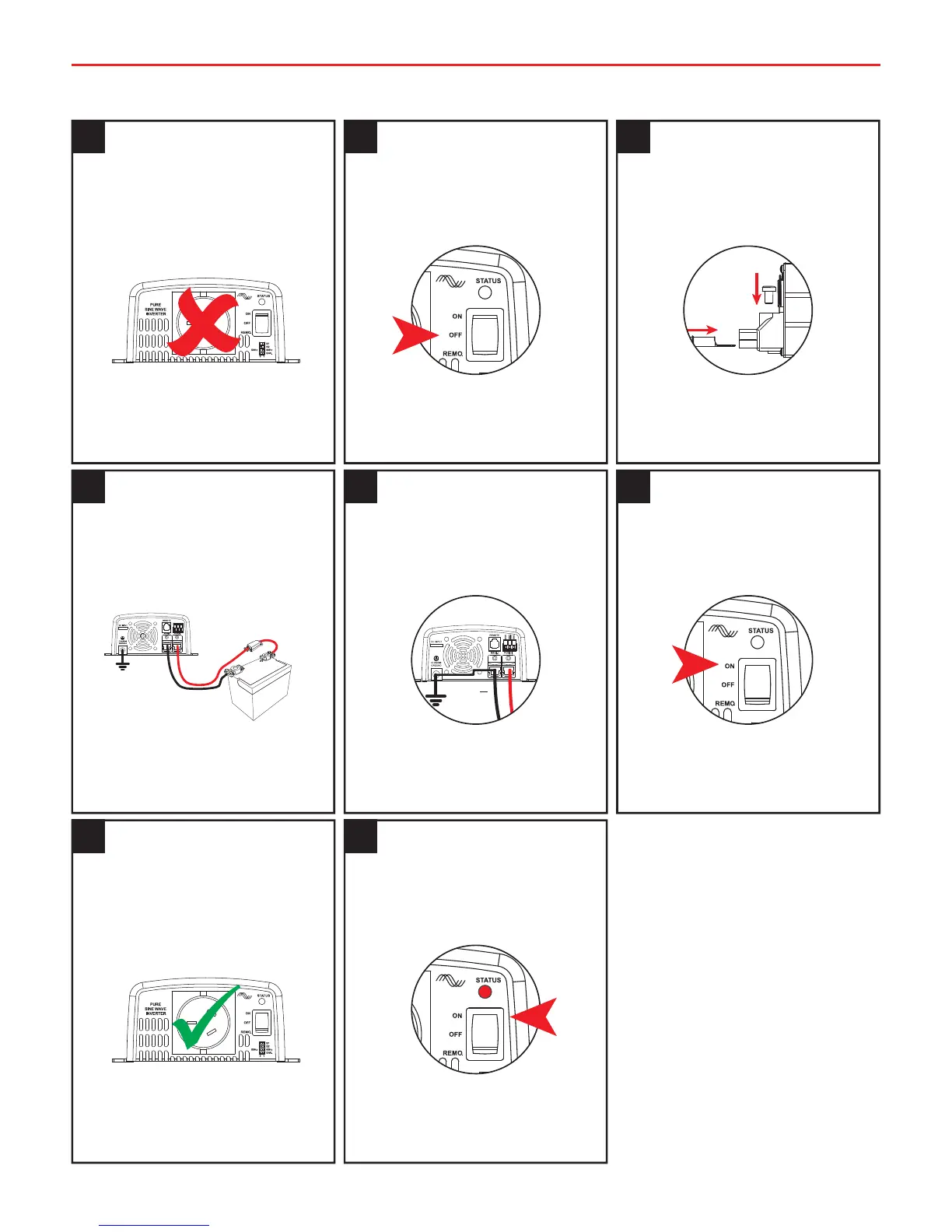

1.1 Quick Start Guide
Ensure all Loads
are Disconnected
1
Ensure no loads are
connected to the
Inverters AC Output.
Set Main Switch
to ‘OFF’
2
Ensure that the
Inverter Main Switch
is set to the ‘OFF’
position.
Ensure unit is
Grounded
5
Connect Chassis
Ground Terminal to
Negative Input
Terminal
+
Set Main Switch
to ‘ON’
6
Switch the Inverter
Main Switch to the
‘ON’ position.
Connect DC
Cables
3
Connect the DC cables
to the Inverters DC
Input Terminals.
Check cable and
fuse size
(Refer section 2.2.4)
4
Ensure that the cable
is of adequate size
and is protected by
the correct sized fuse.
Switch OFF and
connect AC loads
7
If the LED is ‘Green’
switch unit off &
connect loads to the
Inverter AC Output.
Refer to section
2.1.3
8
If the Inverter Status
LED is not ‘Green’
please refer to
section 2.1.3.
