7
2 USER GUIDE
RISK OF ELECTRICAL SHOCK. DO NOT DISASSEMBLE THE INVERTER - THE INTERNAL
CIRCUITRY CONTAINS HAZARDOUS VOLTAGES. ATTEMPTING TO SERVICE THE UNIT
YOURSELF MAY RESULT IN ELECTRIC SHOCK OR FIRE AND WILL VOID THE UNIT WARRANTY.
2.1 Front Panel Operation
The R-12-350RS and R-24-350RS are members of the most advanced line of mobile AC power
systems available. To get the most out of the power inverter, it must be installed and used properly.
Please read the instructions in this manual before installation and operating.
2.1.1 Main Switch
The 3 stage switch is for turning ON or OFF and selecting Remote mode
Set the power switch to the “ON” position. The inverter will perform self-diagnosis and the LEDs
will display various colours.
Set the power switch to the “OFF” position. The inverter will stop and all LEDs will turn off.

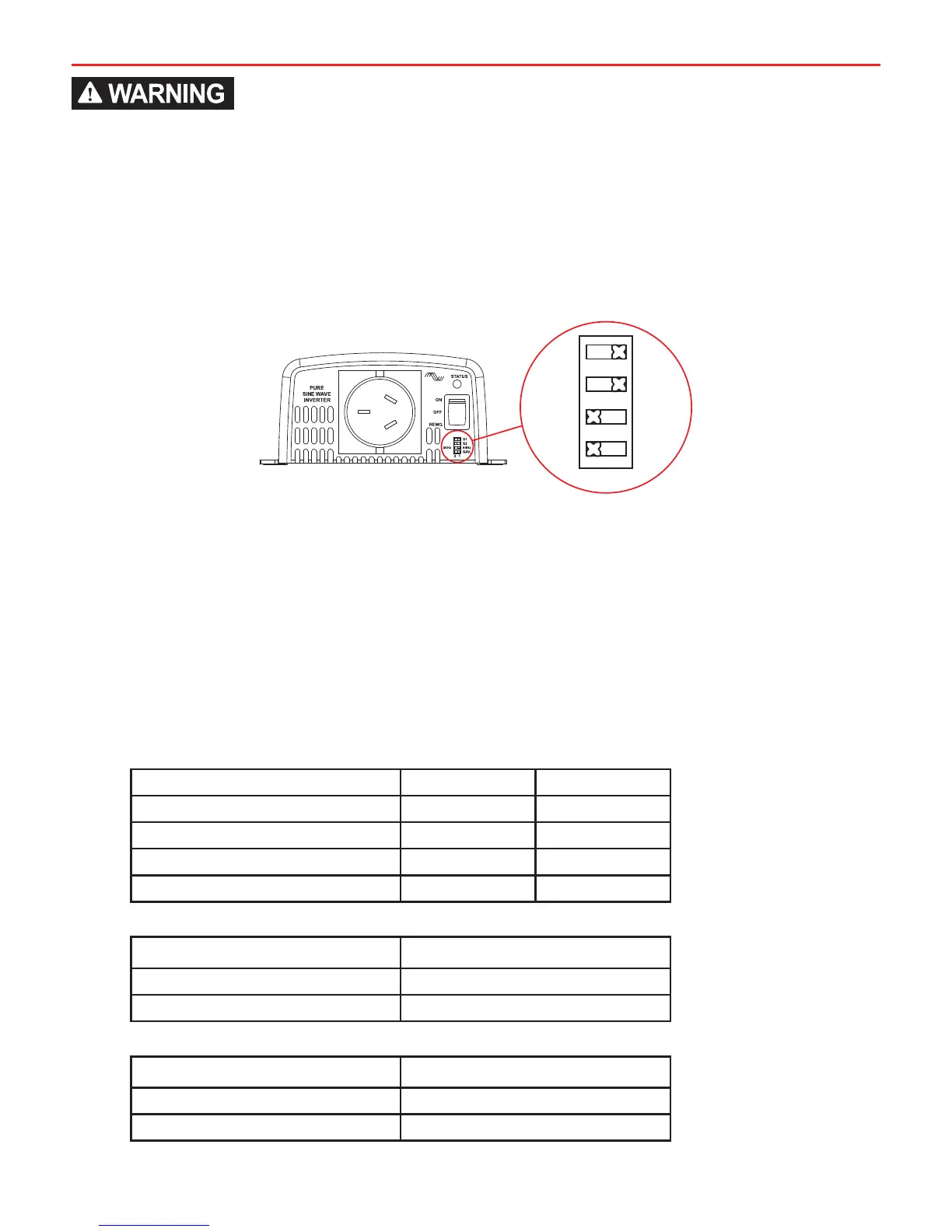

2.1.2 Function Switch
Power saving, Output frequency and Output voltage settings can be controlled using the
dipswitches found on the AC output end of the inverter.
2.1.1.1 Output voltage
Output Voltage Switch 1 Switch 2
200VAC 0 0
220VAC 0 1
230VAC 1 0
240VAC 1 1
2.1.1.2 Output Frequency
Frequency (Hz) Switch 3
50Hz 0
60Hz 1
2.1.1.3 Power saving
Power Saving Mode Switch 4
On 1
Off 0
50Hz
S1
S2
60Hz
SAV
0 1
Default positions shown
