Redarc MANAGER 30 Manual

11
2 INSTALLATION GUIDE
2.1 System Layout
2.2 Mounting Instructions
This section describes how to mount the three major components of The
Manager30: the Main Unit, the Remote Monitor and the Battery Sensor.
Vehicle
Battery
(Not Supplied)
House Battery
(Not Supplied)
BMS1230
Solar Panels
(Not Supplied)
Remote
Monitor
To Loads
(Not Supplied)
Battery
Sensor
110VAC
Mains Power
DC - DC
Power Source

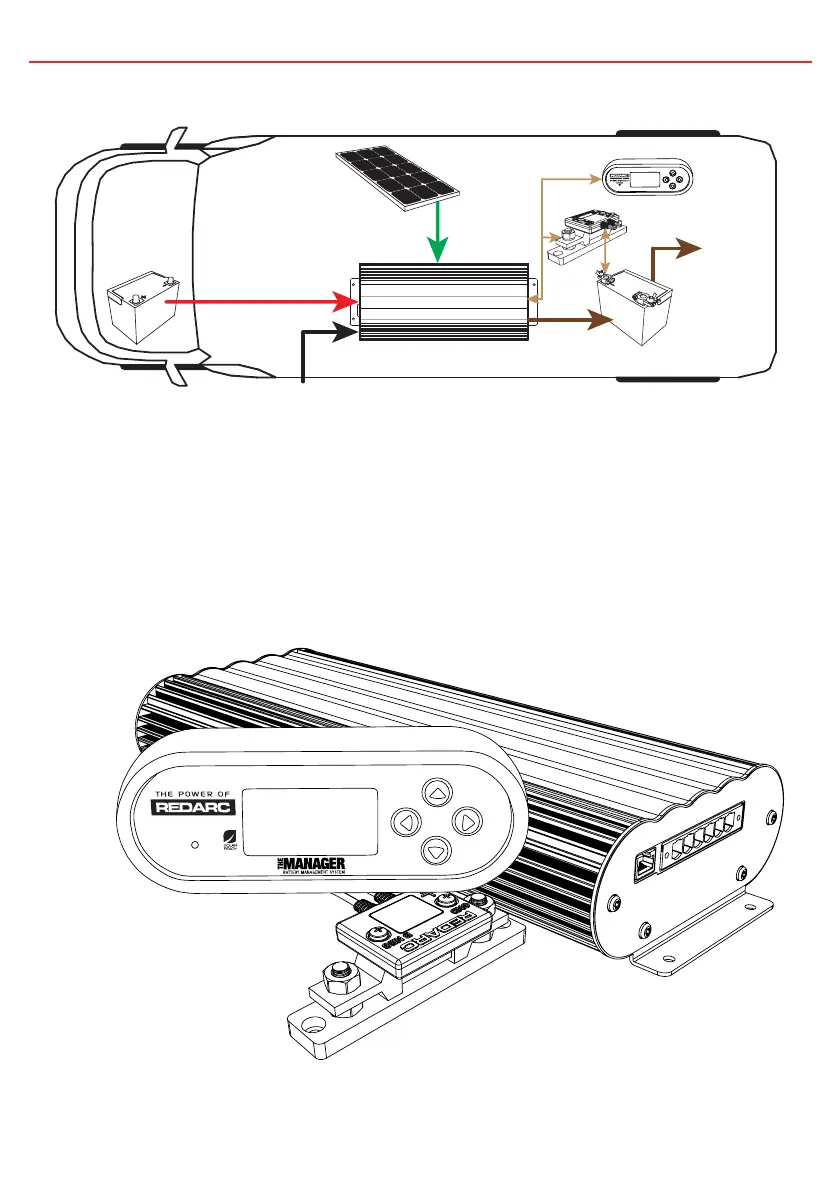

Figure 2.1.1 - System Layout
Figure 2.2.1 - The Manager30 System

Redarc MANAGER 30 Specifications

General

Battery Charging Capacity	30A
Input Voltage Range	9-32V DC
Output Voltage	12V DC
Standby Current Draw	<100mA
DC Input Fuse Rating	40A
Efficiency	Up to 95%
Battery Types	AGM, Gel, Calcium, LiFePO4
Protection Features	Over-voltage, under-voltage, over-temperature, short-circuit, reverse polarity
