Main parts descriptions
Main parts descriptions:
Front side /slide side:
1
2
34
12

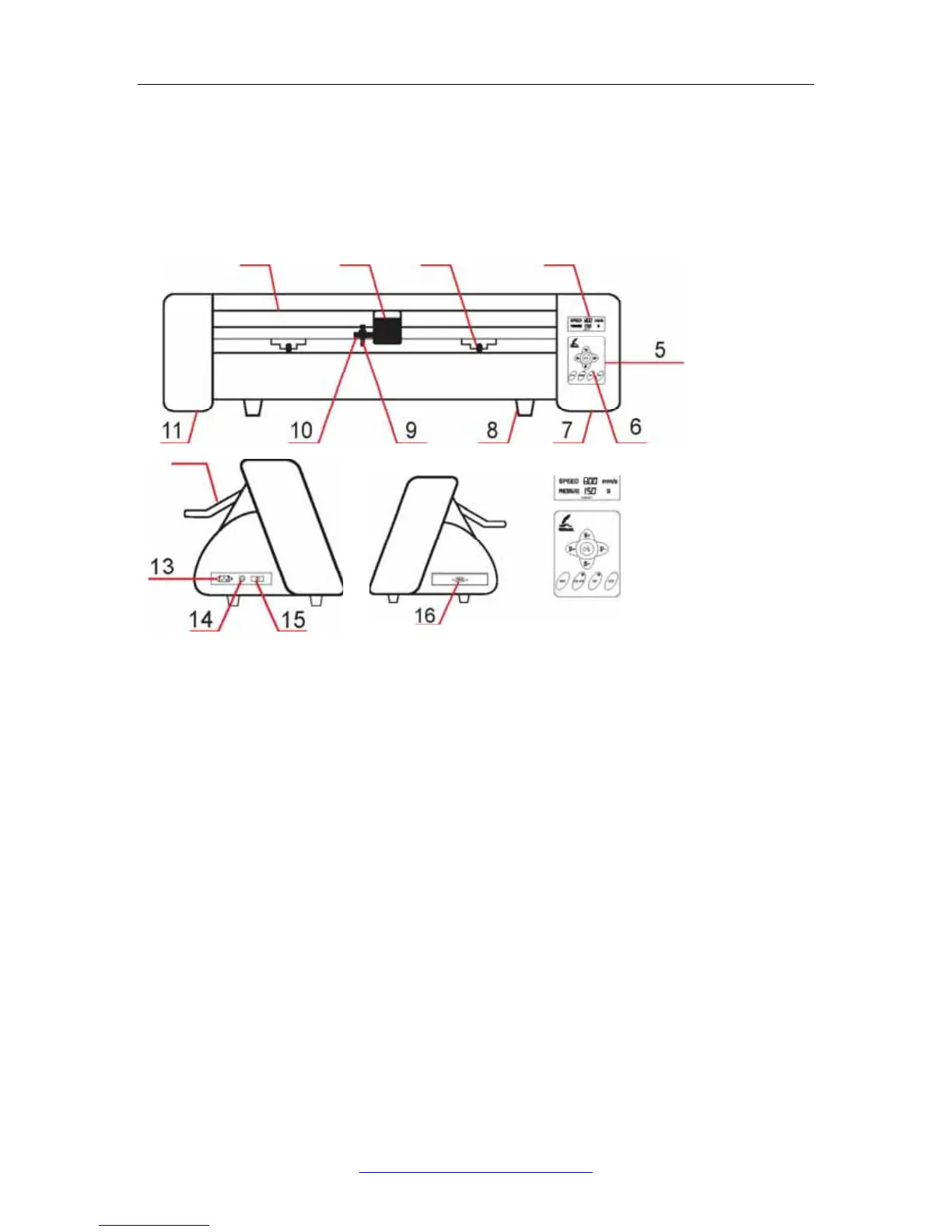

1.protection of track 2.carriage
3.roller 4.LCD monitor
5.keyboard panel 6.LED lamp
7.right shell 8.machine's foot
9.knife holder 10.seat of knife holder
11.left shell 12.handel to control the roller
13.AC power port 14.safe fuse
15.power's switch 16.RS232 port
