Redsail Cutting Plotter User Manual V4.0
Cutting Blade and Plotting Pen

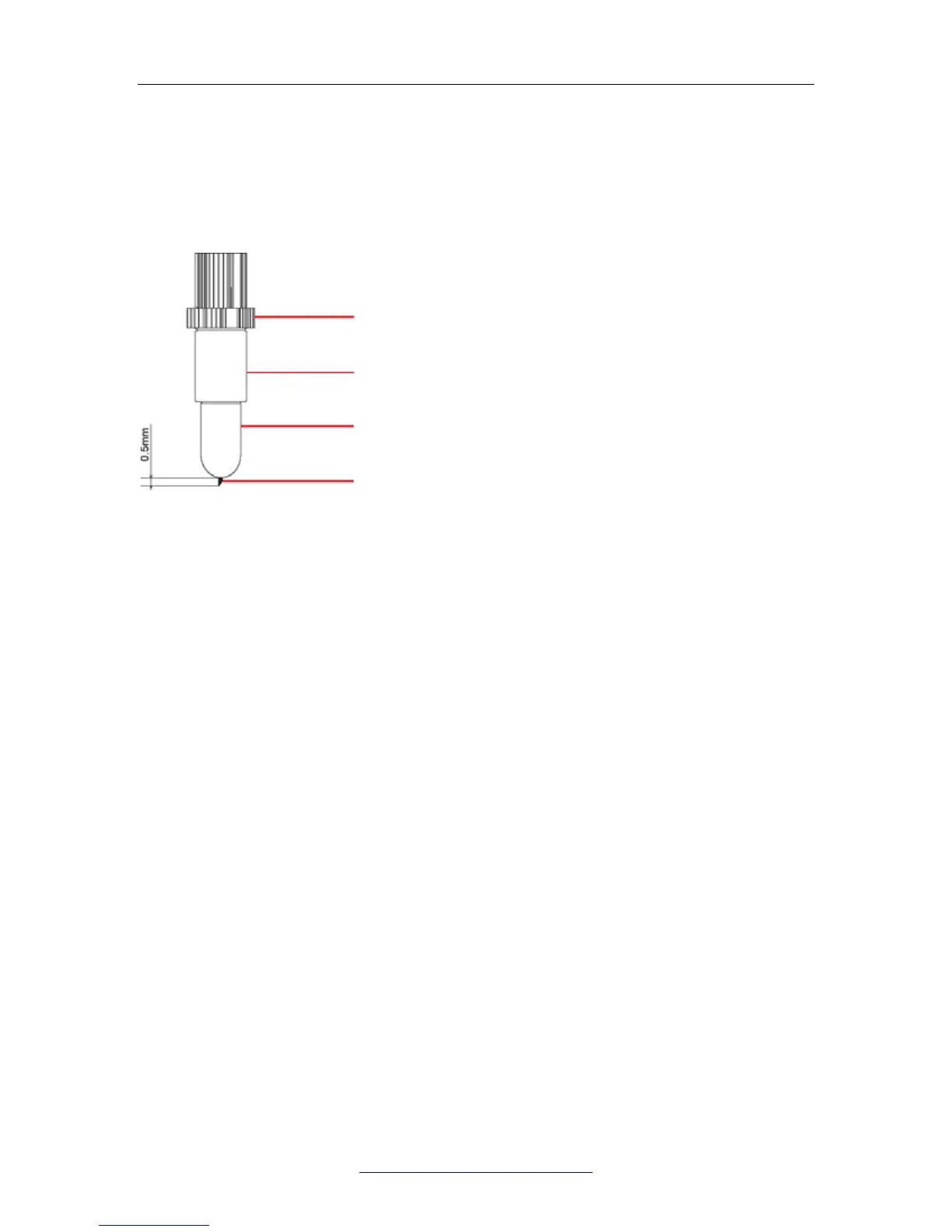

Cutting Blade Holder:
Locknut
H older's shel
l
Close screw
Knife
Locknut holder's shell close screw blade
On the working state, the knife can rotate in holder very smoothly. In the first time
you can screw the "close screw" off the "holder's shell", set the blade into bottom
of holder, then close the "close screw" to avoid the knife falling out, let the knife
peep out of the holder less than 0.5mm. When you want to change the blade,
take out the old blade, change a new one, then close the" close screw", keep the
blade peep out of the holder less than 0.5mm. (The locknut will not screw,
usually).
Remark:
The operating of changing blade is dangerous; you must protect your finger from
being hurt.
Keep the blade peep out of the holder less than 0.5mm; little peep out can
extend the blade’s using-life. Pressure is bigger, knife using-life will shorter.
When the blade is not very sharp, you can rub it on a rubber, thus you can
extend the blade using-life.
