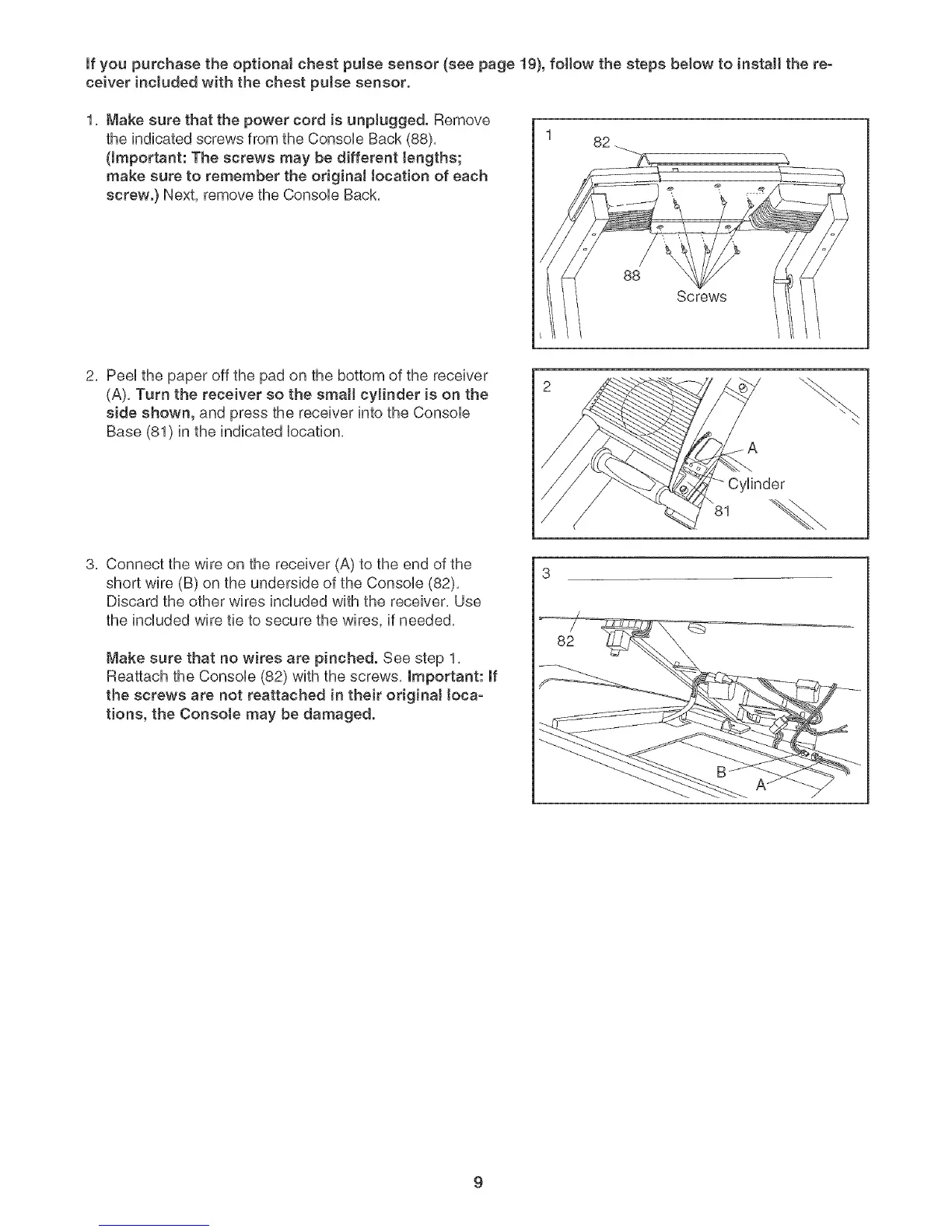

mfyoupurchasetheoptionalchestputsesensor(seepage19),followthestepsbelowtoinstallthere-
ceiverincludedwiththechestpulsesensor.
1, Makesurethatthepowercordis unplugged.Remove
theindicatedscrewsfromtheConsobBack(88),
(Important:Thescrewsmaybedifferentlengths;
makesureto remembertheoriginaltocationof each
screw.) Next, remove the Consob Back,
1 82
88
Screws
2, PeeUthe paper off the pad on the bottom of the receiver
(A), Turn the receiver so the small cylinder is on the
side shown, and press the receiver into the Consob
Base (81) in the indicated location,
3, Connect the wire on the receiver (A) to the end of the
short wire (B) on the underside of the Console (82),
Discard the other wires included with the receiver, Use
the included wire tie to secure the wires, if needed,
Make sure that no wires are pinched. See step 1,
Reattach the Console (82) with the screws, Important: If
the screws are not reattached in their odginaJ loca-
tions, the Consote may be damaged.
82
Cylinder
To Next Page
