12

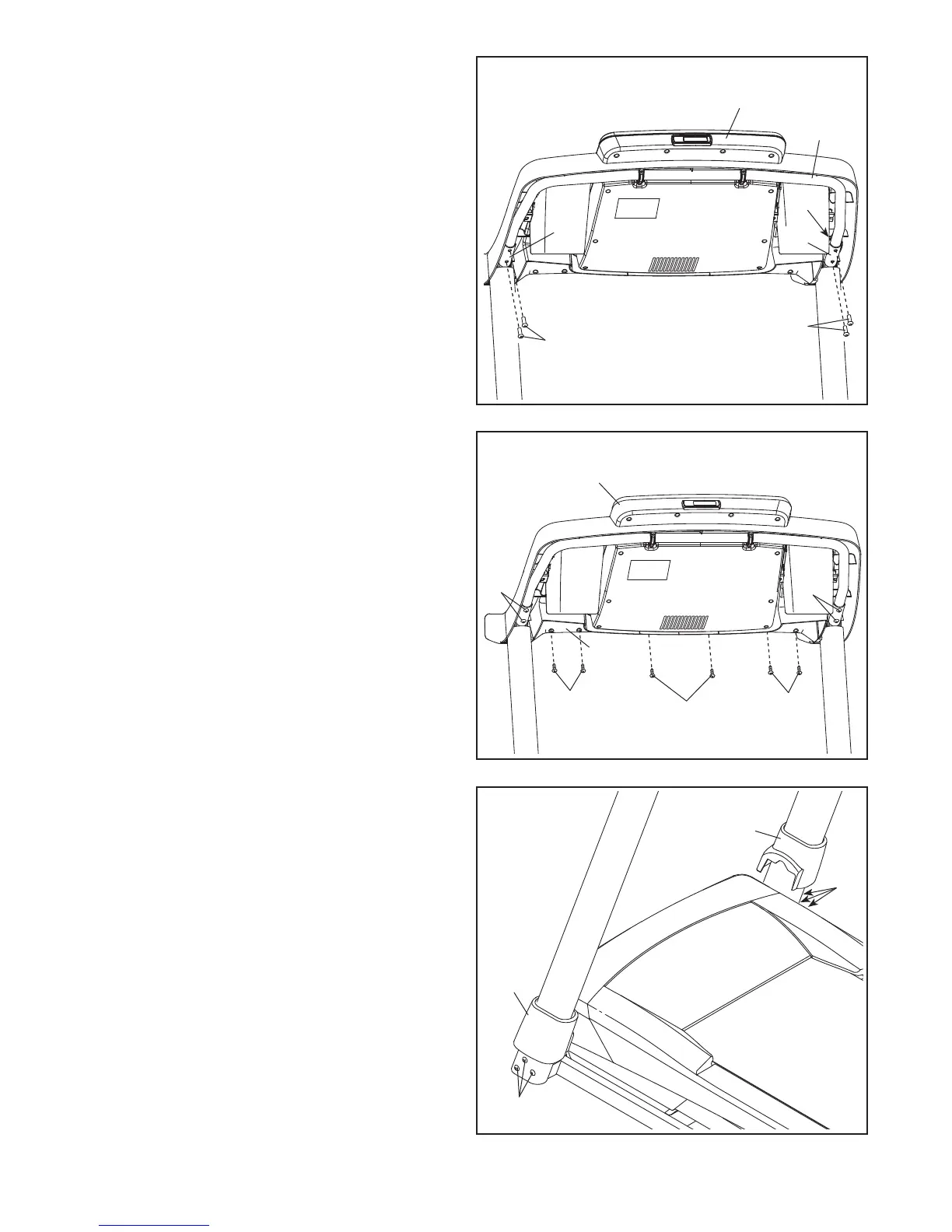

10. Set the console assembly on the Handrails (71).
Make sure that no wires are pinched. Insert
the excess Upright Wire (70) behind the Console
Frame (87).
Attach the console assembly to the brackets
on the Handrails (71) with the four 5/16" x 5/8"
Screws (7) that you removed in step 6. Do not
tighten the Screws yet.
10
71
Console
Assembly
7
7
70
71
87
11. Attach the Pulse Crossbar (31) to the console
assembly with six #8 x 1/2" Screws (9). Start all
six Screws, and then tighten them.
Firmly tighten the four 5/16" x 5/8" Screws (7).
12. Firmly tighten all six 3/8" x 4" Screws (4). Then,
slide the Left and Right Base Covers (73, 74)
down.
11
12
31
Console
Assembly
7
4
4
7
9
73
74
9
9
