5

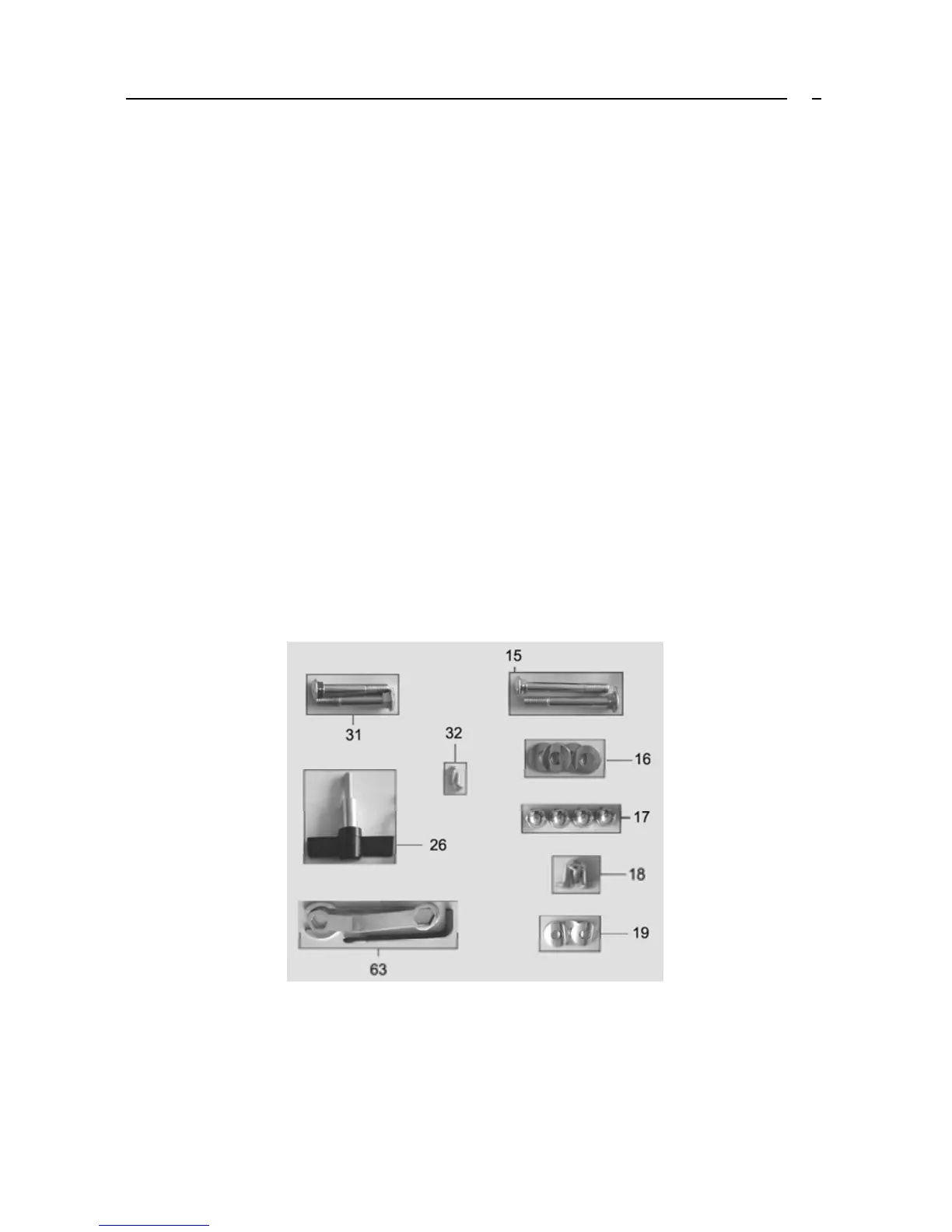

HARDWARE PARTS LIST
Key Description Quantity
15. Carriage Bolt M10*75 2
16. Curve Washer Φ10.5*Φ25*T1.5 4
17. Domed Nut M10 4
18. Allen Bolt M8*15 3
19. Curve Washer Φ10.5*Φ25*T1.2 3
26. T Type Knob 1
31. Carriage Bolt M10*60 2
32. ScrewΦ5*15 2
63. Box Wrench 13/17 1
63. Spanner 15 1
63. Allen Key L6 1
IF YOU’RE MISSING ANY PARTS PLEASE CALL TECHICAL SUPPORT ON
0871 474 2614 OR MAIL: techsupport@rfe.co.uk
