11

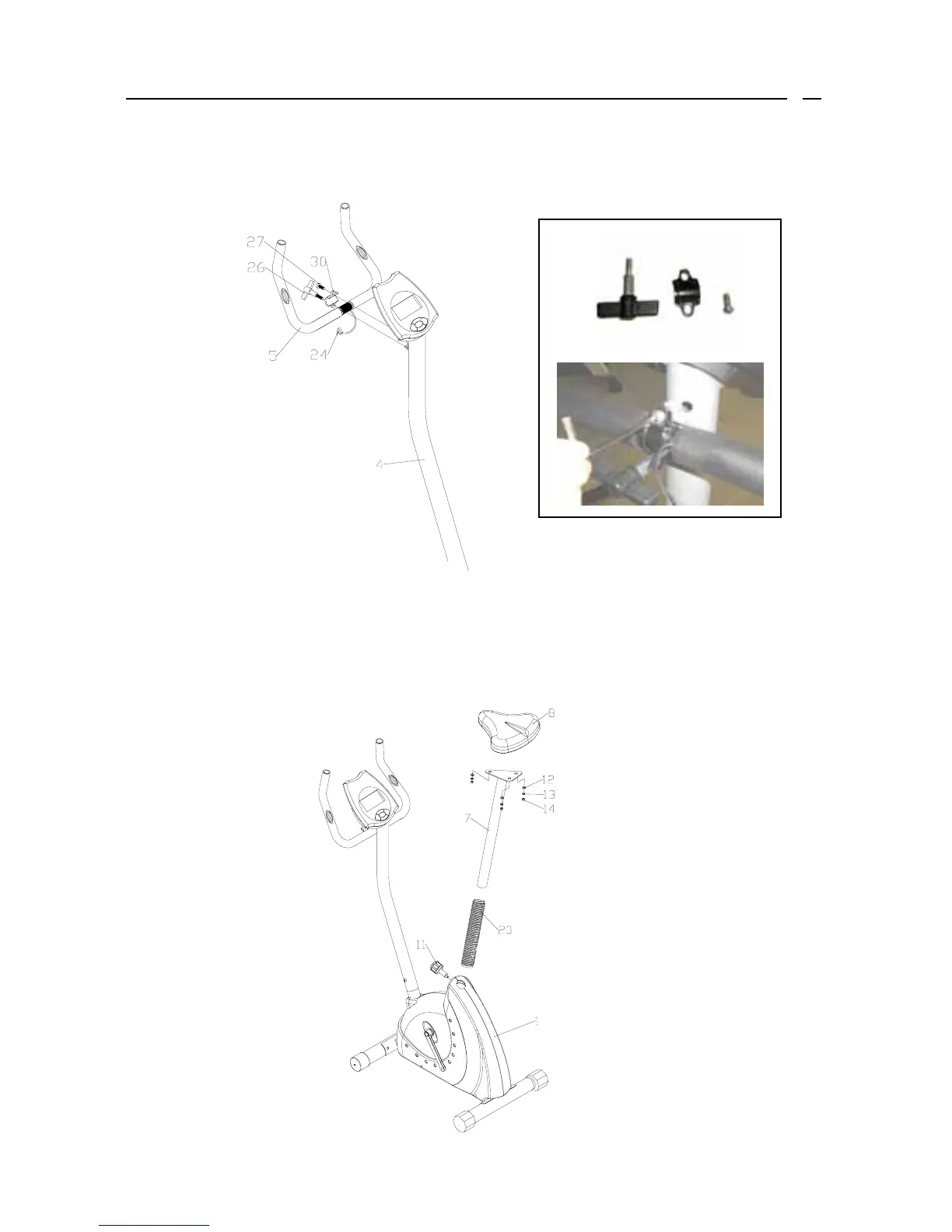

Step 3
Fix the Handlebar (5) to the Front Post (4) and tighten with x 1 Hex Bolt (27) on
Clamp (30),then T Knob(26). Plug Hands Pulse Wire (24) to the computer “pulse”
hole.
Step 4
To fix Saddle (8), turn saddle (8) upside down, fix the Seat Post (7) using x 3 Flat
Washer (12), Spring Washer (13) and Nylon Lock Nut (14), then insert into the
Saddle Stem Cover (20) and Main Frame (1). Line up the holes and secure the seat
in position with the Adjustment Knob (11). The Correct height for the seat can be
adjusted after the bike is fully assembled.
