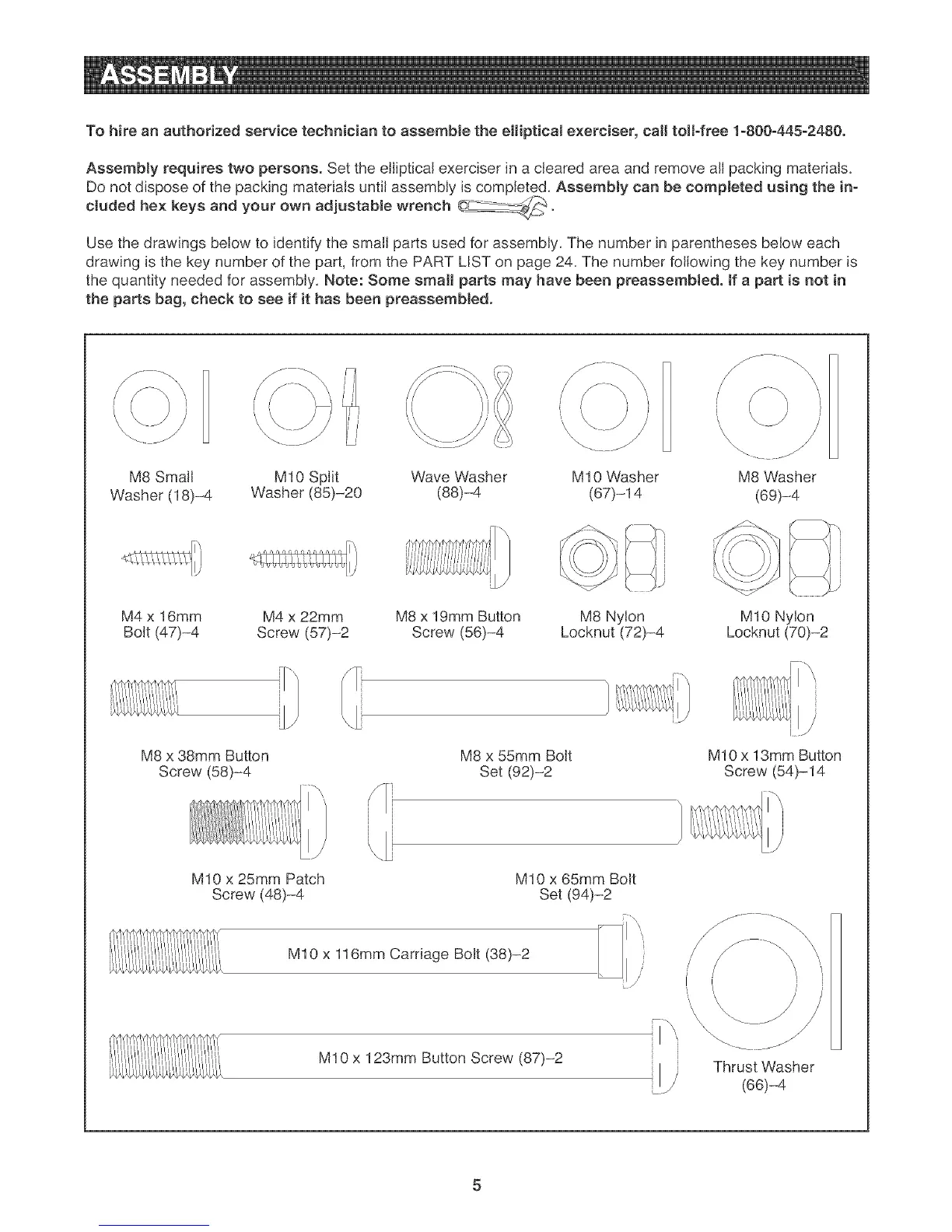

To hire an authorized service technician to assembte the elliptical exerciser, call toll°free 1=800-445°2480o
Assembly requires two persons. Set the elliptical exerciser in a cleared area and remove all packing materials.
Do not dispose of the packing materials until assembly is completed. Assembly can be completed using the in-
cluded hex keys and your own adjustable wrench _.
Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on page 24. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been preassembted, tf a part is not in
the parts bag, check to see if it has been preassembted.
\
M10 Washer
(67)-14
M8 Small M10 Split Wave Washer M8 Washer
Washer (18)-4 Washer (85)-20 (88)-4 (69)-4
M4 x 16mm M4 x 22mm M8 x 19mm Button M8 Nylon M10 Nylon
Bolt (47)-4 Screw (57)-2 Screw (56)-4 Locknut (72)-4 Locknut (70)-2
M8 x 38mm Button
Screw (58)-4
M8 x 55mm Bolt
Set (92)-2
M10 x 13mm Button
Screw (54)-14
M10 x 25mm Patch M10 x 65mm Bolt
Screw (48)-4 Set (94)-2
M10 x 116mm ( Bolt
/
//
L/
/ "\\
Thrust Washer
(66)-4
5
