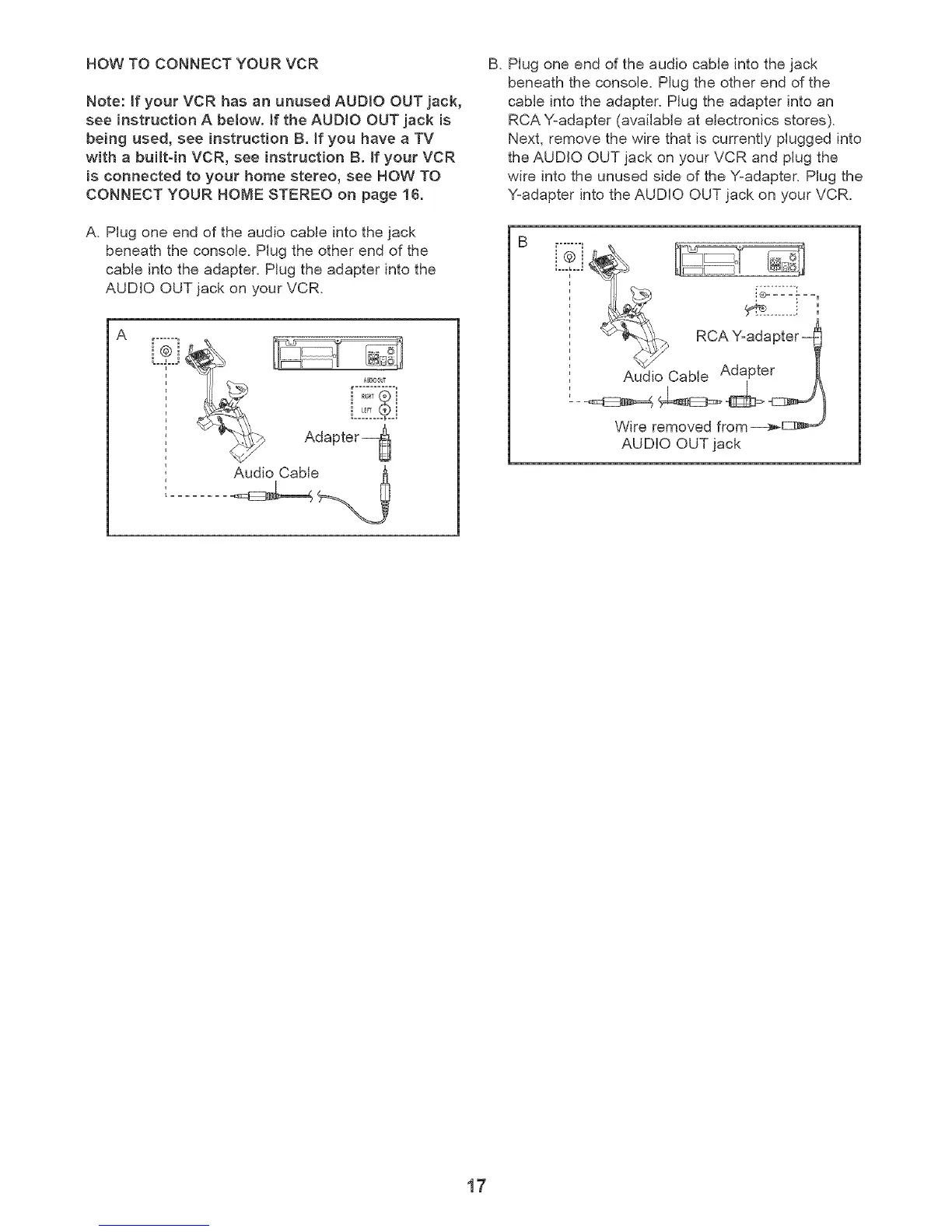

HOW TO CONNECT YOUR VCR
Note: ifyour VCR has an unused AUDIO OUT jack,
see instructionA below.JftheAUDIO OUT jack is
being used, see instruction B. If you have a TV
witha built-inVCR, see instructionB. If your VCR
isconnected toyour home stereo,see HOW TO
CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
A
ABel00UT
t ........... ,
RIGHT_
L_tT
Adapter_
........
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y=adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y=adapter. Plug the
Y=adapter into the AUDIO OUT jack on your VCR.
AUDIO OUT jack
17
