Placeallpartsof theexercisecycleina clearedareaandremovethepackingmaterials.Donotdisposeofthe
packingmaterialsuntilassemblyis completed.
Assemblyrequirestheincludedtoolsandyourownadjustablewrench_::_!t_.

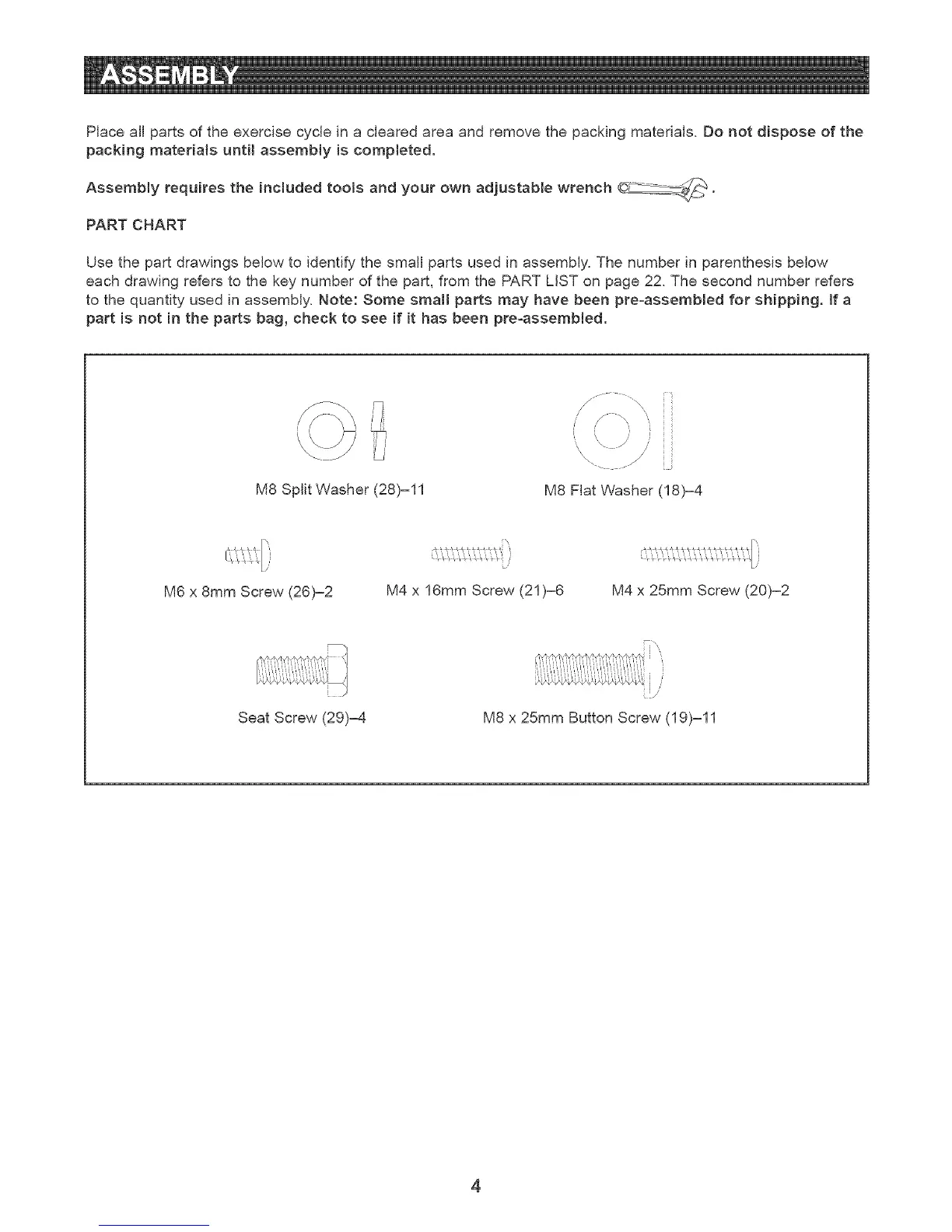

PARTCHART
Usethepartdrawingsbelowto identifythesmallpartsusedinassembly.Thenumberinparenthesisbelow
eachdrawingreferstothekeynumberofthepart,fromthePARTLISTonpage22.Thesecondnumberrefers
tothequantityusedinassembly.Note:Somesmaltpartsmayhavebeenpre°assembledforshipping.If a
partis notin thepartsbag,checkto seeif it hasbeenpre-assembled.
'\
M8 Split Washer (28)-11
/ f- "\
i i i, }
M8 Flat Washer (18)-4
M6 x 8mm Screw (26)-2
L,
M4 x 16mm Screw (21)-6 M4 x 25ram Screw (20)-2
Seat Screw (29)-4
: J
M8 x 25mm Button Screw (19)-11
