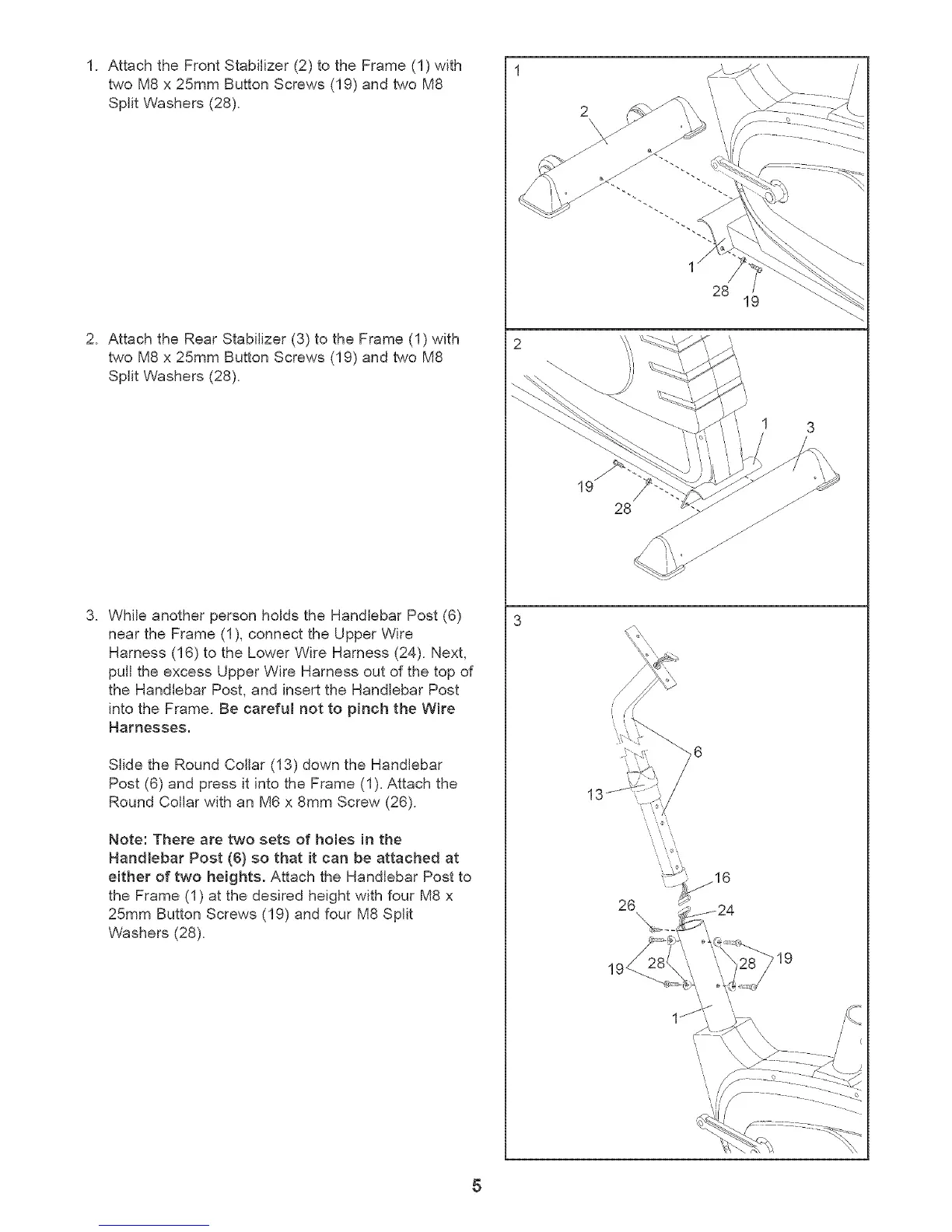

1. AttachtheFrontStabilizer(2)totheFrame(1)with
twoM8x25mmButtonScrews(19)andtwoM8
SplitWashers(28).
2. AttachtheRearStabilizer(3)totheFrame(1)with
twoM8x25mmButtonScrews(19)andtwoM8
SplitWashers(28).
3. WhileanotherpersonholdstheHandlebarPost(6)
neartheFrame(1),connecttheUpperWire
Harness(16)to theLowerWireHarness(24).Next,
pulltheexcessUpperWireHarnessoutofthetopof
theHandlebarPost,andinserttheHandlebarPost
into the Frame. Be careful not to pinch the Wire
Harnesses.
Slide the Round Collar (13) down the Handlebar
Post (6) and press it into the Frame (1). Attach the
Round Collar with an M6 x 8mm Screw (26).
Note: There are two sets of hotes in the
Handlebar Post (6) so that it can be attached at
either of two heights. Attach the Handlebar Post to
the Frame (1) at the desired height with four M8 x
25mm Button Screws (19) and four M8 Split
Washers (28).
\
\
2
J
28
19
/
28
6
13
/
5
