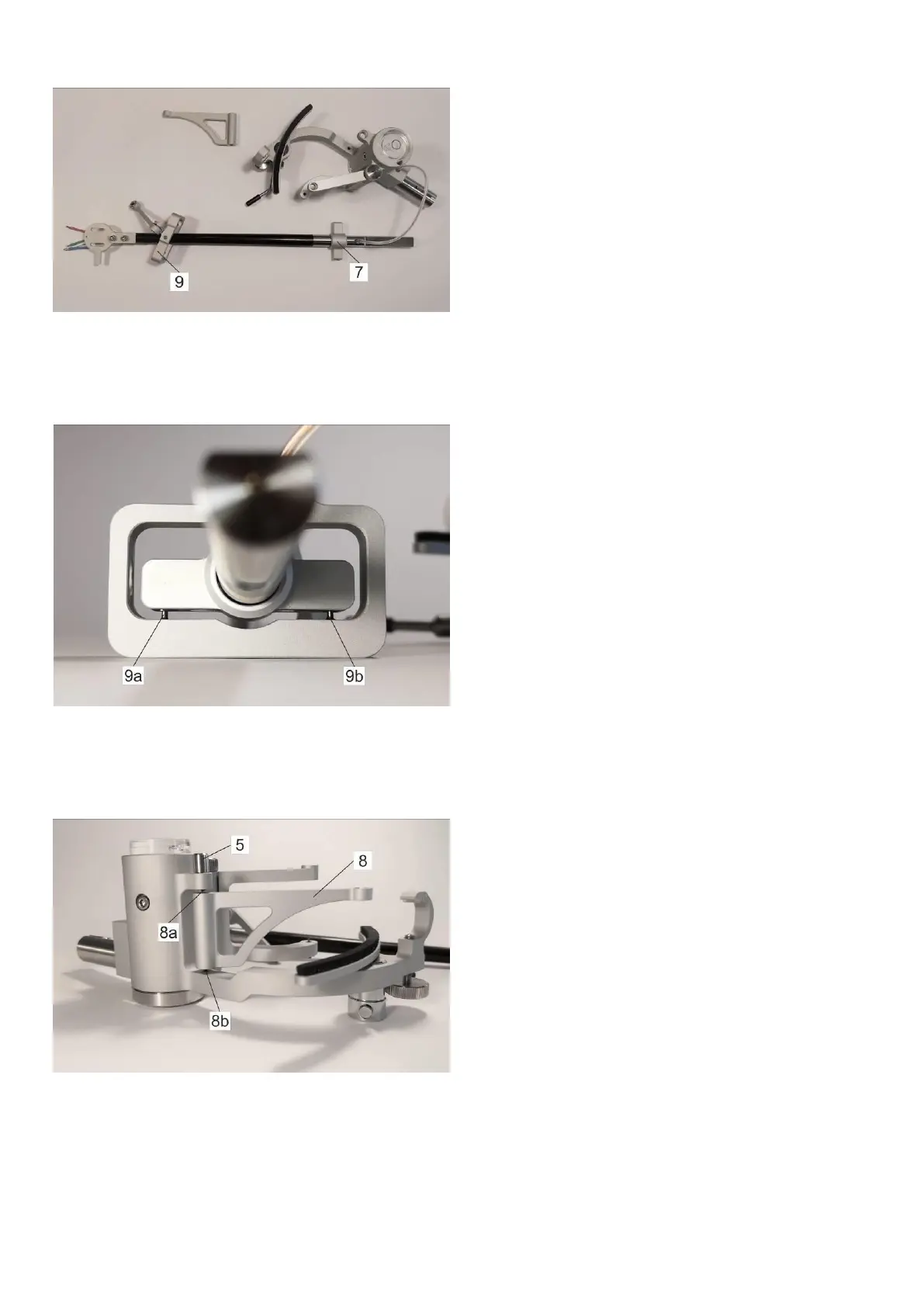

e) Take tonearm frame with lever [9] and put
it on armwand [7] so that the armwand
[7] passes through the tonearm frame [9]
(Figure 4).
f) Set armwand [7] on tonearm frame pivots
[9a] and [9b] and check if they are in
correct positions (Figure 5). Needle of the
bearing must be embedded in
sapphire V cup.
g) Take the hex (allen) key from accessories
[4] and top bearing [5] (Figure 2). Top
bearing must be screwed out of
bearing protection.
h) Set the front link [8] on a bottom bearing
of the front link vertical axis [8b] (Figure
6).
i) Screw in the top bearing [5] of the front
link [8] vertical axis and tighten it with
your fingers without applying excessive
force. Needle of the bearing must be
embedded in sapphire V cup. (Figure
6).
j) Check if the front link vertical axis bearings
[8a] and [8b] are in correct positions
(Figure 6).
