k) Take the hex (allen) key from accessories
[4] and top bearing [5] (Figure 2). Top
bearing must be screwed out of
bearing protection.

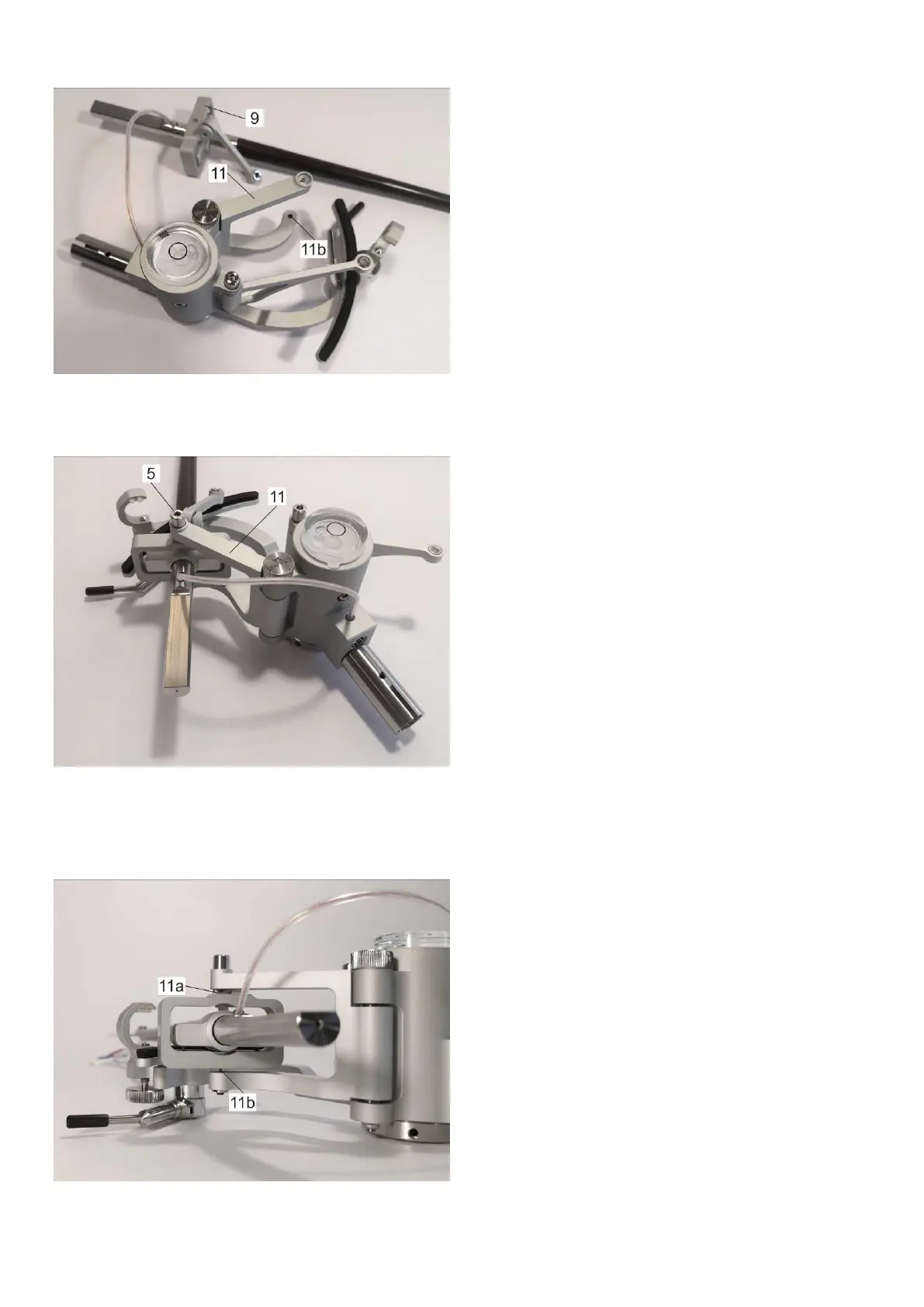

l) Take the tonearm frame with lever and
armwand [9] and set it on a bottom
bearing [11b] of the back link [11] vertical
axis (Figure 7). Needle of the bearing
must be embedded in sapphire V cup.
m) Screw in the top bearing [5] of the back
link [11] vertical axis and tighten it with
your fingers without applying excessive
force. Needle of the bearing must be
embedded in sapphire V cup. (Figure
8).
n) Check if the back link vertical axis bearings
[11a] and [11b] are in correct positions
(Figure 9). Needle of the bearing must
be embedded in sapphire V cup.
