Setting the steering linkage
When brake linings wear off, the lever travel that is necessary to apply
the brake shoes with sufficient pressure to the brake disks changes.

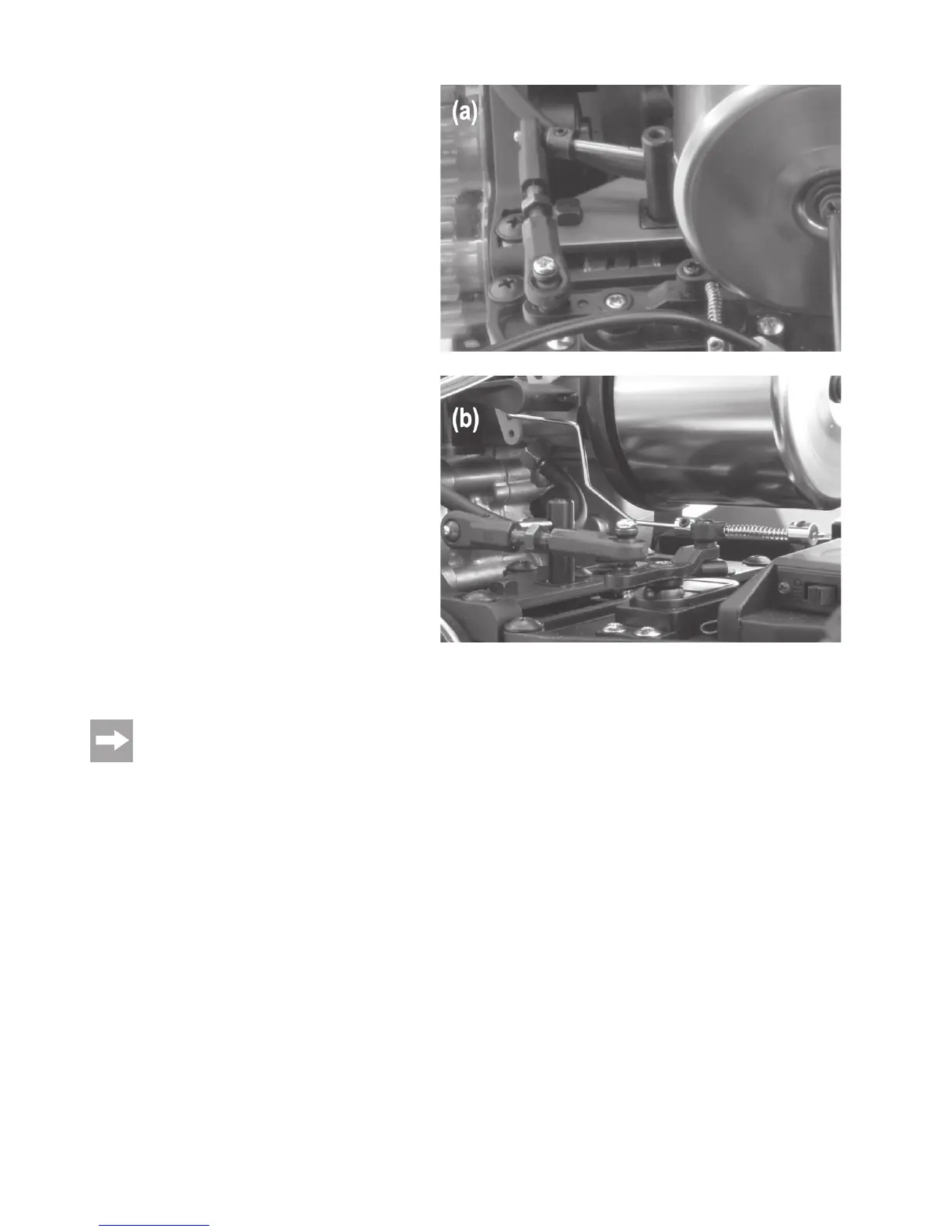

(a) Extend the brake linkage by twisting the tension screws to achieve
the desired brake effect.
Setting the throttle linkage
(b) Adapt the position of the adjuster ring on the throttle linkage to the full
throttle position of the carburettor slider and the servo lever.
Controlling the carburettor
The lever for the throttle valve on the carburettor has two holes for the servo wire.
The default position (servo wire close to the pivot point of the lever) is intended for fast reaction of the throttle lever to movements of the throttle
lever on the remote control.
If the second hole is used for the servo wire (the servo wire is farther away from the pivot point of the lever in this case), the rotation speed of the
engine can be fine-tuned (ideal for beginners).
