POSITIONING AND SAFETY DISTANCES
POSITIONING AND SAFETY DISTANCESPOSITIONING AND SAFETY DISTANCES
POSITIONING AND SAFETY DISTANCES
The emitter and the receiver unit must be installed in such a way that any
possible access to the danger zone leads to the occultation of at least one
beam of the ARGOLUX AS system. The detection zone defined by the
protection height and the scanning distance of the emitter and the receiver
must prevent any possible access from the top, the bottom or the sides. The
use of additional guards might be necessary (interlocked or fixed mechani-
cal guards or additional safety light curtain).
Safety distances.
Safety distances.Safety distances.
Safety distances.
The safety distance between the protection field and the danger zone (figure
7, page 18) should be large enough to ensure that if the protection field is
entered, the danger zone cannot be reached before the hazardous
movement has ended or is interrupted. For the safety distance S
SS
S, the EN 999
(Safety of machinary - The positioning of protective equipment in respect of

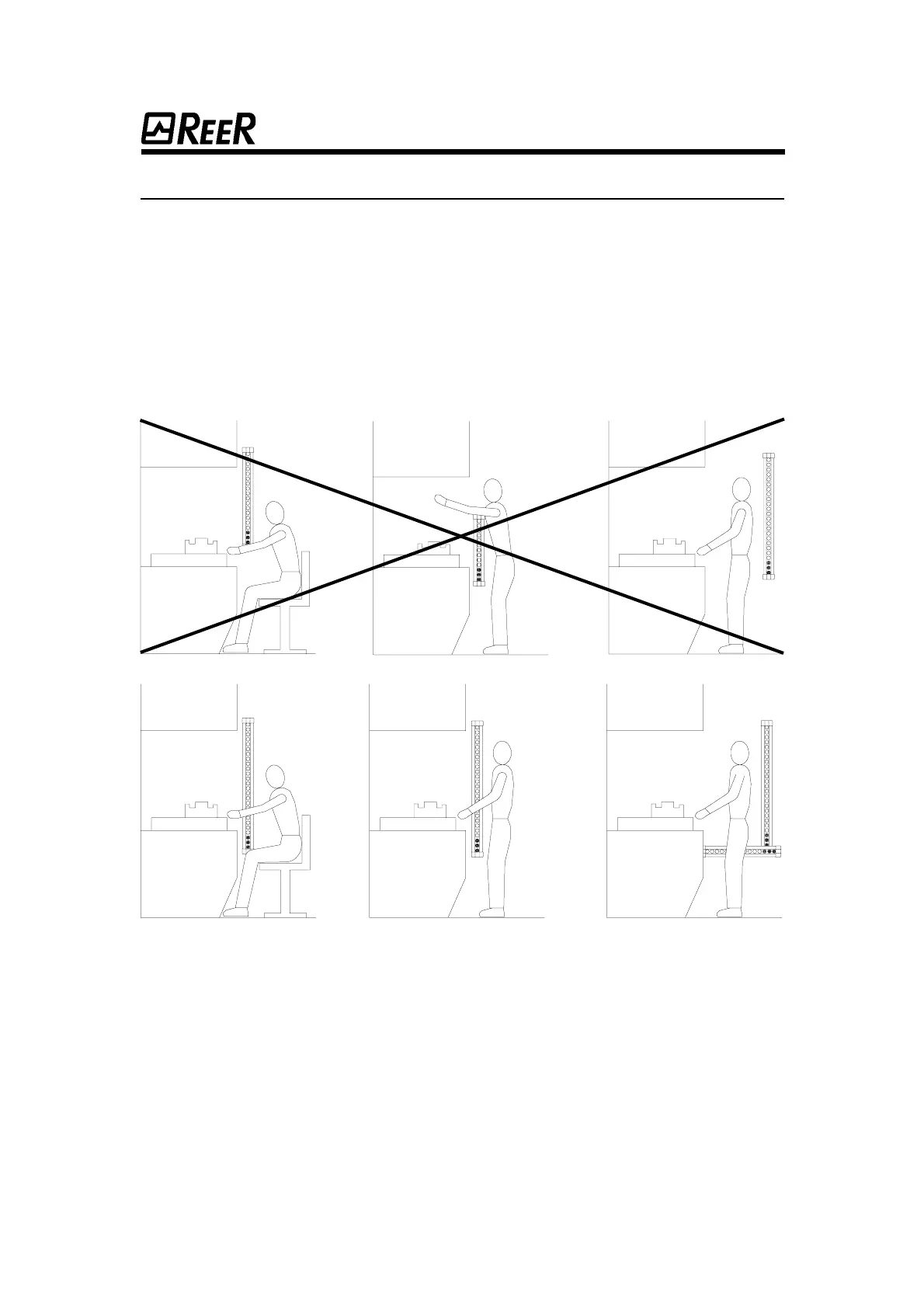

Access to the danger zone from
the bottom should not be pos-
sible without occulting the light
curtain.
Access to the danger zone
from the top should not be
possible without occulting the
light curtain.
Right-angle mounting: the hori-
zontal barrier detects the opera-
tor body presence between the
danger zone and the vertical
detection field.
17
1717
17
