DEFLECTION MIRRORS
DEFLECTION MIRRORSDEFLECTION MIRRORS
DEFLECTION MIRRORS
For the protection or control of dangerous zones with openings on several
sides, deflection mirrors can be used.
If emitted light must be deflected with a 90° angle, the mirrors surface and
the beam’s path must form a 45° angle.
The figure below shows an application using 2 deflection mirrors in a "U"
shape configuration.
Instructions for mirrors use:
• Mirrors should be installed in such a way that the minimum
calculated safety distance S is achieved on each side of the
perimeter (see figure 14).
• Total lenght of the perimeter should be smaller or equal to the
scanning range taking into account the attenuation due to mirrors
(expect a 10% decrease on the scanning range per added mirror).
• Optical alignment of the emitter unit, the receiver unit and mirror(s)
must be carefully carried out.
• It is recommended to use a maximum of 3 mirrors.

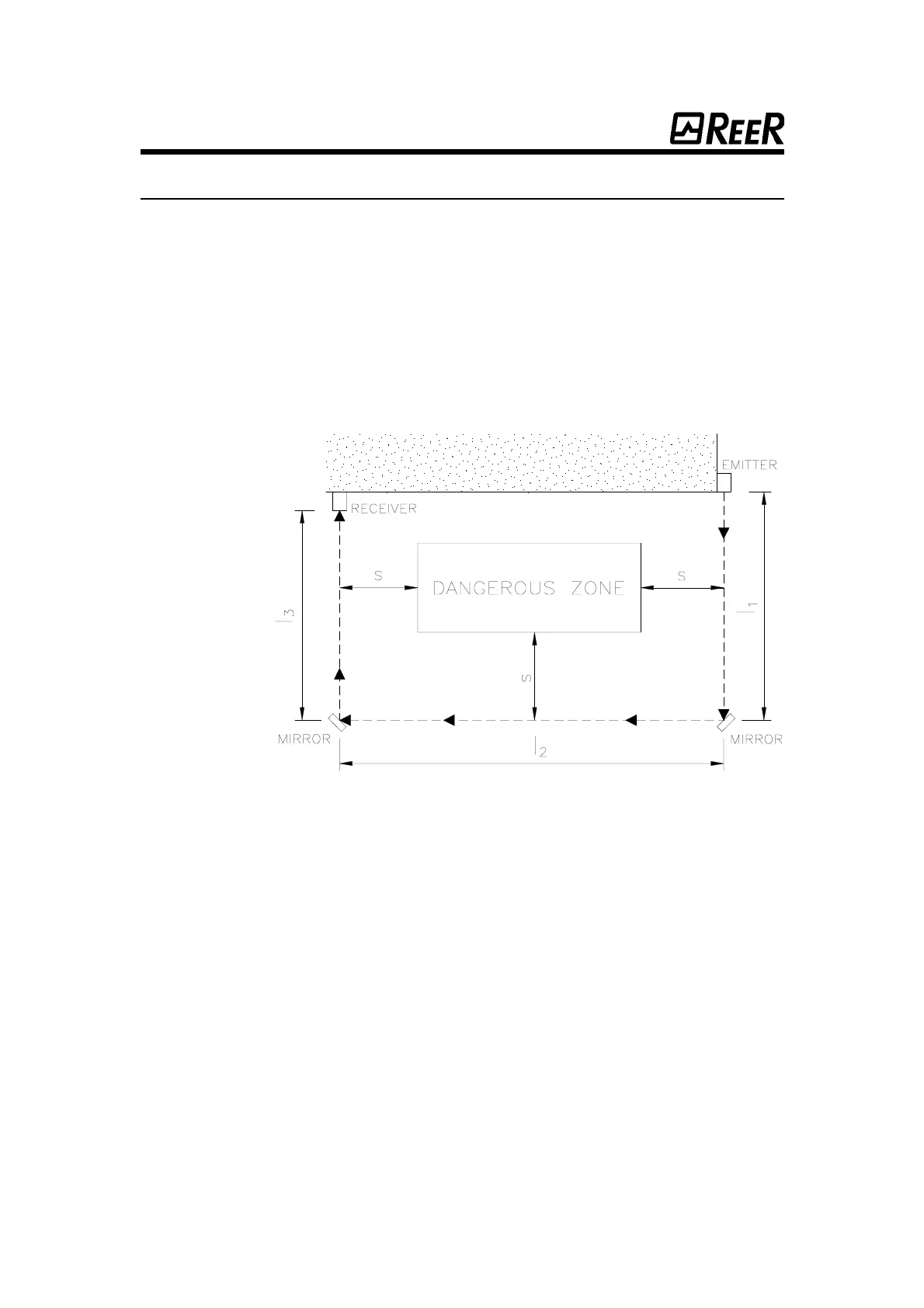

Fig. 14
Fig. 14Fig. 14
Fig. 14
Use of two deflection mirrors.
Use of two deflection mirrors.Use of two deflection mirrors.
Use of two deflection mirrors.
24
2424
24
