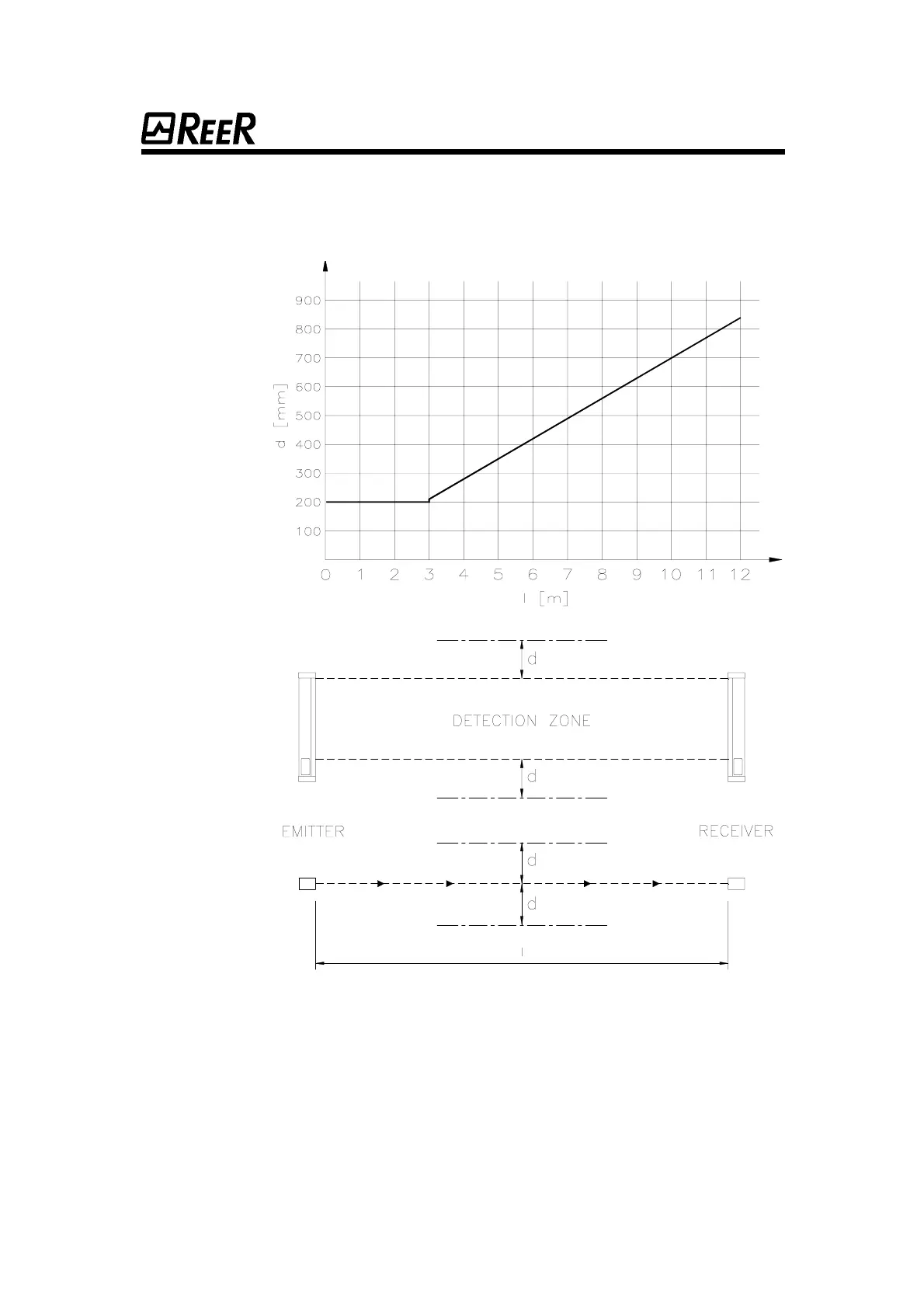

For a distance l between the emitter and the receiver, the figure 13 gives
values for d.
Just after the installation, check the absence of any reflecting surface using
the test rod delivered with the safety barrier. If no light is deflected, the test
rod should be continuously detected all over the detection field.
The red LED of the receiver unit should never switch off while the test rod is
being moved in the central area of the detection field and near the emitter
and receiver units.
Fig. 13
Fig. 13Fig. 13
Fig. 13
The reflective surfaces must be at a distance
The reflective surfaces must be at a distance The reflective surfaces must be at a distance
The reflective surfaces must be at a distance
≥
d.
d.d.
d.
23
2323
23
