Reer MINERVA User Manual

6
INDICATORS
COLOUR STATUS INDICATION
Yellow Off Beam emitted
EMITTER
Yellow Eteinte No beam
Two-colour Green ON
Controlled area
is free
RECEIVER
Two-colour Red ON
Controlled area
is obstructed
TECHNICAL DATA
MODEL MNE-EMITTER MNR-RECEIVER
Effective capacity m 0 ÷ 8
Minimum item detectable m
m
12
Immunity to ambient light lx > 10000 (solar)
emission angle ±4°
Emission nm 880 (modulated infrared)
Reaction time
ms
≤ 7
Power supply Vdc 24 ± 20%
Input power at 24 Vdc W 0,7 0,4
Output NPN 100mA max,
Light on
Connections M12 connector
Operating temperature °C 0 ÷ 55 (with no condensate and no frosting)
Degree of protection IP 65
Width 20
Dimensions Depth m
m
51
Height 80
Weight g 65

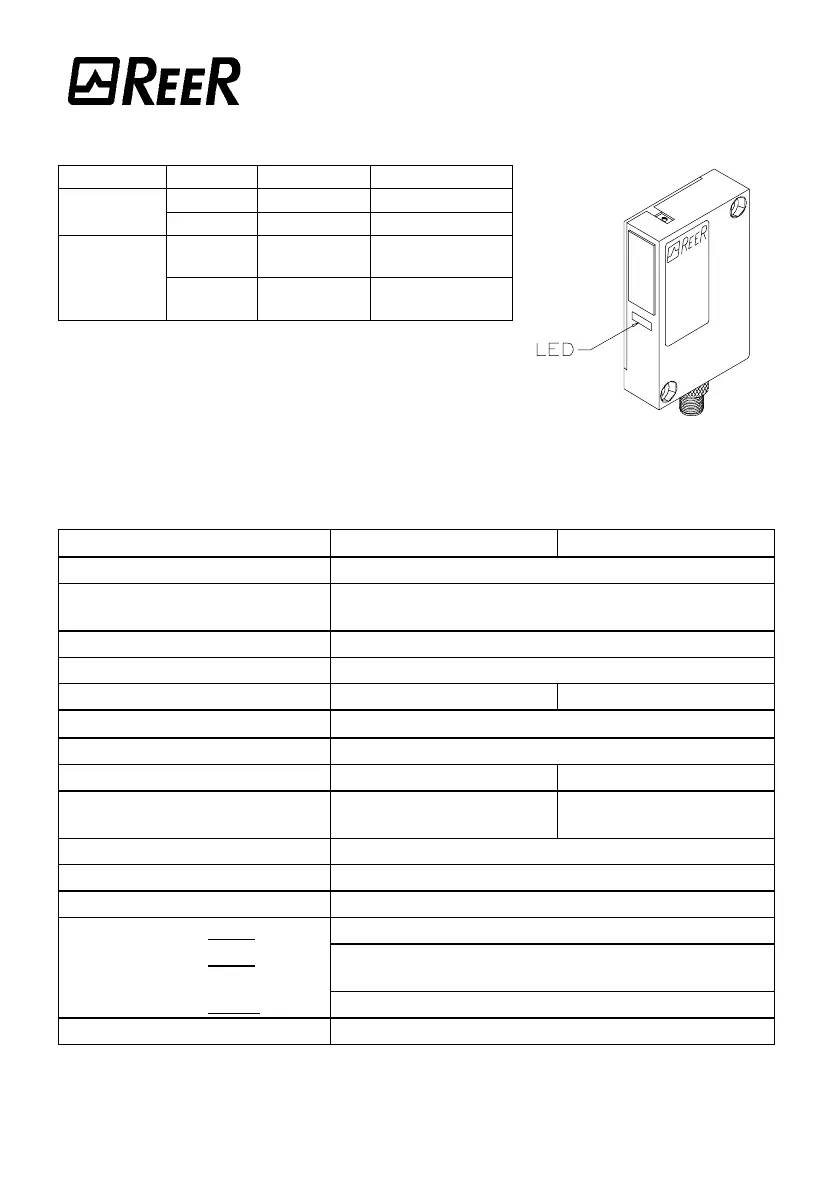

Figure 1

Reer MINERVA Specifications
