Reer MOSAIC MR4 User Manual

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
24 8540780 • 07/05/2018 • Rev.33
English

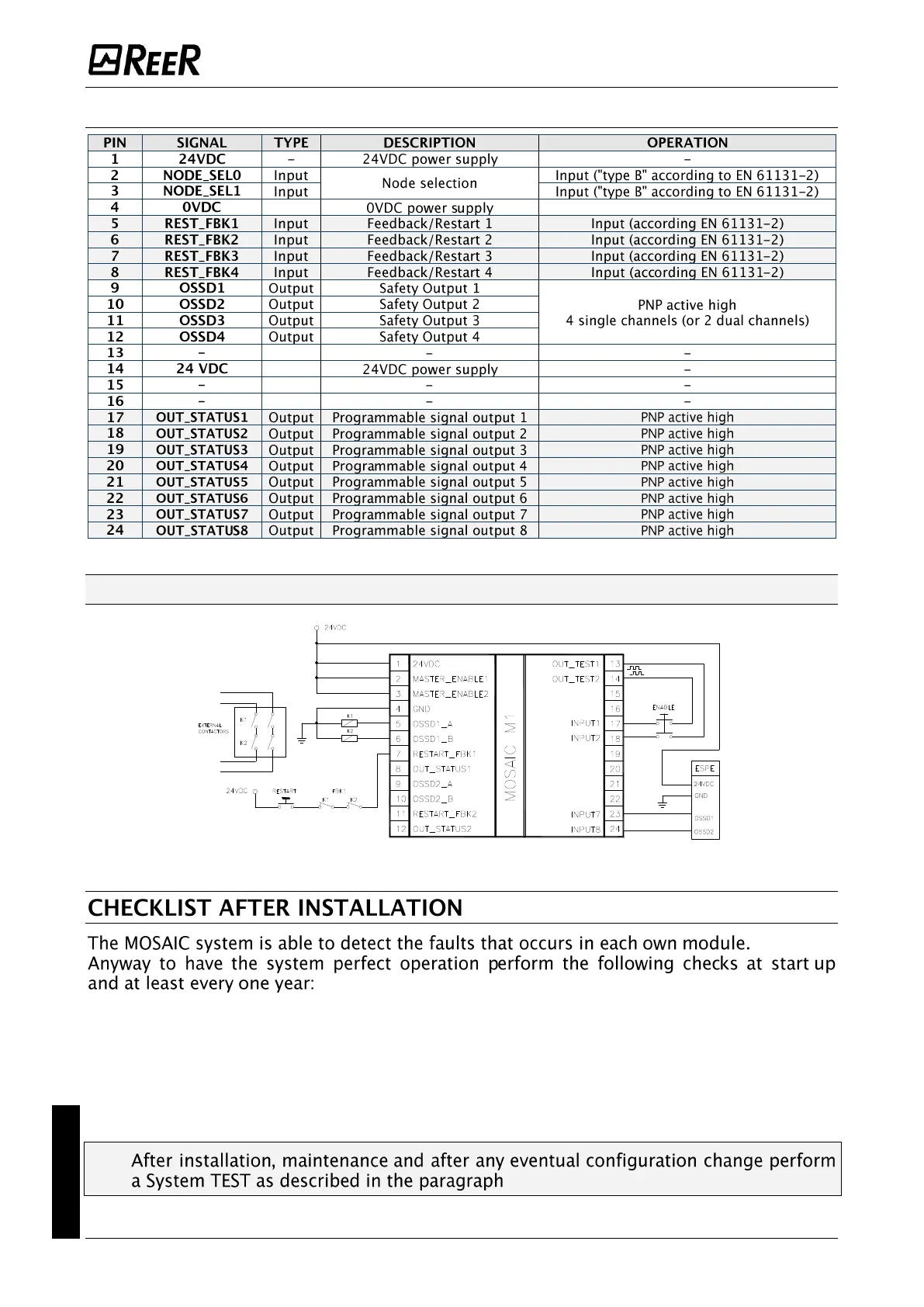

Module MO4LHCS8
Example of connection of Mosaic to the machine control system
Figure 4
1. Operate a complete system TEST (see "TESTING the system")
2. Verify that all the cables are correctly inserted and the terminal blocks well screwed.
3. Verify that all the leds (indicators) light on correctly.
4. Verify the positioning of all the sensors connected to MOSAIC.
5. Verify the correct fixing of MOSAIC to the Omega rail.
6. Verify that all the external indicators (lamps) work properly.

"TESTING the system" at page 80.

Reer MOSAIC MR4 Specifications

General

Operating voltage	24 VDC
Protection class	IP20
Safety standard	EN ISO 13849-1, EN 62061
Safety integrity level	SIL 3
Communication interfaces	Ethernet, CANopen
Programming	Graphical programming
