Reer VISION VX User Manual

8540571 - 25/08/2016 - Rev.15 11
ELECTRICAL CONNECTIONS
WARNINGS
Before making the electrical connections, make sure that the supply voltage complies with
that specified in the technical data sheet.
 Emitter and Receiver units must be supplied with 24Vdc±20% power.
 The external power supply must comply with the standard EN 60204-1.
The electrical connections must be made according to the diagrams in this manual. In
particular, do not connect other devices to the connectors of the Emitter and Receiver.
For reliability of operation, when a diode jumper supply unit is used, its output capacity must
be at least 2000µF for each absorbed A.

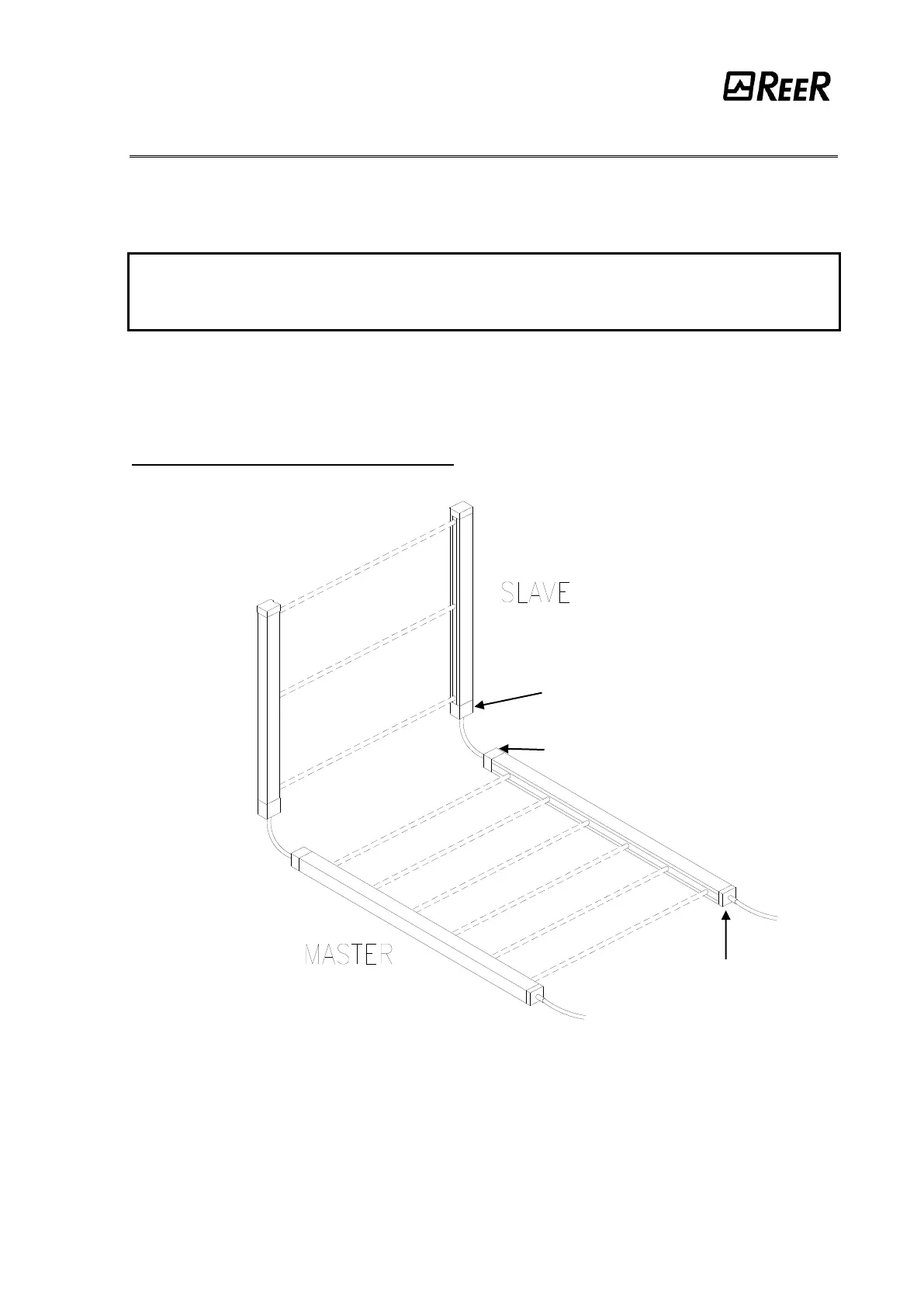

MASTER/SLAVE CONNECTORS LOCATION
Figure 10
SLAVE CONNECTOR
SECONDARY MASTER CONNECTOR
PRIMARY
MASTER
CONNECTOR
