Reer VISION VX User Manual

8540571 - 25/08/2016 - Rev.15 13

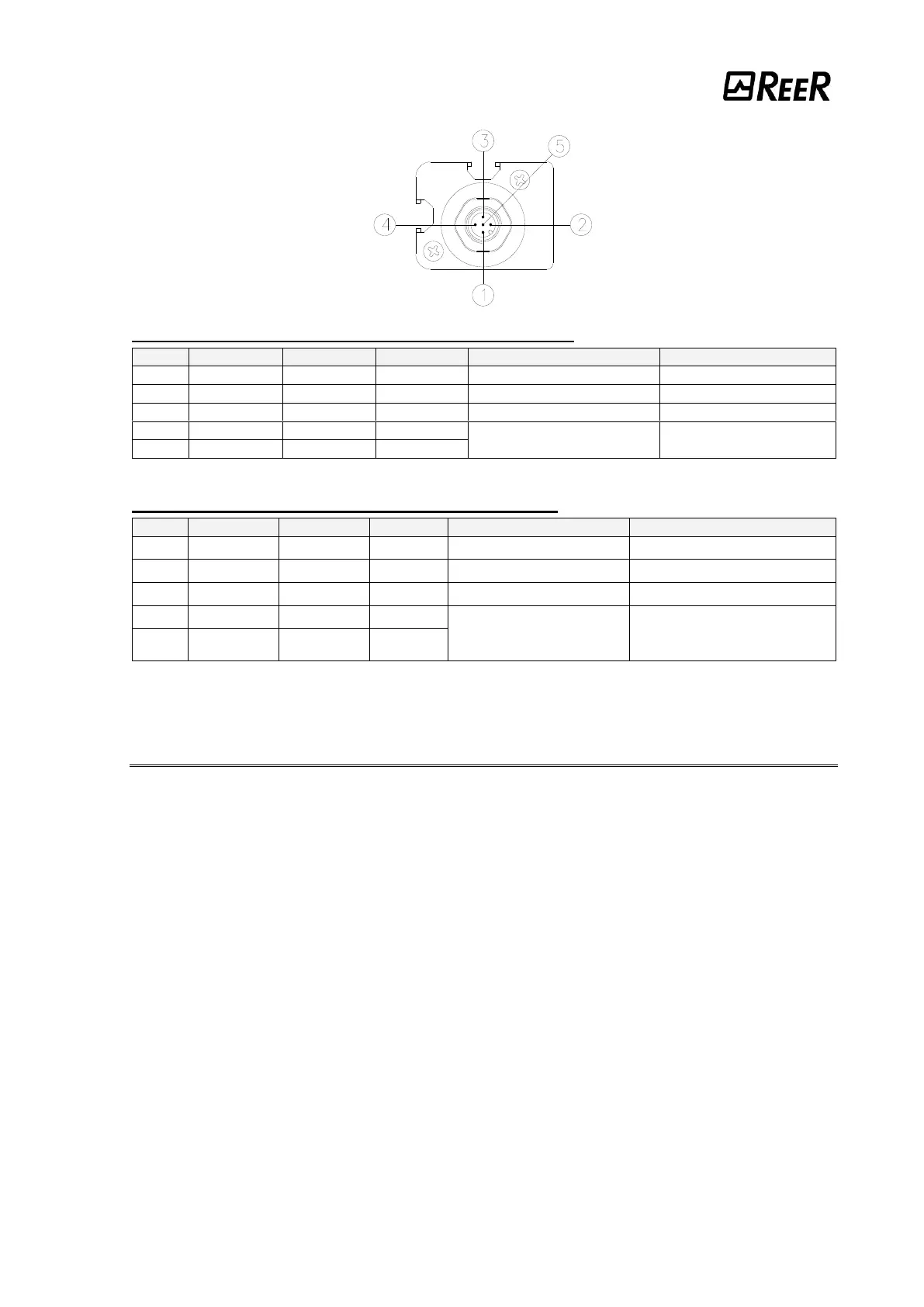

VXS (Slave models) - 5 poles M12 connector (power-supply)
PIN
COLOR
NAME
TYPE
DESCRIPTION
FUNCTIONING
1
Brown
24VDC
-
+24 VDC power supply
-
3
Blue
0VDC
-
0 VDC power supply
-
5
Grey
PE
-
Ground connection
-
2
White
OSSD1
OUTPUT
Safety static outputs
PNP active high
4
Black
OSSD2
OUTPUT
Table 4
VXM (Master models) - 5 poles M12 Secondary connector.
PIN
COLOR
NAME
TYPE
DESCRIPTION
FUNCTIONING
1
Brown
24VDC
-
+24 VDC power supply
-
3
Blue
0VDC
-
0 VDC power supply
-
5
Grey
PE
-
Ground connection
-
2
White
SLAVE1
INPUT
Slave OSSD outputs
readout
According the normative
EN61131-2
(PNP active high)
4
Black
SLAVE2
INPUT
Table 5
WARNINGS REGARDING THE CONNECTION CABLES
 For connections over 50 m long, use cables with a cross-section area
of 1 mm
2
.
 The power supply to the barrier should be kept separate from that to other
electric power equipment (electric motors, inverters, frequency converters) or
other sources of disturbance.
 Connect the Emitter and the Receiver to the ground outlet.
 The connection cables must follow a different route to that of the other power
cables.
