Reer VISION VX - Master-Slave Connection: Manual Mode with External Contactors

8540571 - 25/08/2016 - Rev.15 15

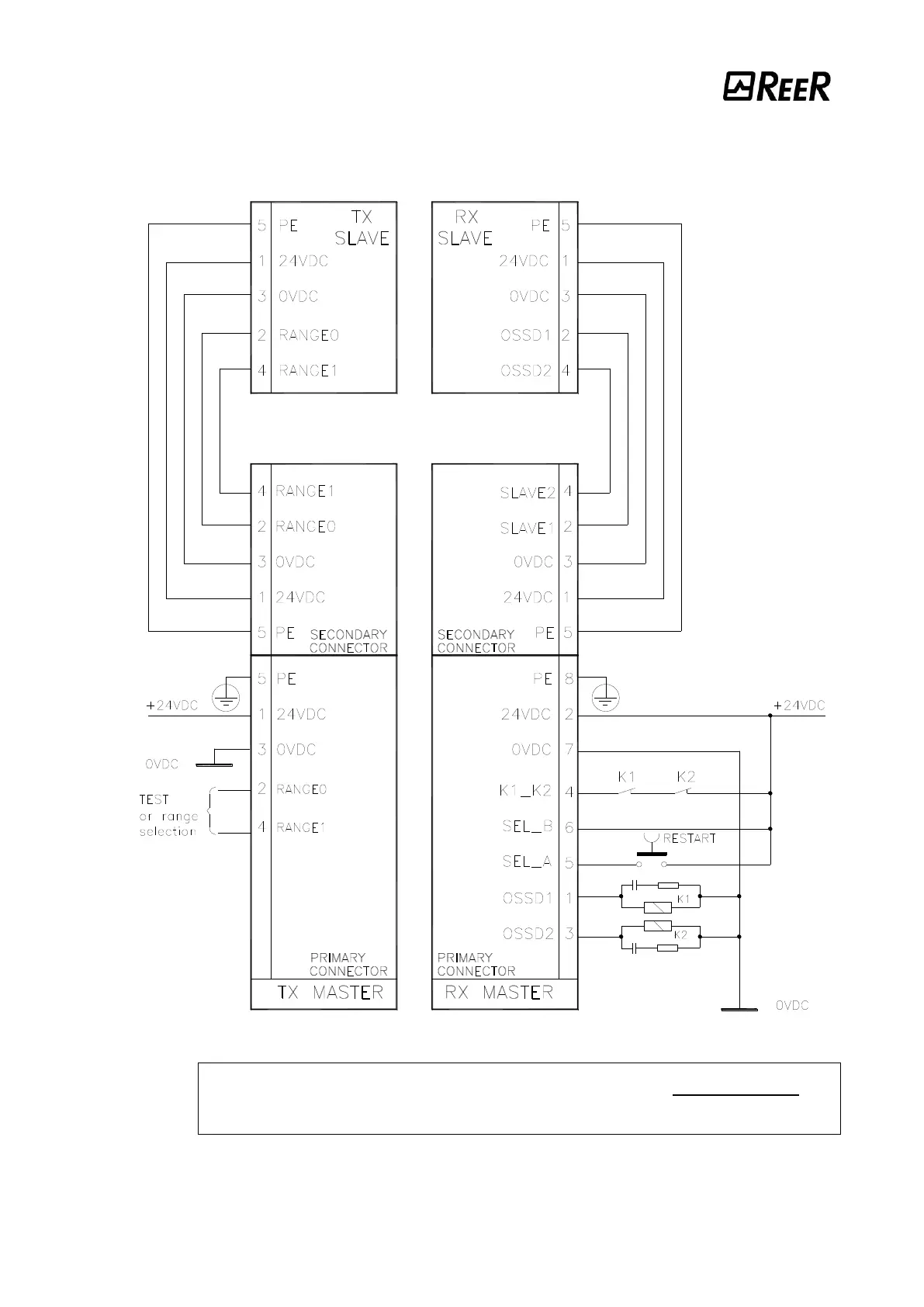

Example of MASTER-SLAVE connection in
MANUAL mode with external contactors K1-K2
Figure 12
 In order to assure a correct barrier operation, it is necessary to
connect the pins 2 and 4 of the Emitter according to table 2 (page 11) and
to the "TEST FUNCTION" paragraph of page 25.
(Ref. Table 2
Page 11)
