Reer VISION VX - Configuration and Operation Modes; Automatic Mode; Manual Mode

18 8540571 - 25/08/2016 - Rev.15

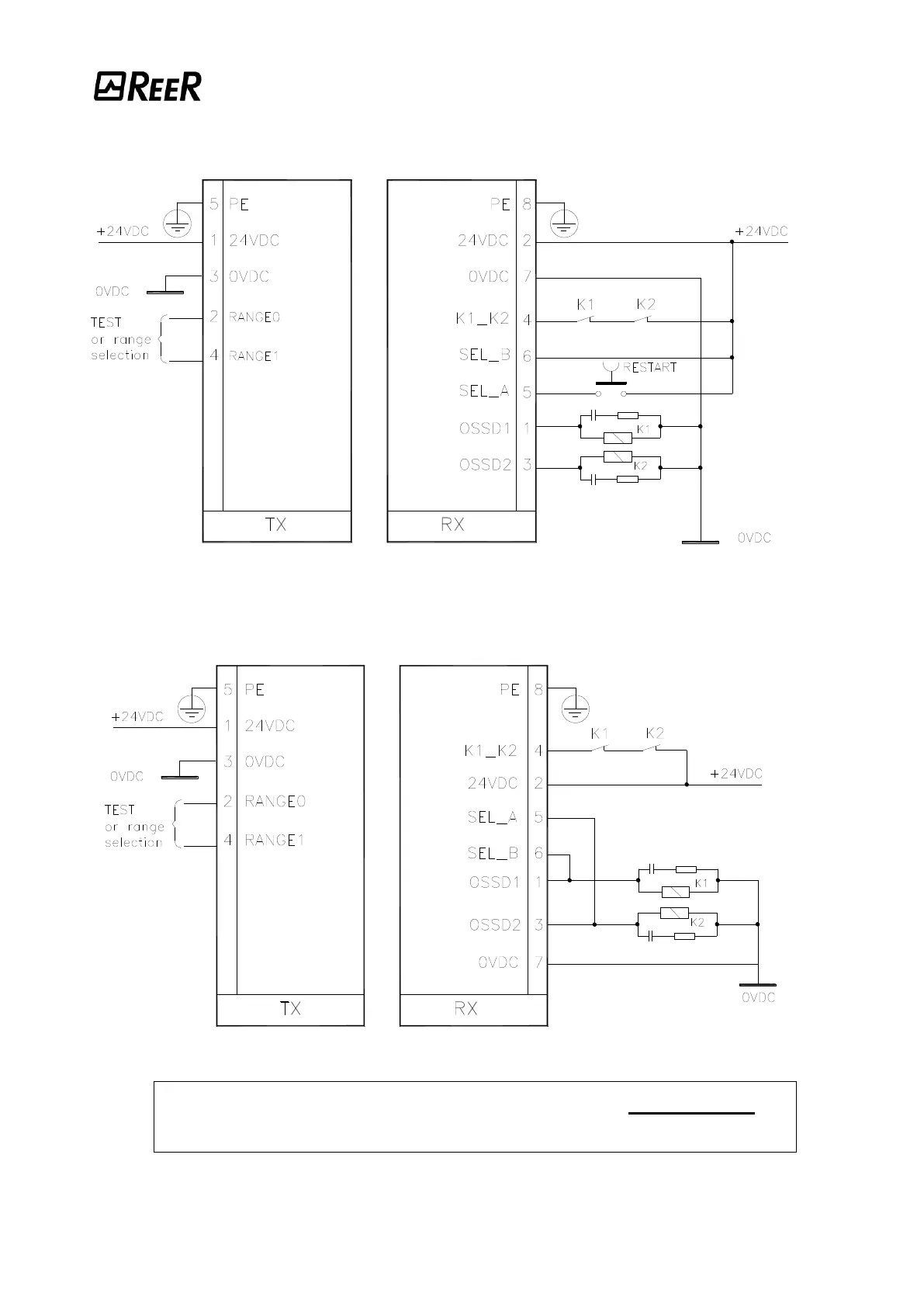

Example of connection in MANUAL mode
with external contactors K1-K2
Figure 15
Example of connection in AUTOMATIC mode
with external contactors K1-K2
Figure 16
 In order to assure a correct barrier operation, it is necessary to
connect the pins 2 and 4 of the Emitter according to table 2 (page 11) and
to the "TEST FUNCTION" paragraph of page 25.
(Ref. Table 2
Page 11)
(Ref. Table 2
Page 11)
