RefPlus Opti-Mist Plus - Piping Diagram; Typical Piping Layout

18
R

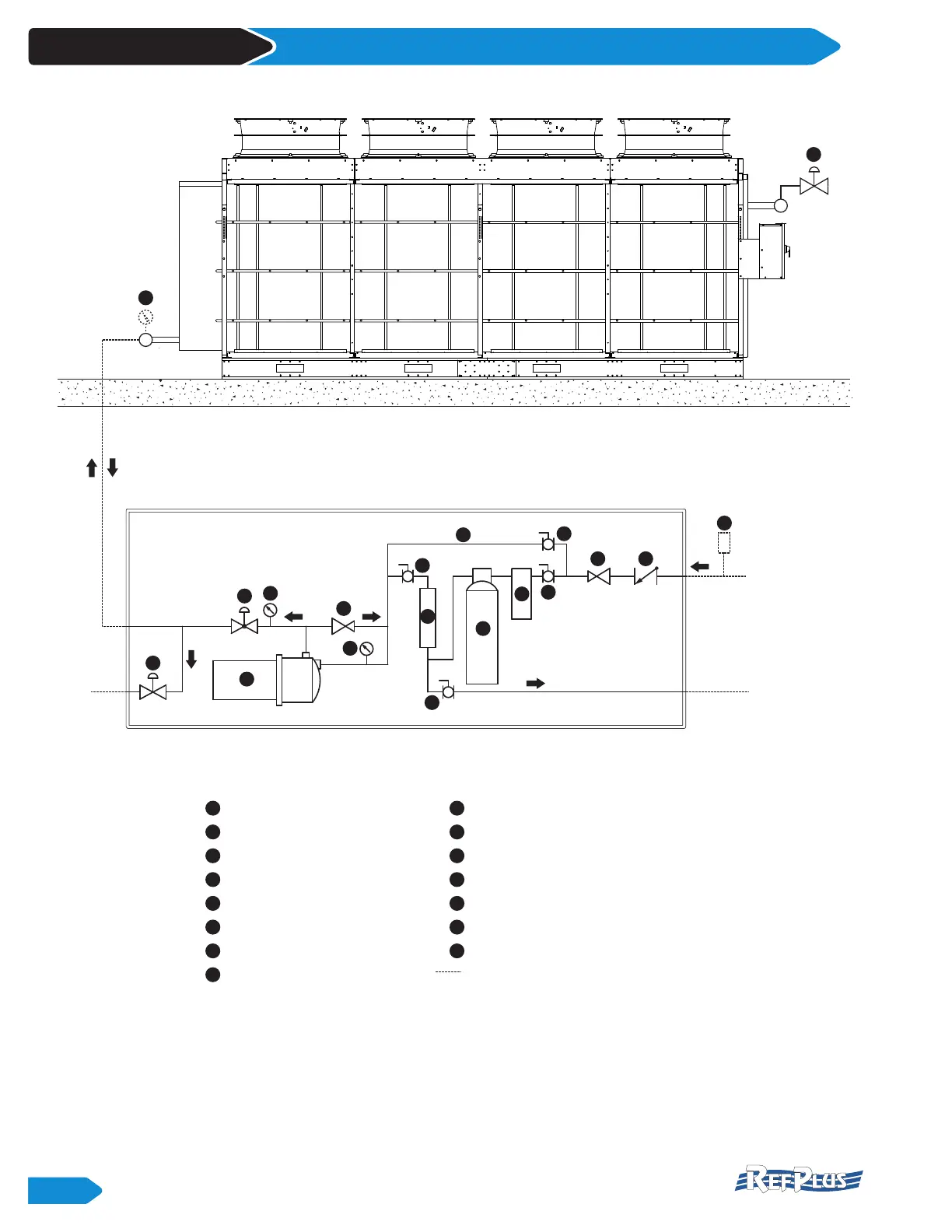

piping diAgrAm
TYPICAL PIPING DIAGRAM
A
A
A
A
A
L M
Q
N
P
B
C
K
D
E
F
G
G
H
J
MANUAL VALVE
B
WATER FILTER
C
DEMINARILIZER
D
UV LAMP
E
PRESSURE REGULATING VALVE
F
PULSING VALVE
G
PRESSURE GAUGE
H
WATER PUMP
J
SOLENOID VALVE
K
MANUAL BY-PASS
L
PRESSURE REDUCING VALVE
M
CHECK VALVE
N
PRESSURE GAUGE ACCESS 1/4 FPT (GAUGE BY OTHER)
P
AIR VENT SOLENOID VALVE
Q
PESSURE SWITCH (BY OTHER)
PIPING BY OTHER (FIELD INSTALLED)
WATER INLET
(CITY WATER)
WATER
SUPPLY
TO UNIT
DRAIN
TO DRAIN
TO DRAIN
PUMPING STATION AND TREATMENT CABINET
WITH CITY WATER CONNECTION
N/C
N/ON/O
N/C
N/C
