REFERENCE ONLY
NOTES:
1. BATTERY CABLES TO BE INSTALLED AS SHOWN.
2. BATTERY CABLES TO BE SECURED EVERY 18" MAX.
3. INSTALL CHAFE PROTECTION AS NEEDED.
4. RED BATTERY INSULATOR BOOTS REQUIRED AT
BOTH STARTER POSITIVE AND BATTERY
POSITIVE CONNECTION POINTS.
REVISION:
ALL RIGHTS RESERVED
DWG. NO.:
PROPRIETARY A ND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE S OLE PROPERTY OF REGAL MARINE
INDUSTRIES. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT THE WRITTEN
PERMISSION OF REGAL MARINE INDUSTRIES IS PROHIBITE D.
2300 JETPORT DRIVE
ORLANDO, FLORIDA 32809
TEL (407) 851-4360
REGAL MARINE INDUSTRIES
Mike B.
JAH EFP22C
APPROVED BY:
-
PAGE:

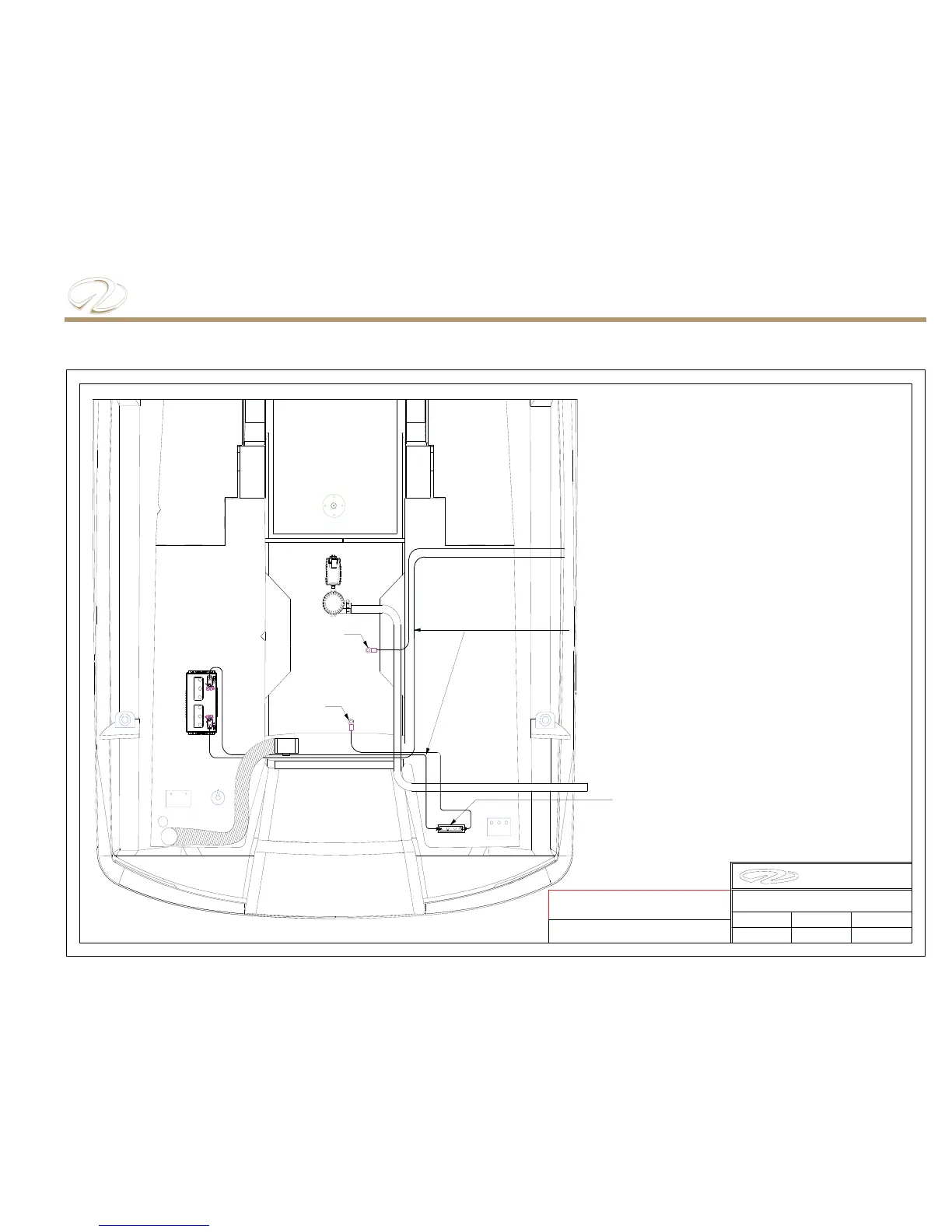

2000 (FP) Battery Cable Routing
DATE:
02/21/14
DRAWING TITL E:
1 OF 1
DRAWN BY:
ROUTE TO ENG
GROUND STUD
ROUTE TO ENG
STARTER
POS TERMINAL.
SEE NOTE 4.
ENG STARTER POS
BATTERY POS
ROUTE TO BATTERY
POS & NEG TERMINALS.
SEE NOTE 4.
MAIN DC
GROUND BUSS
