Chapter 8
RECOMMENDED MAINTENANCE PROCEDURES-VOLVO IPS DRIVE UNIT
Volvo IPS- Drine Unit Overview
The IPS drive unit is hydraulic which means that forward
and reverse gears are achieved by using hydraulic fl luid and
a series of solenoid valves along with an oil cooler and oil
fi lter located on the drive unit.
The drive unit is protected against galvanic corrosion by
sacrifi cial anodes and ground straps. These ground straps
maintain a ground connection between the different
components of the drive unit.
Volvo IPS- Checking The Drive Unit Oil
TO AVOID POSSIBLE DRIVE UNIT
COMPONENT DAMAGE
DUE TO GALVANIC CORROSION
CHECK THE GROUND STRAPS
ON A YEARLY BASIS.
NOTICE
Open the oil fi ller cap slowly to relieve pressure on the
top of the drive unit. Turn the dipstick counterclockwise
to remove it. Wipe the dipstick with a clean, dry cloth.
Reinstall it in the drive unit and turn until tight.
Remove the dipstick again and check the oil level. It must
be inside the marked area.
If necessary, top off the oil by pouring into the fi ll hole.
TO OBTAIN A CORRECT DRIVE UNIT OIL
READING THE DRIVE UNIT MUST BE SHUT
DOWN FOR AT LEAST 12 HOURS.
NOTICE
TO AVOID DRIVE UNIT DAMAGE
NEVER OVERFILL THE DRIVE UNIT.
KEEP OIL WITHIN THE MARKED AREA.
NOTICE

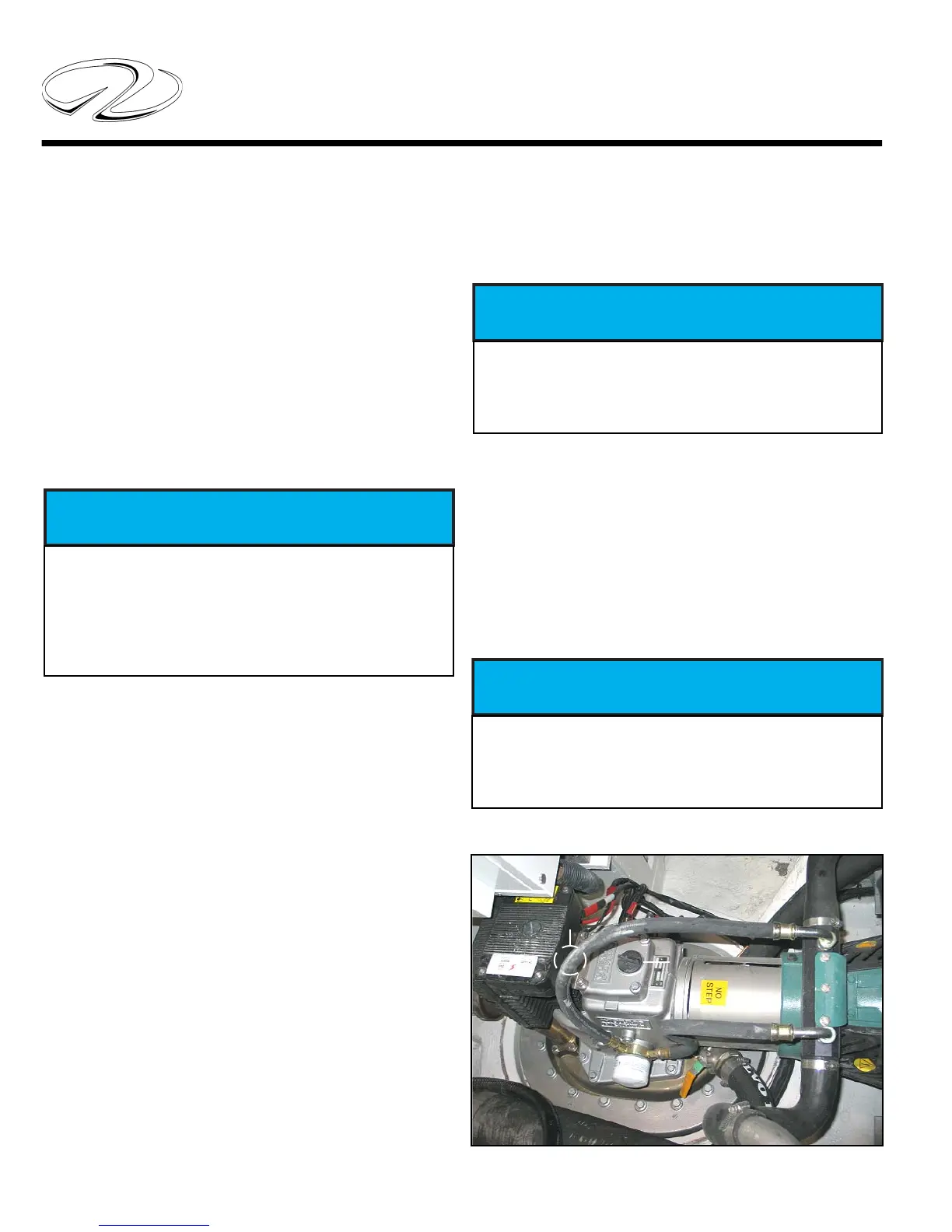

Dipstick
Oil Fill Cap
Volvo IPS- Drine Unit Oil Recommendations
Oil volume- 3.7 US Gals.
Oil grade and visocity- VP 1141634 (API GLS SAE 75
W/90 Synthetic
