F2500 Regency Freestanding Woodstove
installation
Brick Installation
Firebrick is included to extend the life of your stove and radiate heat more evenly. Check to see that all firebricks are in their correct positions and have not
become misaligned during shipping. Install all firebricks (if bricks were removed at install) per the diagram below and place in their correct positions.
Do not use a grate.
NOTE: The "AD" brick covers the Ash Dump hole that is used when the Ash Drawer Kit is installed.
LyoTherm sheet

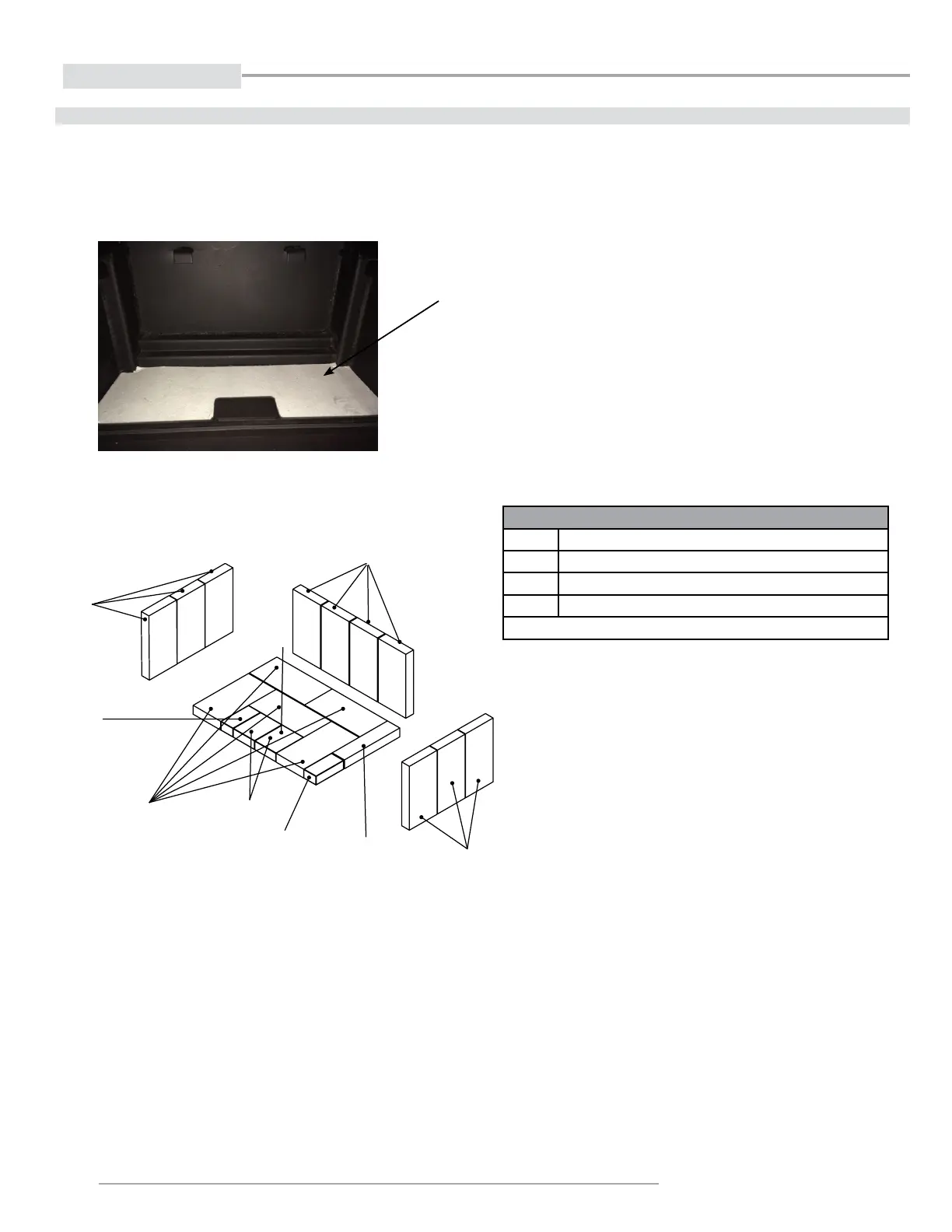

Order of firebrick install:
a) Rear Firebrick
b) Firebox floor - install brick over LyoTherm Sheet
c) Right and left side Firebricks
70
AD
70
70
70
74
72
72
76
020-960 Brick Kit Complete
70) Brick - Regular Full Size: 1-1/4" x 4-1/2" x 9"
72) Brick Partial: 1-1/4" x 2" x 4-1/2"
74) Brick Partial: 1-1/4" x 4-1/2" x 3-1/2"
76) Brick Partial: 1-1/4" x 2" x 9"
NOTE: This kit contains one spare brick in case of breakage.
