F2500 Regency Freestanding Woodstove
23
installation

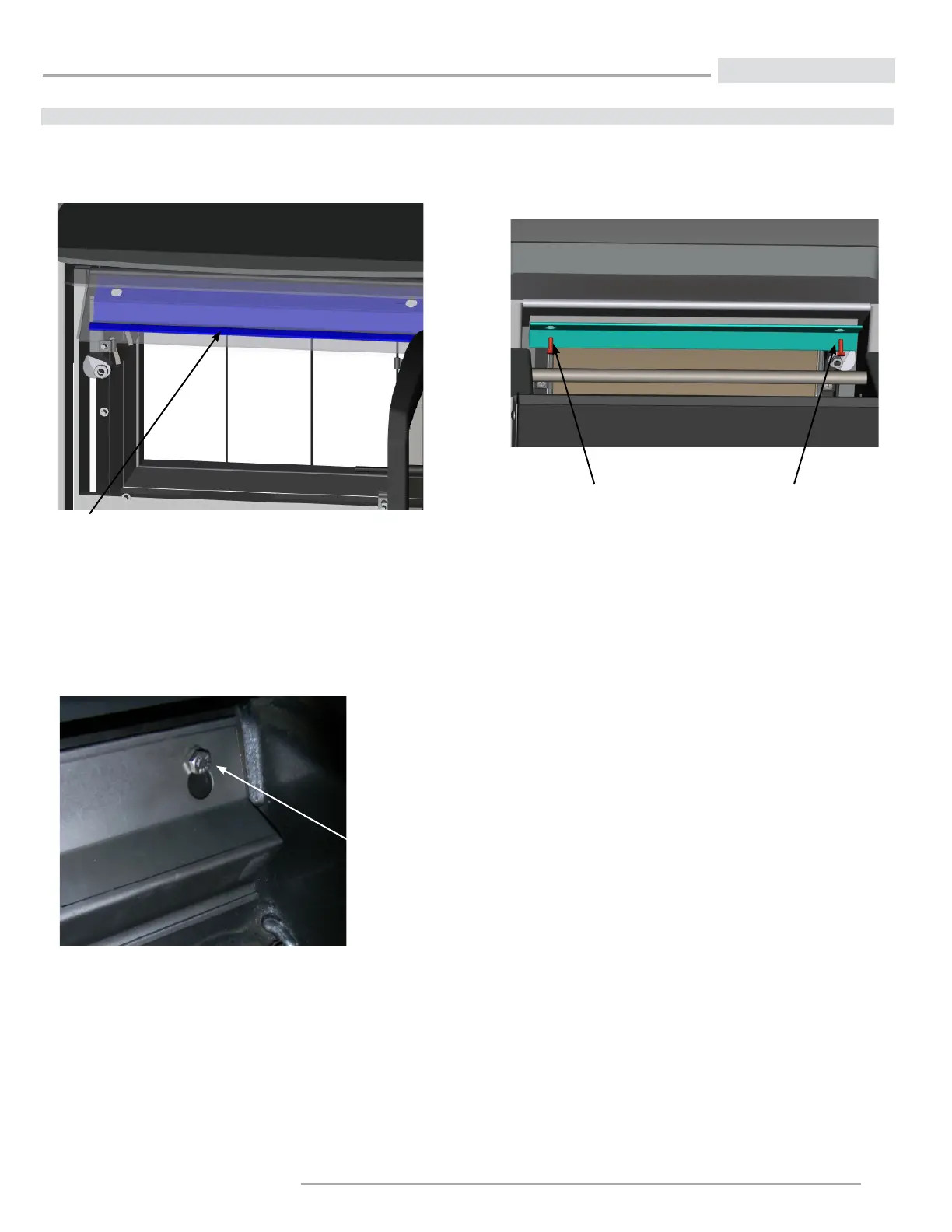

Stainless Steel Smoke Deflector Installation
The stainless smoke deflector is located in the upper front area of the firebox. The deflector is held in place with 2 bolts
Prior to the first fire, ensure deflector is seated properly and secured with 2 hand tightened bolts.
To replace the deflector, loosen off both bolts and slide deflector upward and out. Install new deflector and hand tighten bolts. Ensure positive location of
the deflector prior to hand tightening.
WARNING: Operation of the unit with out proper installation of smoke deflector will void warranty.
Smoke deflector installed with 2 bolts.
Note: This is a view from the back of the unit
through the top.
Smoke deflector is installed through the door
opening in location shown in diagram
Smoke deflector
Ensure deflector is seated so bolts are situated
at the top of the keyhole before tightening.
