F2500 Regency Freestanding Woodstove
7
installation
Side View
Rear Heat Deflector
Screws
Diagram 2
Diagram 3

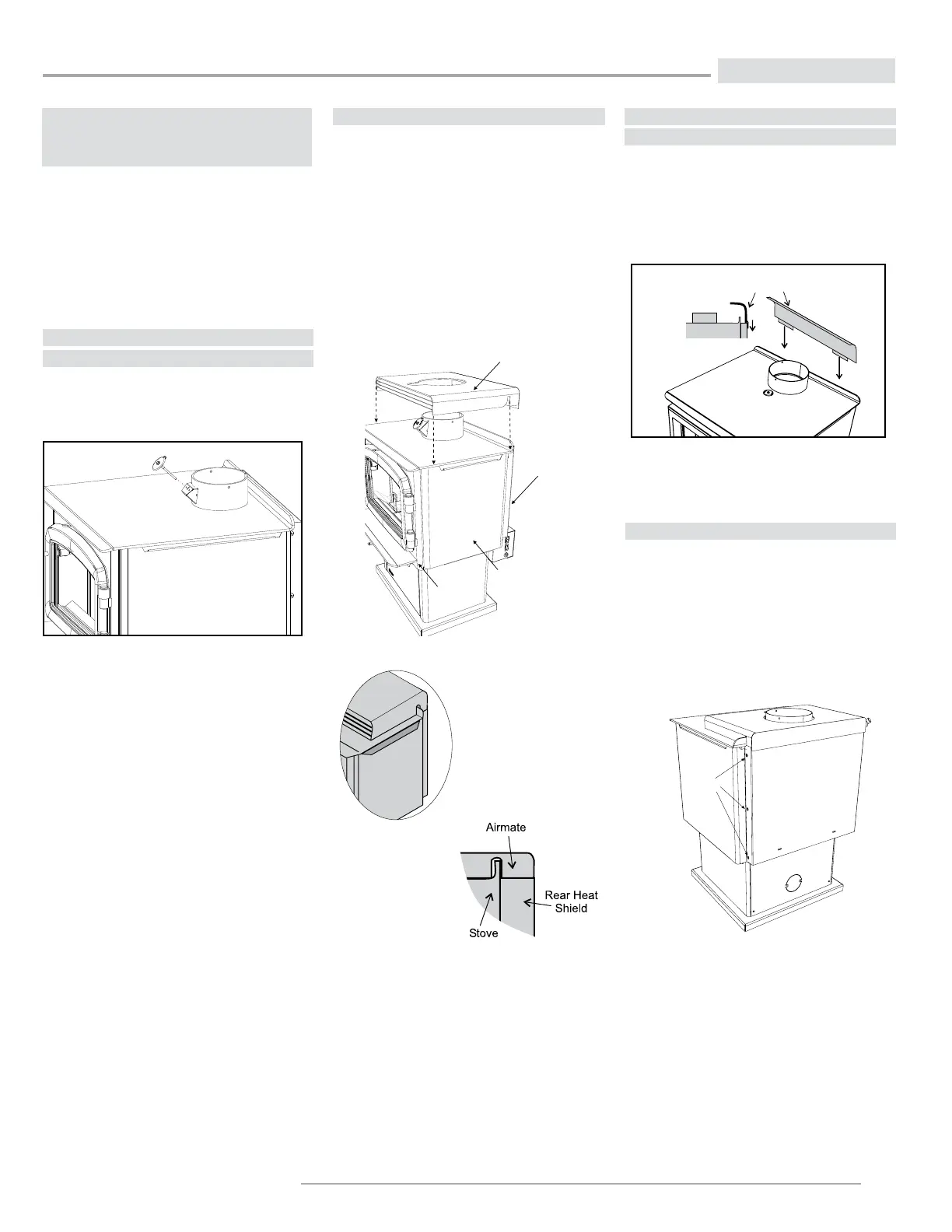

Stove Assembly
Prior to
Installation
The F2500 unit requires the pedestal (or heat
shield and legs) to be attached to the base. The
F2500 stove requires either the Airmate or Rear
Heat Deflector on top of the stove. Clearances to
combustible materials vary depending on whether
the airmate or rear heat deflector is installed, so
be sure to check the Minimum Clearances, Instal-
lation section.
Rear Heat Deflector
Assembly for F2500
The rear heat deflector is supplied with the stove
and must be installed unless the optional airmate
has been selected. It stops the heat radiated
from the flue collar from overheating the rear
wall. The rear heat deflector is installed on top of
the rear heat shield, as shown in Diagram 4.
Thermometer Installation
F2500
Install the supplied thermometer by inserting it
into the bracket located at the front of the flue
collar as shown below.
Side Shield Adjustment
The left and right side shields are lowered for ship-
ping and handling. It allows for a handhold on the
top of the stove. Before placing the stove in its final
position, the side shields must be raised.
Loosen the screws on the rear on the stove (3 per
side), slide the side panel up as far as possible and
then secure by tightening the screws.
Rear Heat
Shield
Side Shield
Stove
Diagram 1
Diagram 4
Diagram 5
Airmate Assembly for F2500
1. The airmate sits on top of the stove with the slots
in the sides fitting over the curved deflector on
the rear stove top. See diagram 1. Discard the
Rear Heat Deflector that is supplied with the
unit, it is not required if the airmate is installed.
2. Center the airmate and push it forward to the
front of the stove. The back of the airmate should
be level with the back and sides of the rear heat
shield. See Diagrams 2 & 3.
