L390E / HZI390E Direct Vent Gas Insert
23
INSTALLATION

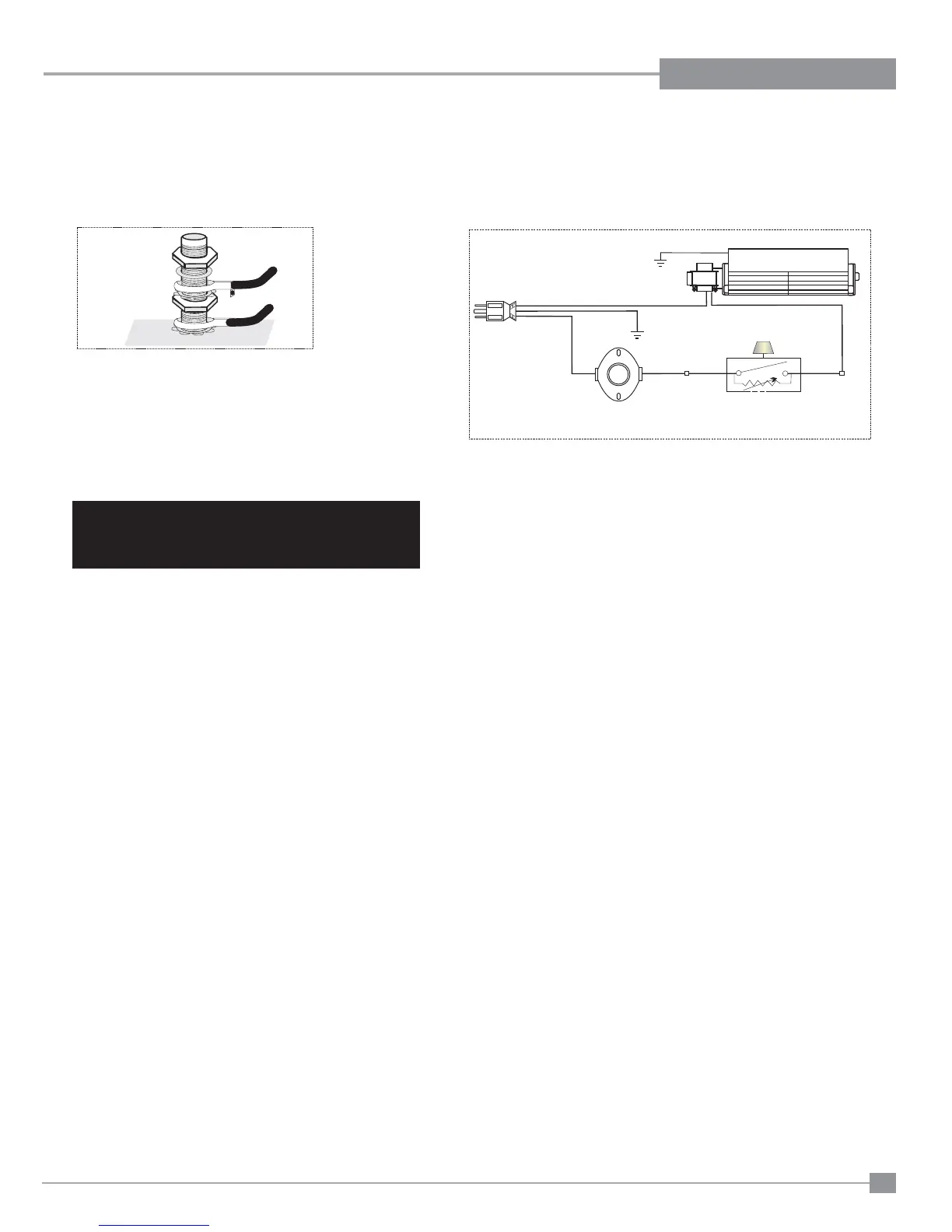

FAN WIRING DIAGRAM
FOR USE WITH THE OPTIONAL 396-917 FAN FOR L390E/HZI390E)
Caution: Ensure that the wires do not touch any
hot surfaces and are away from sharp edges.
Ground
Green
Neutral
Live
Red Black Black
Black
Minimum Convection
Air Temp. Switch
Ground
ON OFF
Rotary Speed
Control
120V AC
Fan
Lockwasher
Ground wire
from power cord
Ground wire
from fan
Star washer
nut
nut
Star washer
Grounding
Lug Detail
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can
cause improper and dangerous operation.
To Next Page
