L390E / HZI390E Direct Vent Gas Insert
INSTALLATION
3 SIDED LOW PROFILE FACEPLATE INSTALLATION
Note: Faceplate may be installed after the unit is in it's fi nal position.

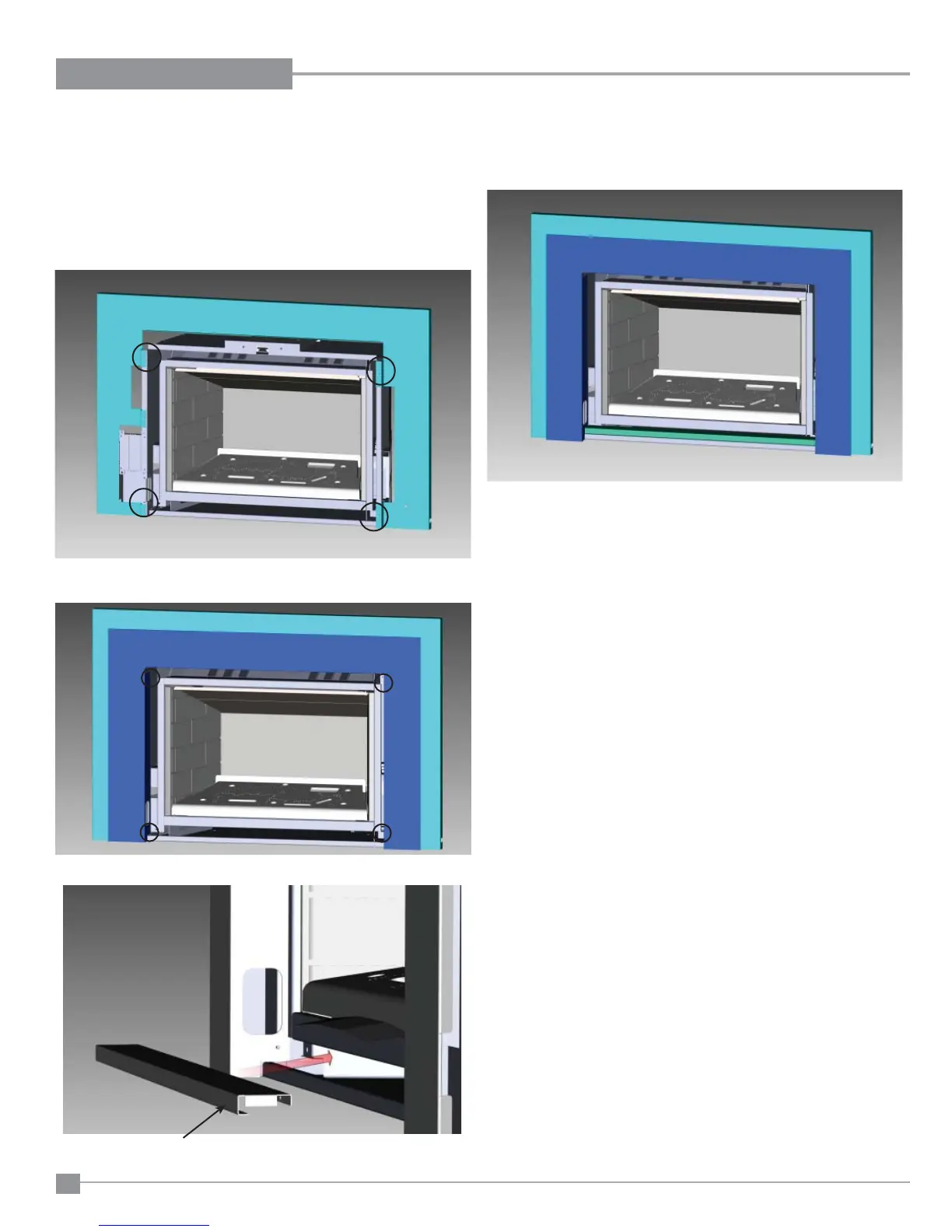

1) Install Low Profi le faceplate backing plate and secure to the unit with 4
screws in locations shown below.
2) Install front faceplate and secure to the unit with 4 screws in locations
shown below.
3) Install lower trim piece oriented as shown below.
Trim
Final Install
To Next Page
