Regency P33-3 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
• Vent must be supported at offsets.
• Firestops are required at each fl oor level and whenever passing through a wall.
• Maintain clearances to combustibles.
Note: Must use optional rigid pipe adapter when using rigid pipevent systems (Part # 510-994).
RIGID PIPE VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
(Propane & Natural Gas)

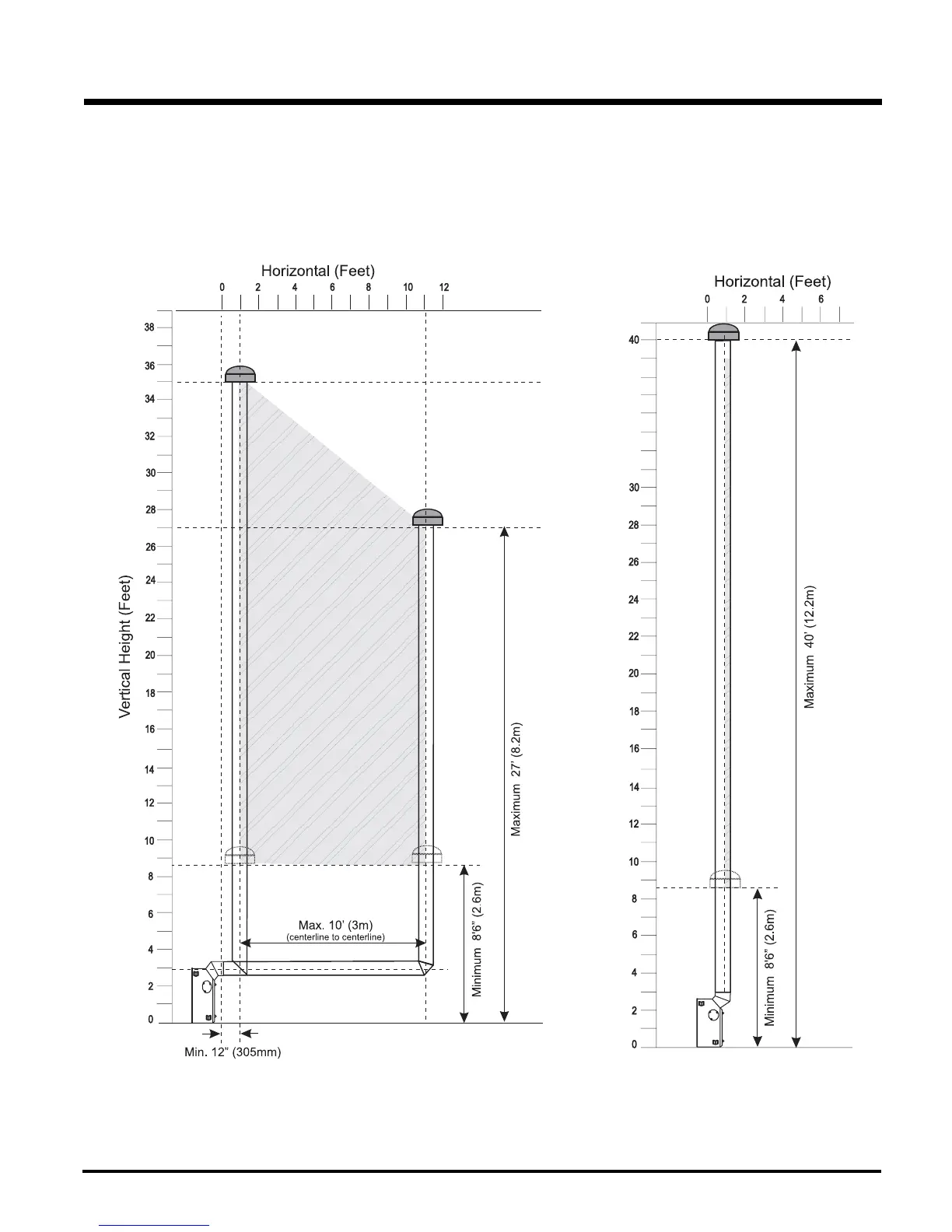

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using one 90
o
elbow, with
rigid pipe vent systems for Propane and Natural Gas.
