Optigo OP10
(mm)
122
120
64
Head office Sweden
Phone: +46 31 720 02 00
Web: www.regincontrols.com
Mail: info@regincontrols.com

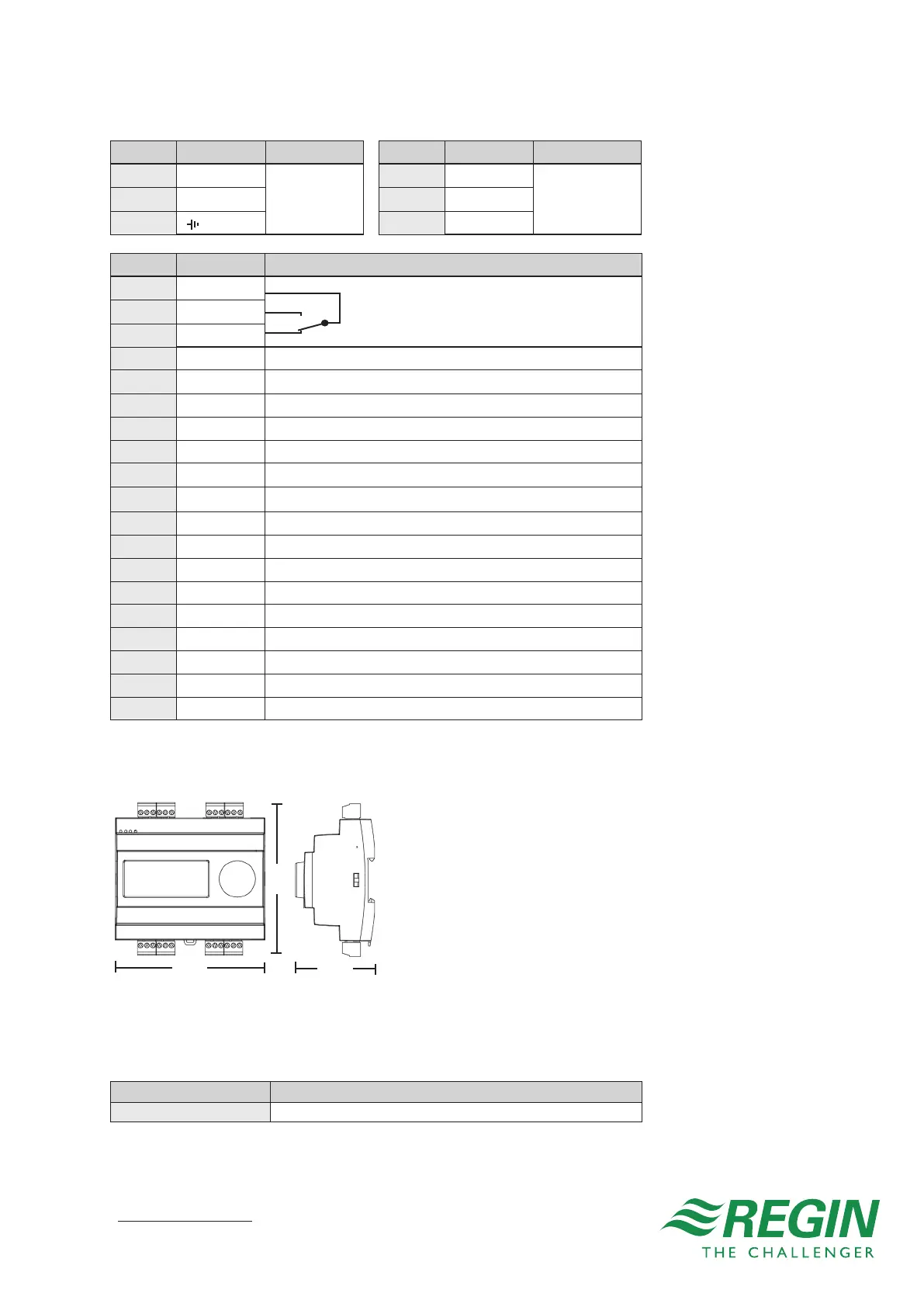

Wiring
OP10
Dimensions
Terminal Designation Function
10 Common
11 NO Change-over relay 5A
12 NC
13 G Reference for DO1 and DO2
14 DO1 Digital output
15 DO2 Digital output
20 AGND Reference for AO1 and AO2.
21 AO1 0...10 V DC output
22 AO2 0...10 V DC output
40 DI2 Digital input
41 DI+ Reference for DI1 and DI2
42 DI1 Digital input
43 UI+ Reference for UI1
44 UI1 Universal input for PT1000 or digital
50 AGND Reference for AI1
51 AI1 PT1000 temperature sensor input
52 AGND Reference for AI2
53 AI2 PT1000 temperature sensor input
54 SPI Input PT1000 setpoint device
Terminal Designation Function
1 G 24 V AC
only
Optigo 10
2 G0
3
OP10-230V
Terminal Designation Function
1 L 230 V AConly
Optigo 10-230
2
3 N
The product documentation is available for download from www.regincontrols.com.
Product documentation
Document Type
Optigo OP10 manual Optigo OP10 user manual
