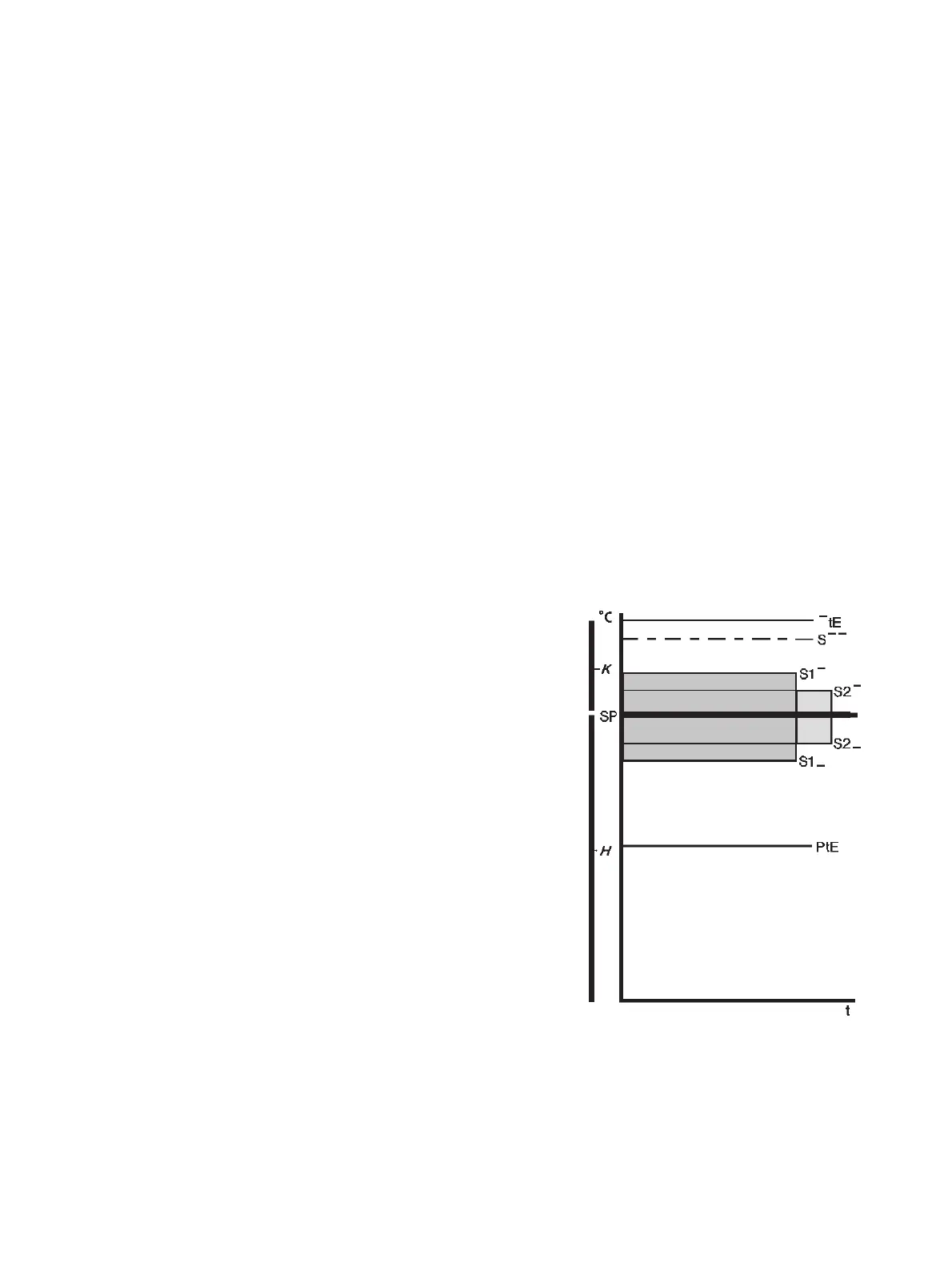

Fig. 2: Temperature limit values
9. Control Methods
The RT 45 microprocessor uses the following processing programs (control algorithms):
Cascade control: The control system switches automatically to cascade control when the tempera-
ture probe Sn2 is installed in the consumer. This type of control system is very accurate, fast, and
stable.
Otherwise, the system switches to the aligned parameter set 1–10 (Section 7.1 “PAr”). In this case,
the control system works with sensor Sn1 (fluid temperature). If an external sensor (in the consumer)
is used to control temperature in the inlet while using the parameter set option, the sensor must be
connected at terminal Sn3.
10. Operation with Interface (optional feature)
When the “unit-processor” line is connected, the unit is controlled by the processor.
When this line is not connected, the control system works autonomously.
A detailed description of the interface is available on request.
11. Appendix
11.1 Factory Settings
To load factory values, see Section 8.3 (“rES Et”).
If a value is set at 0 (if possible), the related function is inactivated.
H Heating range.
K Cooling range.
SP Set value.
tE Pump run-out temperature, measured by probe
Sn1 (absolute value)
S1
–
Lower limit value of fluid temperature with
respect to the set value, measured by sensor
Sn1 (relative value).
S1¯ Upper limit value of fluid temperature with
respect to the set value, measured by sensor
Sn1. The total SP + S1 may not exceed S
––
(relative value).
S2
–
Lower limit value of consumer temperature with
respect to the set value, measured with sensor
Sn2 (relative value).
S2¯ Upper limit value of consumer temperature with
respect to the set value, measured with sensor
Sn2 (relative value)
S¯
¯ Maximum adjustable set value. Factory-adjusted,
unit-specific value (absolute value)
¯tE Triggering temperature of the electromechanical
safety thermostat in the unit (absolute value.
11.2 Changing the Control Insert
When changing the control insert all programmed values remain, with the exception of operator ad-
justments (set value SP1).
Attention: The control insert should be changed only with the main switch off.
