Reliance FX920 - Raising and Lowering the Chair Lift

REMARQUE : Les interrupteurs RAISE (LEVER)
et LOWER (BAISSER) la base sur le dossier de la
chaise sont programmables. Selon la conception
initiale, le mouvement de la chaise S’ARRÊTE
lorsque l’un ou l’autre de ces interrupteurs est
relâché. Si vous désirez que le mouvement de la
chaise CONTINUE, après que l’un ou l’autre de ces
interrupteurs est relâché, consultez la section 4
pour connaître les instructions de programmation.
3.2.2. Raising & Lowering the Chair Lift from the
Footswitch
• For operation from the footswitch (Figure 3), depress the
right side of the pedal to raise the chair lift.
• Depress the left side of the right-hand pedal to lower the
chair lift.
NOTE: The RAISE and LOWER BASE switches on
the Footswitch are programmable. By design, the
motion of the Chair will STOP when either of these
switches is released. If you want the motion of the
Chair to CONTINUE after either of these switches
is released, then see Section 4 for programming
instructions.
3.2. Chair Lift
3.2.1. Raising & Lowering the Chair Lift with
Membrane Switches
• The chair lift may be raised or lowered by Membrane
Switches on either side of the chair back (Figure 2).
• To raise the chair lift from these switches, depress the
triangular-shaped UP arrow located ABOVE the text ”BASE”.
This is called the RAISE BASE switch.
• To lower the chair lift, depress the triangular-shaped DOWN
arrow located BELOW the text “BASE”. This is called the
LOWER BASE switch.
NOTE: The RAISE and LOWER BASE switches on
the Chair Back are programmable. By design, the
motion of the Chair will STOP when either of these
switches is released. If you want the motion of the
Chair to CONTINUE after either of these switches
is released, then see Section 4 for programming
instructions .

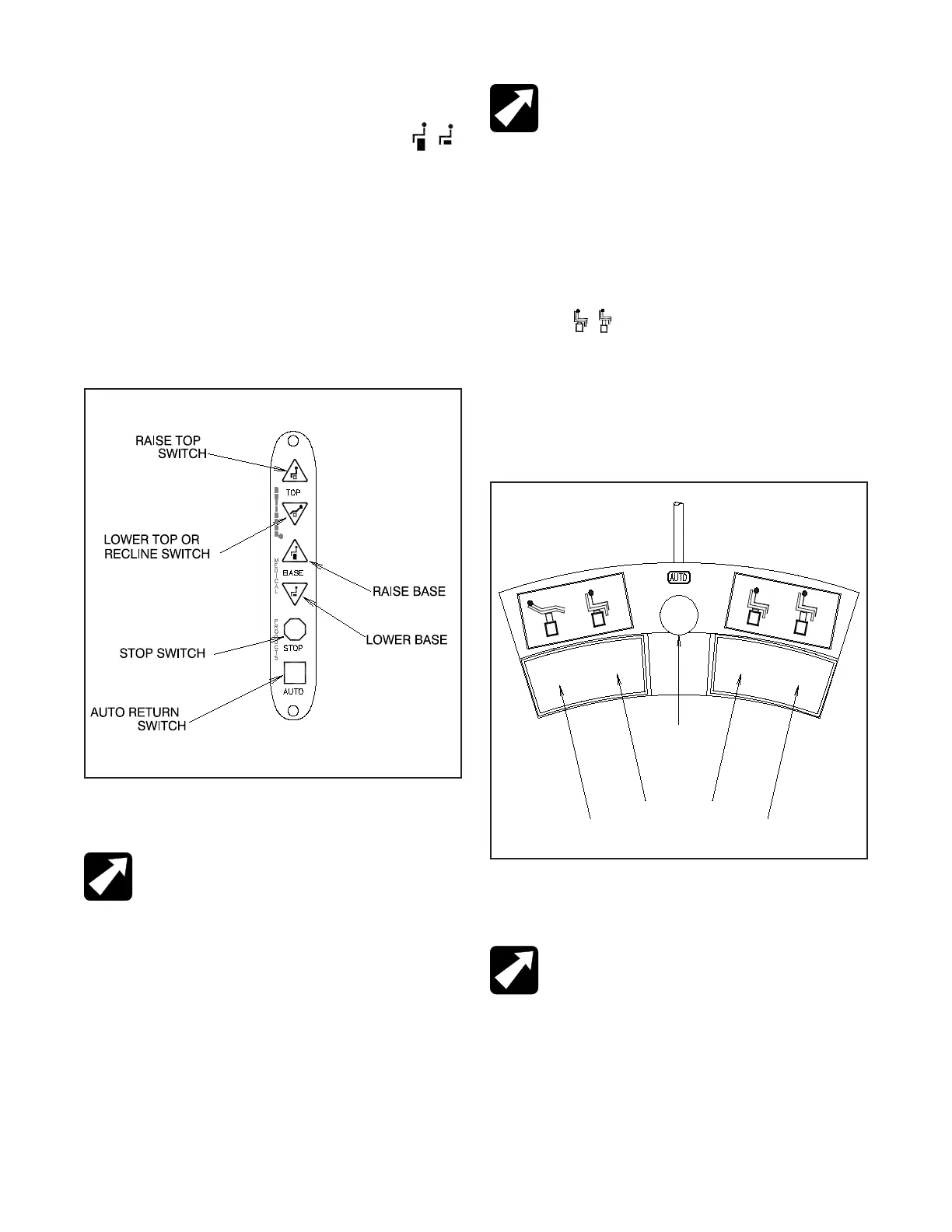

FIGURE 2
MEMBRANE SWITCH
AUTO
RETURN
BACK
RECLINE
BACK
RAISE
LIFT
DOWN
UP
LIFT
FIGURE 3
Footswitch Operation
IN-FX9208
