InstallationIndications, functions and optionsMessages Commissioning Operation and function
3 Application examples
TS +B AB
0-10V
S AMB C
4 3 2 12 1
+ -
S AMB B
2 1
S AMB A
2 1
S SYST + TA -
S ECSS EXTS DEP C
2 12 12 12 1 2 1
S DEP B
2 1
SCU
1 (1) A 240 V~
1 (1) A 240 V~
R1
R2
LN
R1
N
2019
18
171615
14131212
NR2
T2A
100 ... 240 V~
50-60 Hz
Temp. Sensor Pt1000
S2S1 S3 S4 VBus
PWM 1/2
ModBus
3
4
5678910
9
10
F-67580 Mertzwiller
DDTh
Sol Plus
Article/Artikel 7630422
Soft version 2.00
Serial number
IP 20
R1
S2
S1
AGC
GSCR
CALORA TOWER
Boiler
MODBUS CABLE
COLIS ER 713 7630424

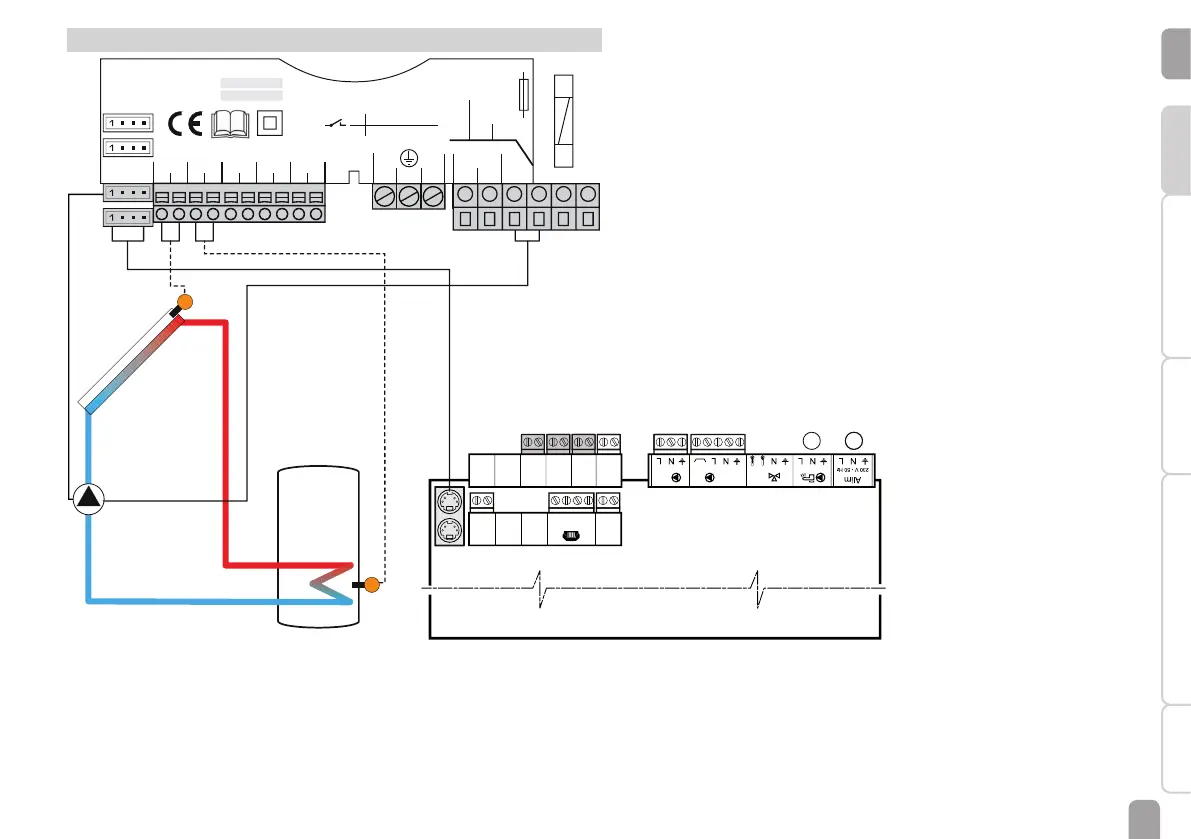

SOLARFIRST function
If the solar pump switches on, the Sol Plus controller will send a signal to the boiler
controller. The boiler controller will then reduce the set temperature of DHW
heating by 0 - 30 K (adjustable).
Result: Priority of solar heat
If there is not enough solar energy, the solar pump will switch off and the boiler is
set to its “normal” operating mode.
The solar controller and the boiler controller work together in order to increase
the solar yield and to decrease gas and / or oil consumption.
Only with standard solar system 1.
