27

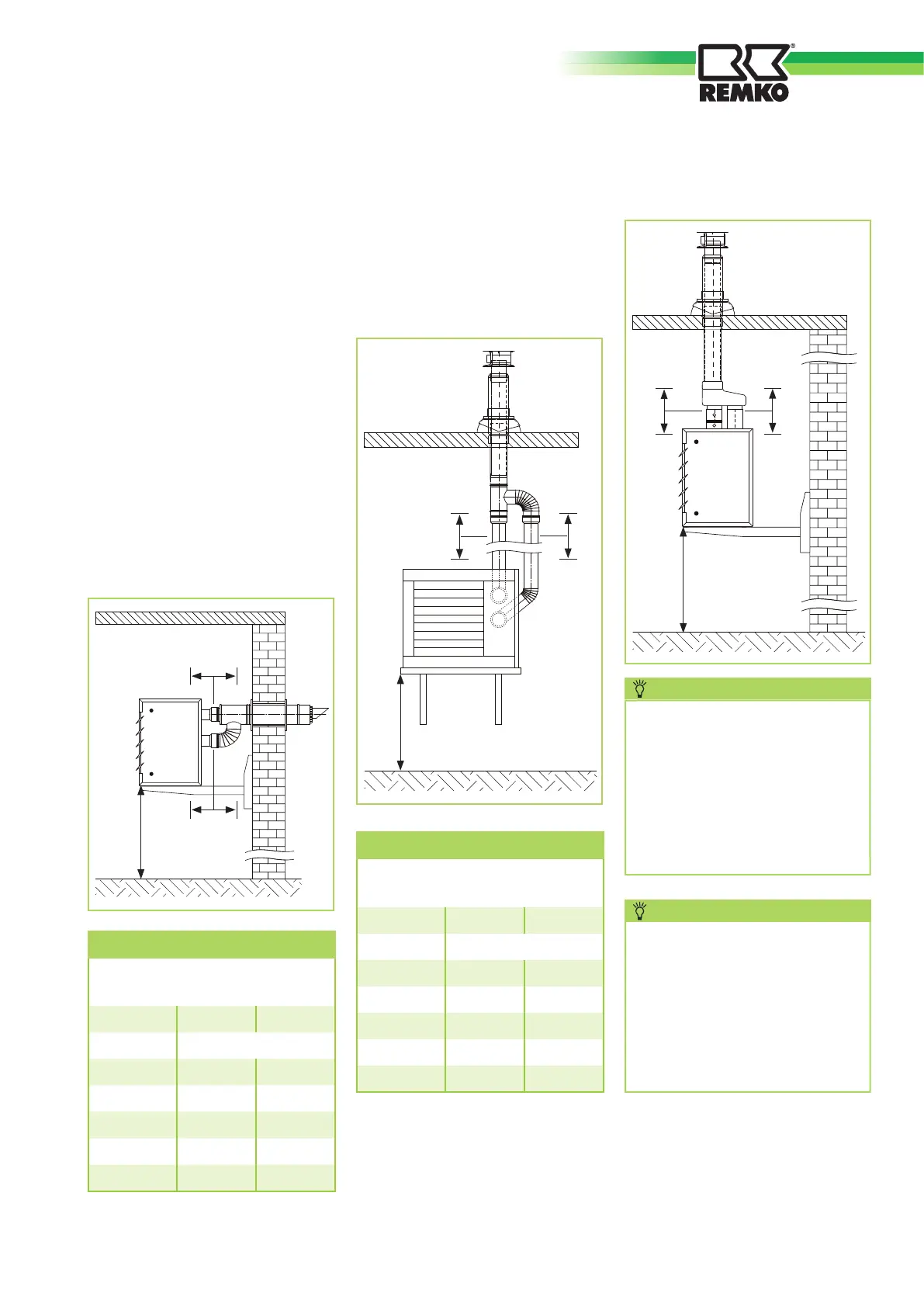

Type C13 horizontal / coaxial
L1 + L2 maximum duct length
without endpieces
Ø 80 Ø 100
Model Metres
GPM15 10 + 10
GPM25 10 + 10
GPM35 10 + 10
GPM55 4.5 + 4.5
GPM 75 4 + 4
Type C33 vertical / coaxial
L1 + L2 maximum duct length
without endpieces
Ø 80 Ø 100
Model Metres
GPM15 11 + 11
GPM25 11 + 11
GPM35 11 + 11
GPM55 4.5 + 4.5
GPM 75 4 + 4
Gas fireplace type C
Room-air-independent combustion
system.
The combustion cycle is compact
compared to the environment in
which it is installed.
The combustion air is fed from
outside.
The ductwork runs horizontally
through the outside wall or
vertically through the roof.
L1 L2
Installation height
Schematic
side view
2.5 - 3.5 m
L1
L2
Installation height
2.5 - 3.5 m
Schematic
side view
L1 L2
Installation height
2.5 - 3.5 m
Schematic
front view
In this version the position of
the connections to the unit
must be changed, meaning
they must be repositioned
from behind to above.
This
variant is executed at the
factory and must be indicated
when ordering.
NOTE
NOTE
The installation of the exhaust
gas routeing through the
outside wall must correspond
to the regulations of DVGW -
TRGI and TRF as a basic rule
and must be approved by the
responsible district master
sweep.
TYPE C33
Room-air-independent combustion
system.
Exhaust/ and combustion air are
led through an LAS endpiece
through the roof.
TYPE C13
Room-air-independent combustion
system.
Exhaust/ and combustion air are
led through an LAS endpiece
through the outside wall.
We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.
