REMKO GPM

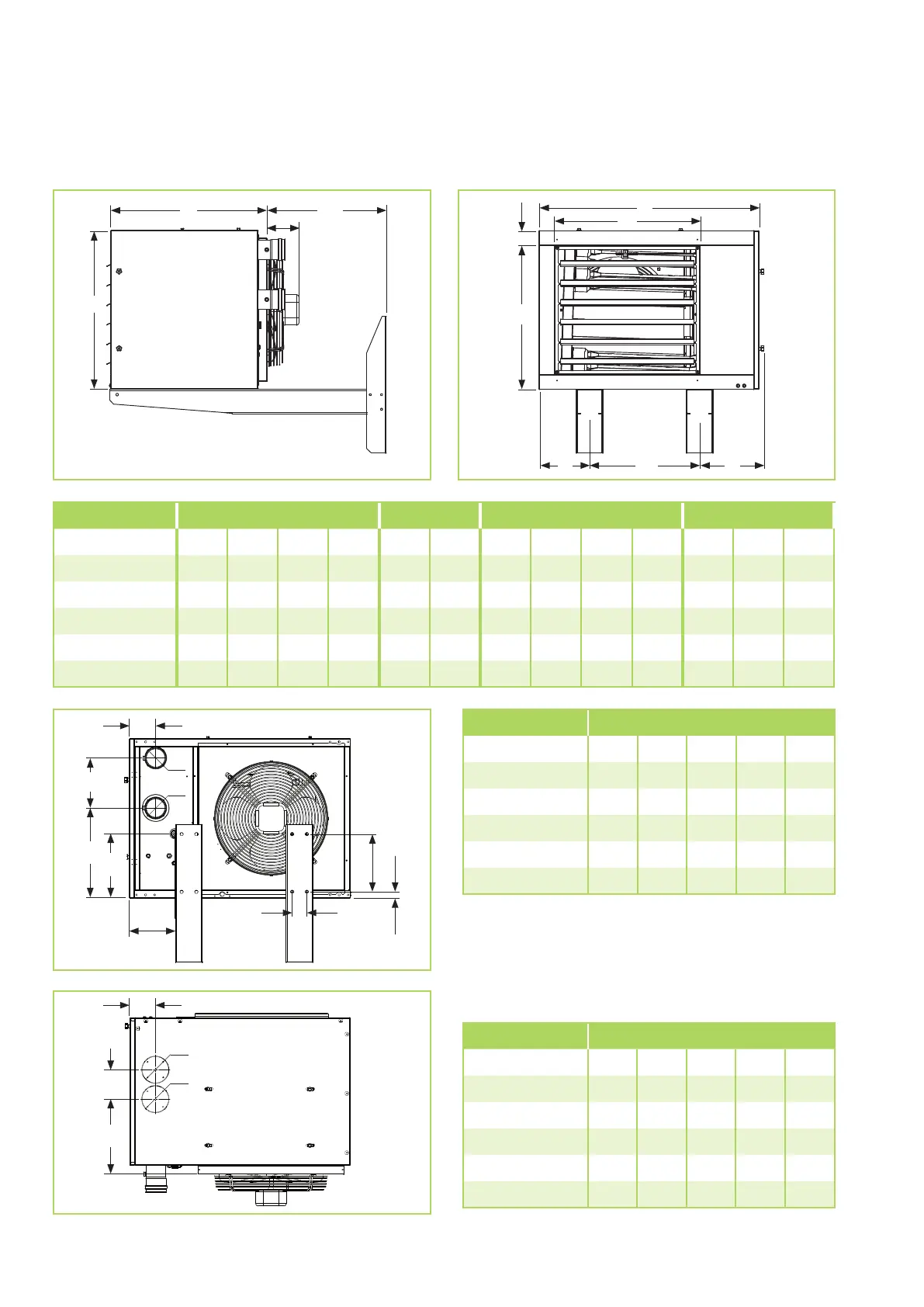

Unit dimensions
Series Dimensions Opening Suspended unit Gas supply
L B H V HB LB IM IS ID DM GAS GO GV
GPM15 720 640 650 140 530 415 450 116 174 475 3/4“ 186 263
GPM25 900 640 650 140 530 595 450 206 264 475 3/4“ 186 263
GPM35 900 640 650 140 530 595 450 206 264 475 3/4“ 186 263
GPM55 1240 640 740 140 620 935 780 228 252 475 3/4“ 183 352
GPM 75 1400 750 810 140 690 1080 894 243 283 400 1“ 109 296
Series Horizontal discharge
A F AV TV L
GPM15 80 80 367 204 105
GPM25 80 80 367 204 105
GPM35 80 80 367 204 105
GPM55 80 80 457 204 105
GPM 75 100 100 511 204 130
Series Vertical discharge
A F AO TO L
GPM15 80 80 305 120 105
GPM25 80 80 305 120 105
GPM35 80 80 305 120 105
GPM55 80 80 310 120 100
GPM 75 100 100 400 140 127
A = Supply line
F = Flue gas line
We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process.
B DM
H
V
HB
LB
60
L
IMIS ID
L
AO TO
ØA
ØF
L
TV
GV
AV
235
25
ØA
ØF
GO
60
