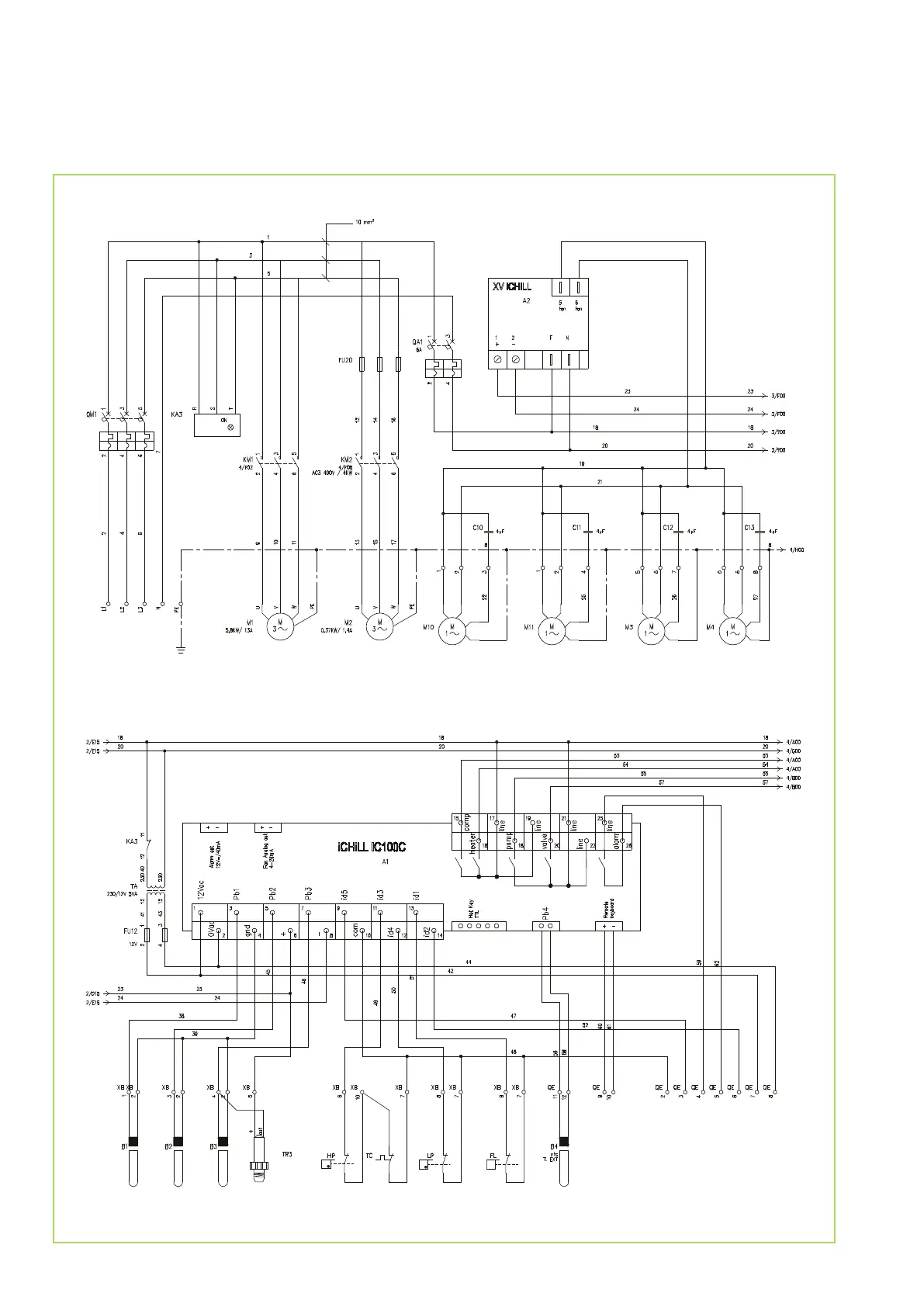

REMKO KWL 130 - Page 32

KWL 370 (H)
KWL 370 (H)
2-3 External enabling
4-5 General fault signal
2-6 Cooling-heating switching
7 12V
8 0V
9-10 Cable remote control
Compressor
Probe
Intake
High
pressure
switch
Probe
Outlet
Low pres-
sure switch
Probe
LN-contr.
Diff.press.
switch
Pressure transducer
pressure reg.
(Accessories)
Circulation pump
Fan controller
Condenser
fan 1
Condenser
fan 3
Condenser
fan 2
Condenser
fan 4
REMKO KWL (H)
32
