Operating and
installation instructions
Read the instructions prior to performing any task!

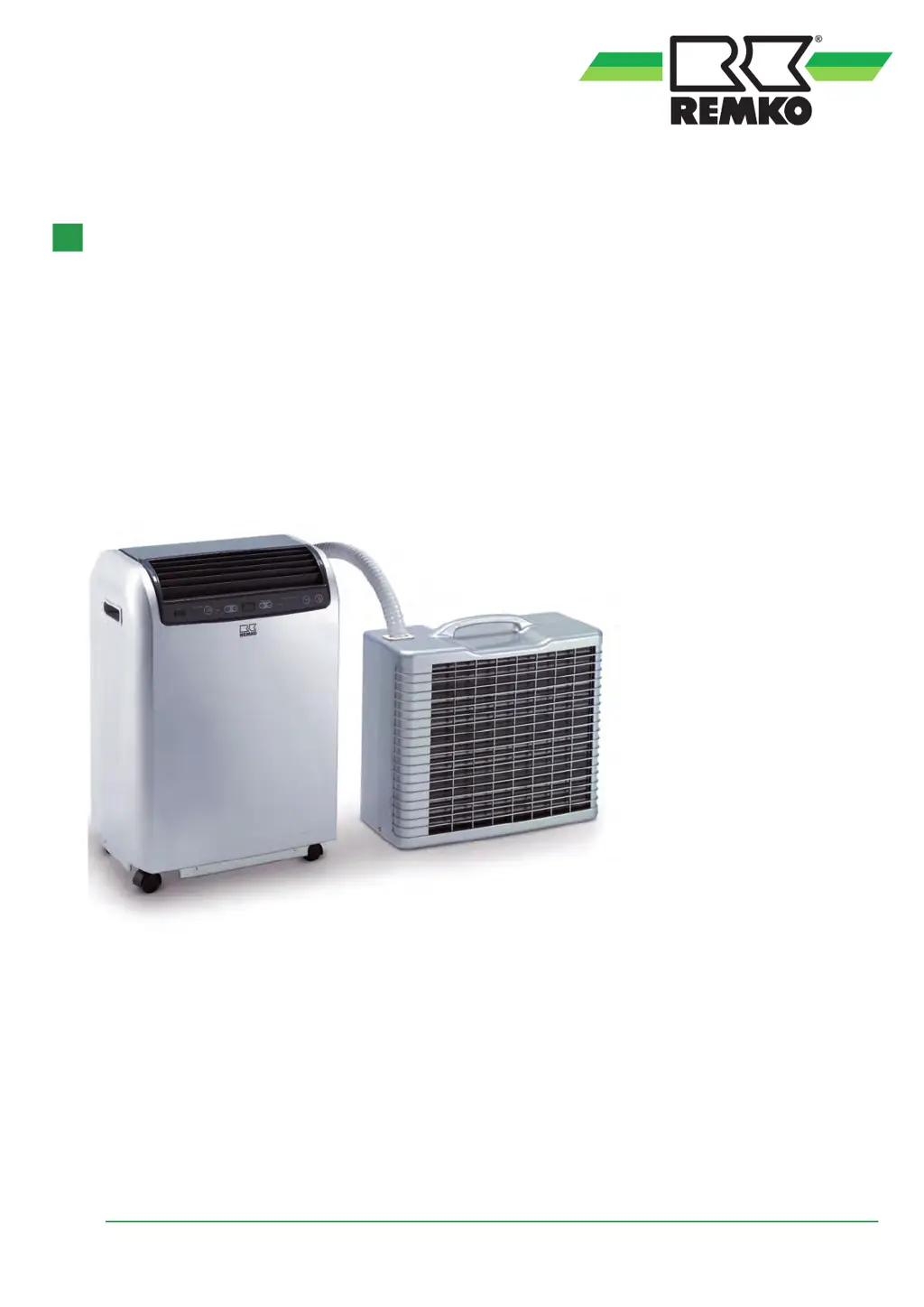

REMKO RKL DC series
RKL 495 DC
Local room air conditioner in split design
0240-2019-12 Edition 1, en_GB

Table of Contents

Questions and Answers

  • T
    Tammy WilsonJul 27, 2025
    What to do if my REMKO RKL DC does not start?
    • W
      Wendy HerringJul 27, 2025
      If your REMKO Air Conditioner doesn't start, there might be several reasons: * There could be a power failure. Check the voltage and wait until it is turned on again, if necessary. * The mains fuse or controller fuse might be faulty. Arrange to have it exchanged. * The power plug might not be inserted in the socket. Ensure the power plug is properly inserted. * The condensate container might be full, with a flashing "DRAIN WATER" display. Empty the container via the condensate drain hose. * The timer mode might be activated. Wait for the timer period to expire or press the "I / 0" key again.
  • J
    jeffreymcgrathJul 31, 2025
    Why is my REMKO RKL DC working with reduced performance?
    • J
      Jordan BurnsJul 31, 2025
      If your REMKO Air Conditioner is working with reduced performance, check the following: * Ensure that the exhaust air or outlet openings are not dirty or blocked. Clean the openings and remove any foreign objects. * The filter might be soiled. Clean the filter according to the instructions. * The outdoor unit might be dirty. Clean the fins on the inside of the outdoor unit. * The cooling load of the room might be excessive. Reduce the thermal load.
  • J
    janet10Aug 4, 2025
    What to do if condensate leaks out of my REMKO Air Conditioner?
    • D
      Diane WilliamsAug 5, 2025
      If condensate leaks from your REMKO Air Conditioner, check if: * The unit is standing at an angle. Position it vertically and ensure it has a stable base. * The stopper in the condensate drain hose is missing. Seal the hose so that it is watertight again.
  • S
    stevenmathisAug 9, 2025
    What does error code 32# mean on my REMKO RKL DC?
    • W
      Wesley LangAug 9, 2025
      Error code 32# on your REMKO Air Conditioner indicates a defective liquid line probe or excessive liquid line temperature. If the error appears less than 1 minute after turning on the unit, the THOP probe (PCB 3) is defective and needs replacement. If the error appears after operating for some time, it could be due to a lack of refrigerant or a malfunctioning fan motor in the outdoor unit. If the temperature on the THOP probe rises above 58 °C, the unit will switch off and display error code "32".
  • J
    John KochAug 13, 2025
    How to fix error code 01# on REMKO RKL DC?
    • A
      allison62Aug 13, 2025
      Error code 01# on a REMKO Air Conditioner indicates a communication error between the circuit board on the indoor unit and the outdoor unit. To resolve this, check the 6-wire connection and plug contacts CN202 (PCB 2) - CN109 (PCB 3). If necessary, replace the connecting cable or the motherboard (PCB 3).
  • C
    Christopher TaylorAug 17, 2025
    What does error code 02# mean for REMKO Air Conditioner?
    • K
      Kim TrevinoAug 17, 2025
      Error code 02# on your REMKO Air Conditioner means that the ambient temperature probe is defective. Replace the THRA probe (PCB 2).
  • A
    Ashley CarrAug 22, 2025
    What does error code 03# mean on a REMKO RKL DC?
    • C
      christopherjordanAug 22, 2025
      Error code 03# on your REMKO Air Conditioner indicates that the evaporator probe is defective. Replace the THEP probe (PCB 2).

Summary

Safety and Usage Instructions

General Safety and Personnel

General safety notes, identification of warnings, and required personnel qualifications.

Operational and Installation Safety

Safety for operators, dangers of non-compliance, and notes for installation, maintenance, and inspection.

Usage, Transport, and Disposal

Covers unauthorized modifications, intended use, transport, packaging, warranty, and environmental protection.

Technical Data

Unit Data

Provides detailed technical specifications for the RKL 495 DC and RKL 495 DC S-LINE models.

Design and Function

Unit Description

Describes the split design, inverter technology, and operational features of the air conditioner.

Operation

Control Panel Operation

Details the functions of buttons and LEDs on the unit's control panel.

Remote Control Modes

Explains operation in Cooling, Circulated Air, and Dehumidifying modes using the remote control.

Installation

Indoor Unit and Ground Outdoor Unit Installation

Instructions for indoor unit positioning and outdoor unit installation on the ground.

Outdoor Unit Wall Mounting and Height

Details on mounting the outdoor unit on a wall and permissible mounting heights.

Outdoor Unit Fastening Strap Mounting

Alternative method for outdoor unit mounting using fastening straps.

Connecting Line

Connecting the Unit

Procedure for connecting the indoor and outdoor units via the connecting line.

Dismantling the Connecting Line

Detailed steps for safely dismantling the connecting line using specific tools and precautions.

Protective Caps and Final Checks

Instructions for applying protective caps and performing final checks after connecting the line.

Electrical Wiring

Electrical Wiring Diagram and Component Identification

Presents the electrical wiring diagram and lists the functions of various electrical components.

Troubleshooting

Operational Malfunctions and Remedies

Lists common operational issues, their causes, and suggested remedies.

Error Indication Codes

Explains error codes displayed by the unit and their possible causes/solutions.

Care and Maintenance

General Care and Maintenance

Provides guidelines for regular cleaning and maintenance to ensure unit longevity.

Air Filter Cleaning

Detailed steps for cleaning the air filter on the indoor unit.

Shutdown

Temporary Shutdown Procedure

Instructions for preparing the unit for temporary shutdown, including draining and cleaning.

Permanent Shutdown and Dismantling

Outlines procedures for permanent shutdown and dismantling by specialists.

Exploded View and Spare Parts

Indoor Unit Exploded View

Visual representation of the indoor unit's components with numerical identification.

Indoor Unit Spare Parts List

Comprehensive list of spare parts for the indoor unit with designations.

Outdoor Unit Exploded View

Visual representation of the outdoor unit's components with numerical identification.

Outdoor Unit Spare Parts List

Comprehensive list of spare parts for the outdoor unit with designations.
