REMKO RKL DC Series User Manual

3 Design and function
Unit description
The unit is particularly suited for flexible operation,
but can also be mounted in a stationary installa-
tion. The local room air conditioner is equipped
with an indoor unit for floor installation in an indoor
area, and an outdoor unit for wall or ground instal-
lation outdoors. In "cooling" mode, the output pro-
duced by the compressor precisely matches itself
to requirements, and thereby regulates the nominal
temperature with minimal temperature deviations.
This "inverter technology" results in energy savings
over conventional split systems and also reduces
noise emissions to a particularly low level. The
flexible connecting line serves to transport the heat
to the outdoor unit. The outdoor unit discharges
the absorbed heat to the outdoor air by means of a
heat exchanger (condenser). The condensate col-
lected during cooling mode is transported to the
outdoor unit by means of a condensate pump inte-
grated in the indoor unit and evaporates via the
heat exchanger
. The unit filters and dehumidifies
the air thereby creating a comfortable room cli-
mate. It works fully automatically and offers
numerous additional options thanks to microproc-
essor regulation. The operation of the unit can take
place conveniently using the infra-red remote con-
trol included.
2
1
4
3
5
6
7
8
b
b
a
A
B
a

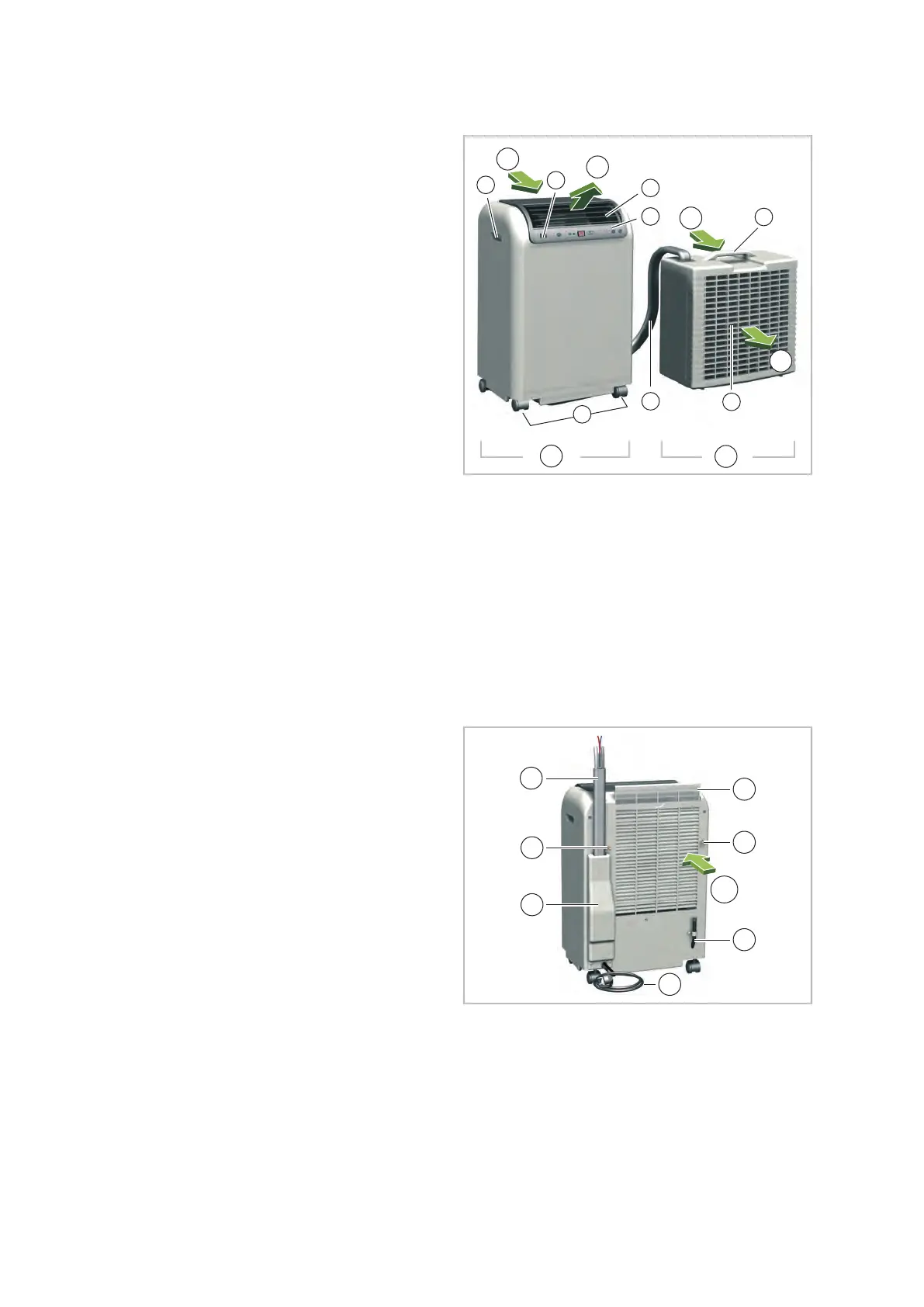

Fig. 1: Front view
A: Indoor unit / B: Outdoor unit
a: Air inlet / b: Air outlet
1: Recessed grip
2: Infrared receiver
3: Ventilation louvres
4: Control panel
5: Carrying handle
6: Transport castors
7: Connecting line
8: Condenser fan (rear side)
2
1
4
3
5
a
2
6
Fig. 2: Rear view (indoor unit)
a: Air inlet
1: Connecting line
2: Mounting for the outdoor unit
3: Cover
4: Air filter
5: Condensate drain
6: Power supply with plug
REMKO RKL DC series
