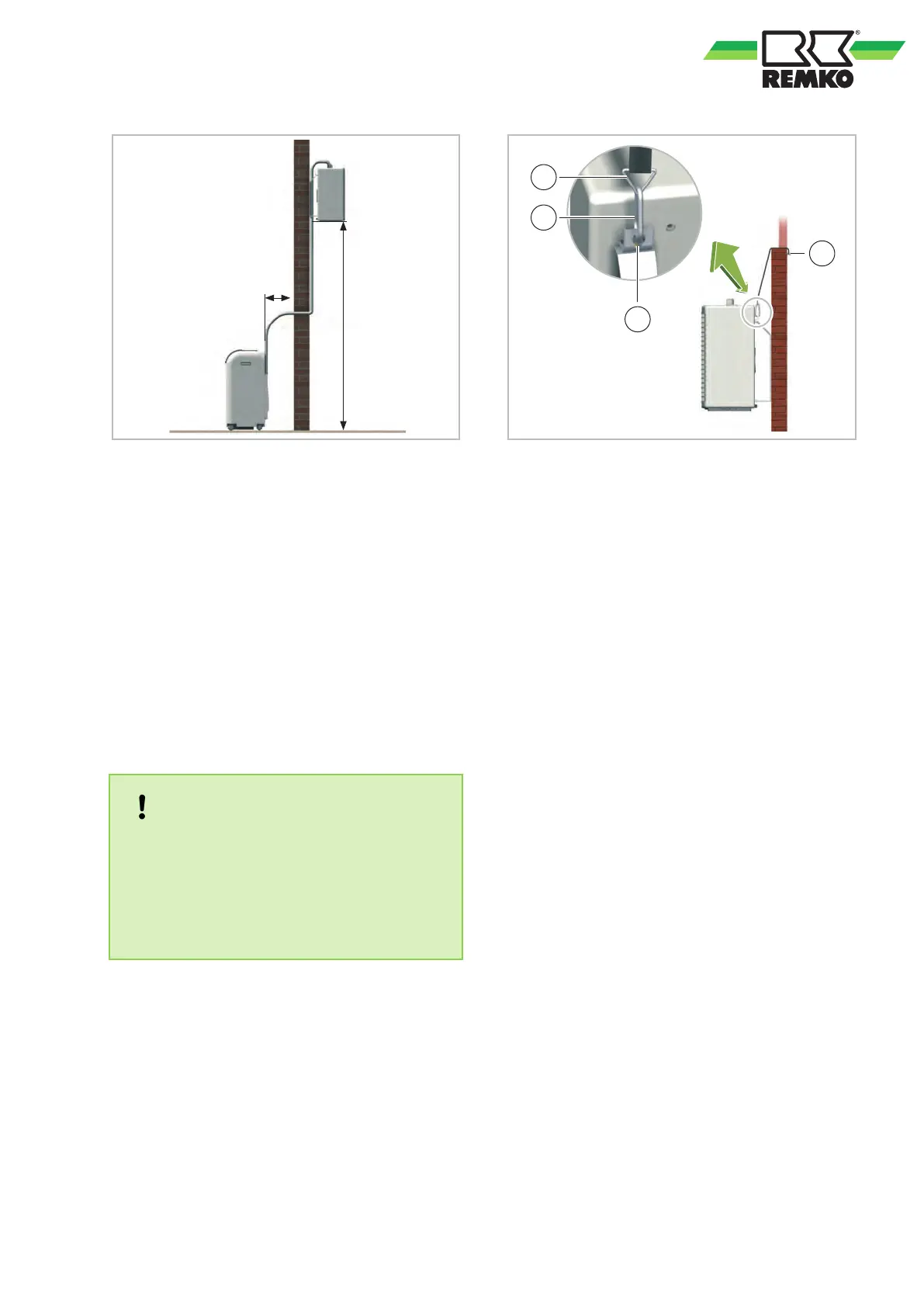

Fig. 10: Max. assembly height
External wall mounting with fastening straps
Fastening straps are an additional option for
mounting the outdoor unit to an external wall or
parapet wall.
n Hook the wall bracket onto the outdoor unit and
secure it with the screws (M4).
n Hook one end of the fastening strap with the
spring catch into the fastening eyelet of the
outdoor unit.
n Hook the other end of the fastening strap into
the eyelet bolt which is to be attached to the
on-site external wall or parapet wall (
Fig. 11).
Ensure sufficient stability.
NOTICE!
Depending on the weather can out of the con-
densate drain at the back of the outer part con-
densation run and cause noise. This is a normal
process. Select the installation site for the out-
door unit in such a way as the draining water
cannot cause any form of damage or hook up
the connection to a drain.
Fig. 11: Assembly with fastening straps
1 Spring catch
2 Fastening eyelet
3 Safety bolt M4
4 Eyebolt
13
