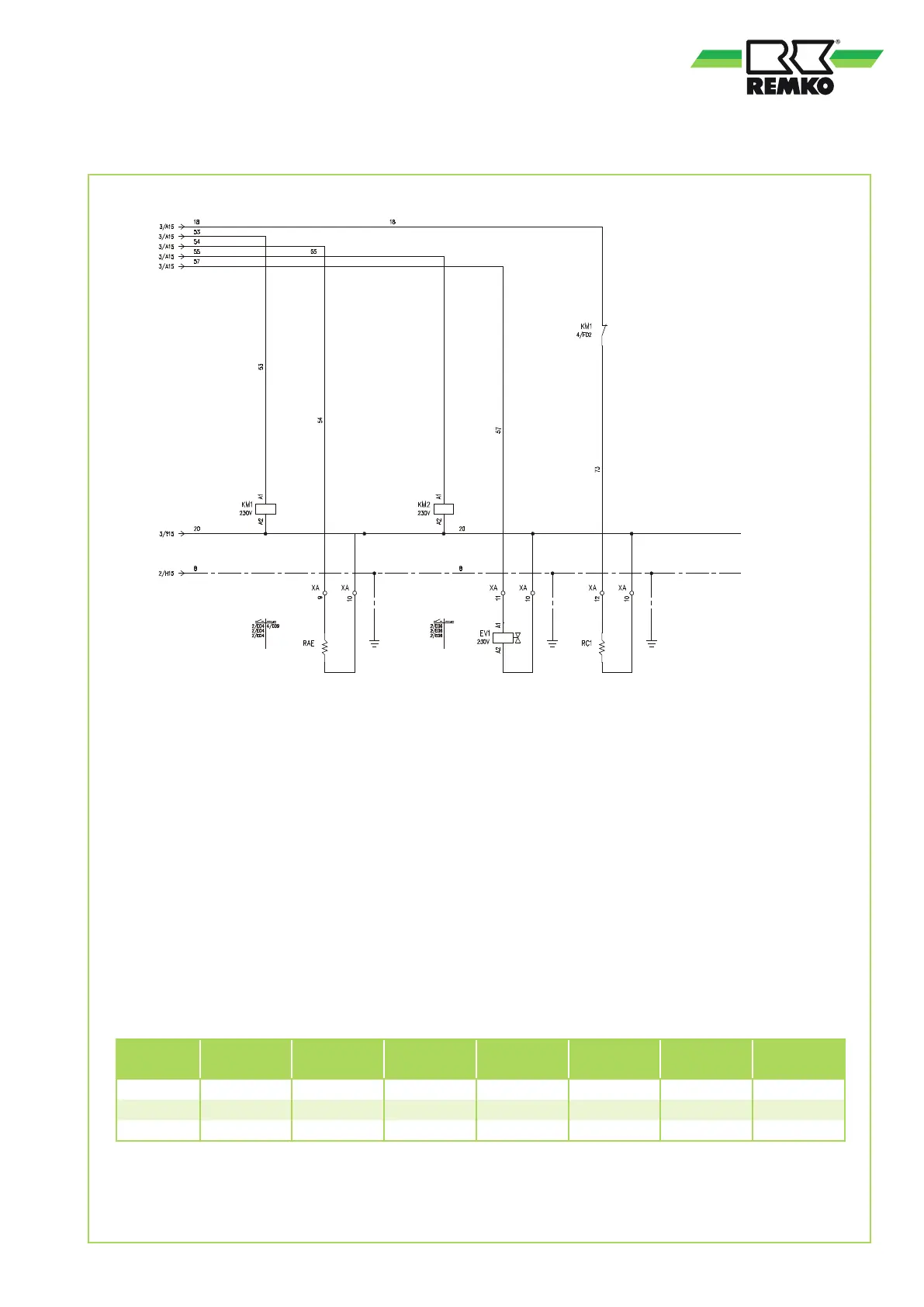

REMKO KWL 130 - Page 33

Legend:
A1 iChiLL controller
A2 Fan controller
B1 Probe medium intake
B2 Probe medium outlet
B3 Probe fan controller
B4 not used
EV1 Reversing valve
FL Differential pressure switch
HP High pressure monitor
KA3 Phase sequence relay
LP Low pressure monitor
M1 Compressor
M2 Circulation pump
M3 Condenser fan 3
M4 Condenser fan 4
M10 Condenser fan 1
M11 Condenser fan 2
RC1 Compressor crank case heating
TA Transformer 230/12V
TR 3 not used (accessory - pressure transducer)
TX1 Thermal contact fan 1
TX2 Thermal contact fan 2
KWL 370 (H)
Component equipment
KWL 130 KWL 160 KWL 180 KWL 220 KWL 270 KWL 320 KWL 370
KM 1 5.5kW-AC3 5.5kW-AC3 7.5kW-AC3 11kW-AC3 11kW-AC3 15kW-AC3 15kW-AC3
KM 2 4kW-AC3 4kW-AC3 4kW-AC3 4kW-AC3 4kW-AC3 4kW-AC3 4kW-AC3
QM 1 16A-D3 20A-D3 20A-D3 20A-D3 25A-D3 32A-D3 40A-D3
Anti-freeze heating, cooling medium
(Accessories)
Reversing valve
(only KWL...H)
CW heater
(Accessories)
33
