REMKO RVT 262 - Wall Bracket for the Indoor Unit

5.9 Wall bracket for the indoor unit
A
B
C
D
E
F
G H I
J

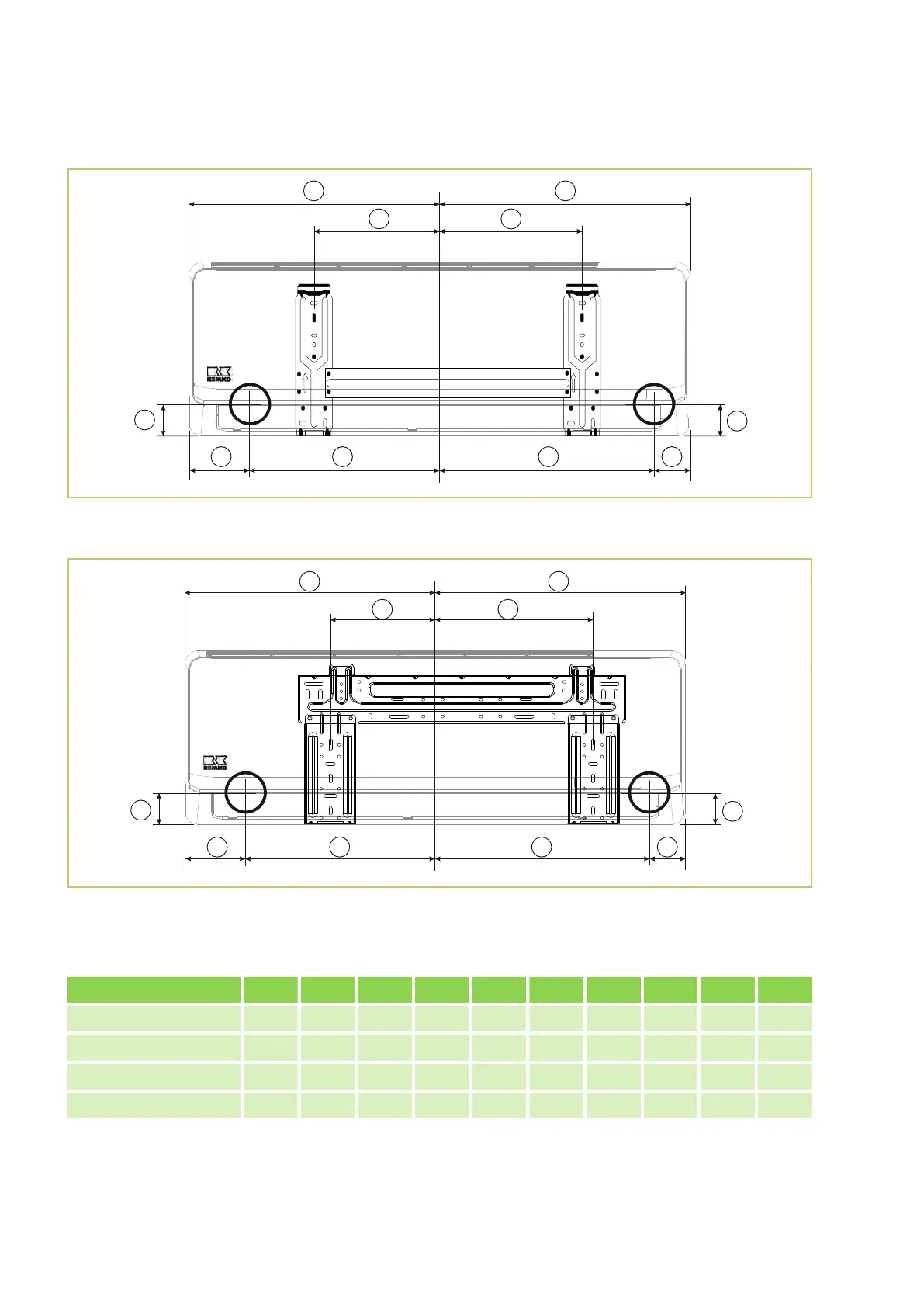

Fig. 36: Mounting points for the wall bracket RVT 262 IT and RVT 352 IT
(Frontal view, all dimensions in mm)
A
B
C
D
E
F
G H I J
Fig. 37: Mounting points for the wall bracket RVT 522-682 IT (Frontal view, all dimensions in mm)
Unit type/dimens. A B C D E F G H I J
RVT 262 IT 375 375 165 275 45 45 70 305 280 95
RVT 352 IT 417,5 417,5 210 230 45 45 70 347,5 317,5 100
RVT 522 IT 497,5 497,5 183 227 45 45 100 397,5 357,5 140
RVT 682 IT 595 595 295 325 45 45 100 495 515 80
All dimensions in mm. Diameter of pipe opening is always Ø 65 mm
The wall bracket for the units must be attached with suitable screws and anchors.
