5.6 Minimum clearances
Observe the minimum clearances to allow access for maintenance and repair work and facilitate optimum air
distribution.
2
1
2
1
A
B
C
D
E
E
C
A
B
F
IT AT

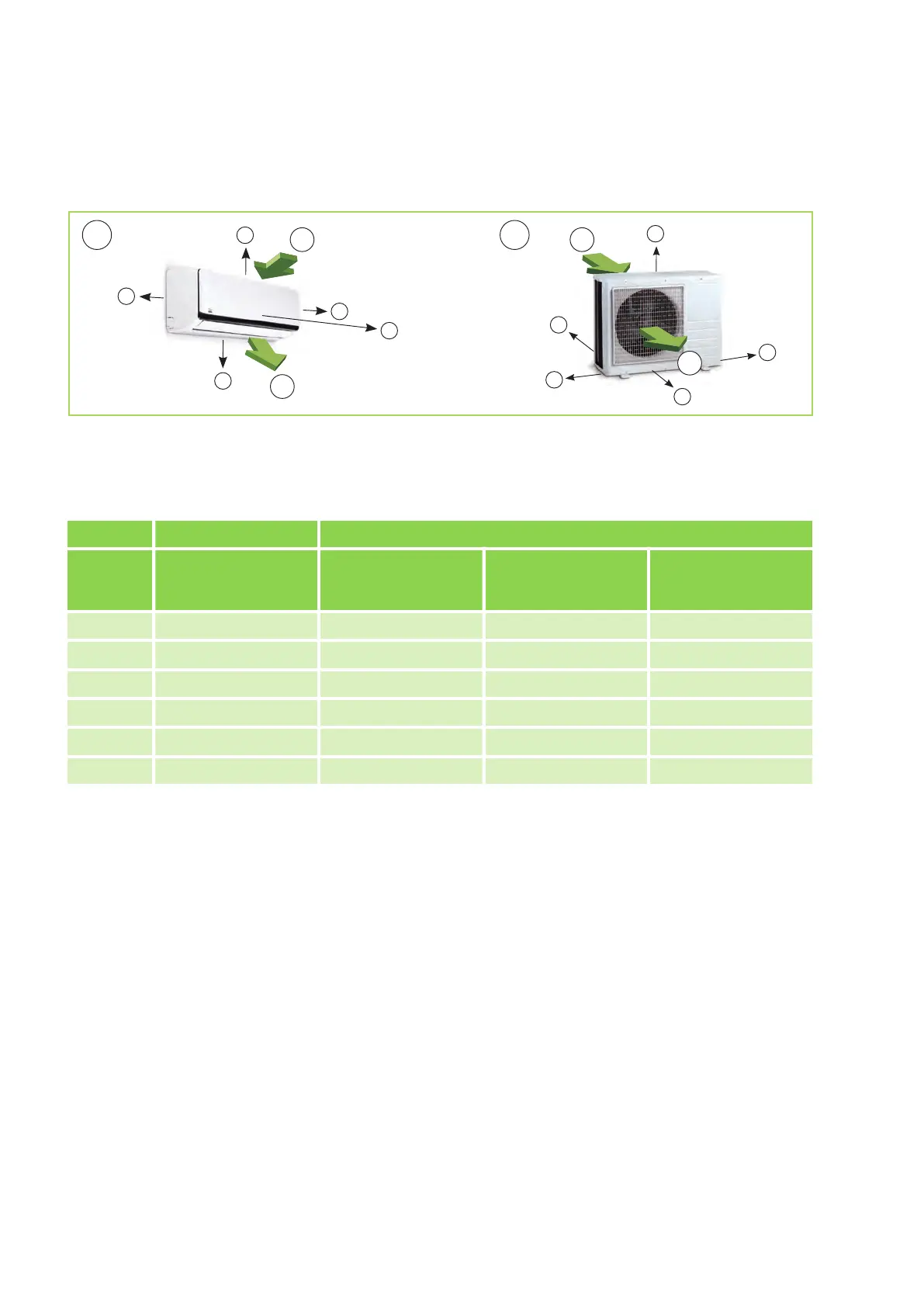

Fig. 33: Minimum clearances of the indoor unit and outdoor unit
AT: Outdoor unit
IT: Indoor unit
1: Air inlet
2: Air outlet
Indoor units Outdoor units
Dimen-
sions
(mm)
RVT 262-682 IT RVT 262 AT RVT 352 AT RVT 522-682 AT
A 120 150 150 150
B 1500 700 700 700
C 120 400 400 400
D - 150 150 150
E 120 200 200 400
F 200 - - -
