Connecting the outdoor unit
Proceed as follows to connect the line:
1. Remove the side-panel cover.
2. Choose a cable-section according to the rele-
vant specifications.
3. Connect the lines as shown on the electrical
connection diagram.
4. Fix the line in the strain relief and re-
assemble the unit.
Fig. 47: Connecting the outdoor unit
8.4

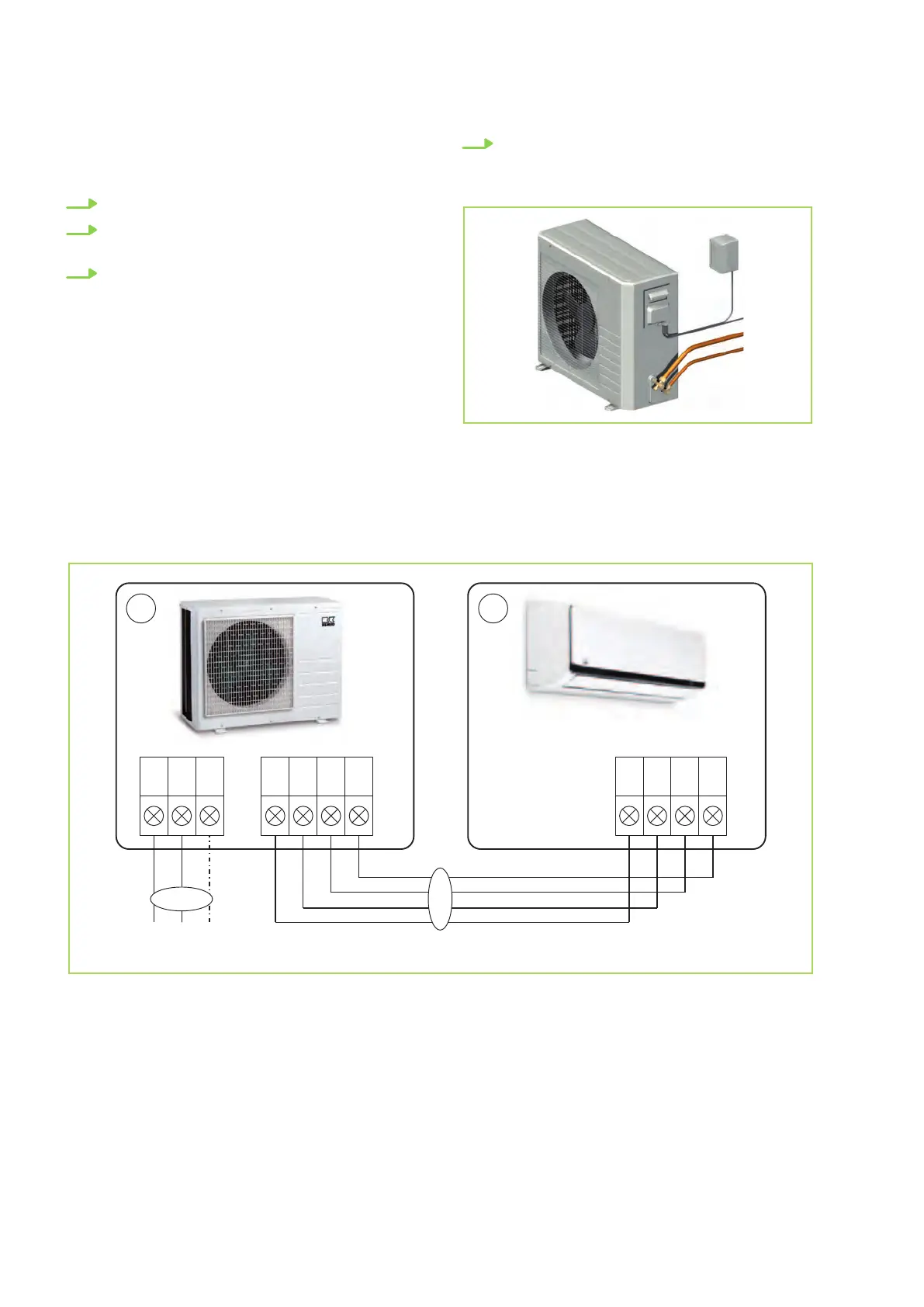

Electrical connection diagram
Connection RVT 262-682
230V/1~/50 Hz
L N PE L(1) 1 2(N) S L(1) 1 2(N) S
BA
1
2
Fig. 48: Electrical connection diagram
A: Outdoor unit RVT 262-682 AT
B: Indoor unit RVT 262-682 IT
1: Power supply
2: Communication lines
