FUSES

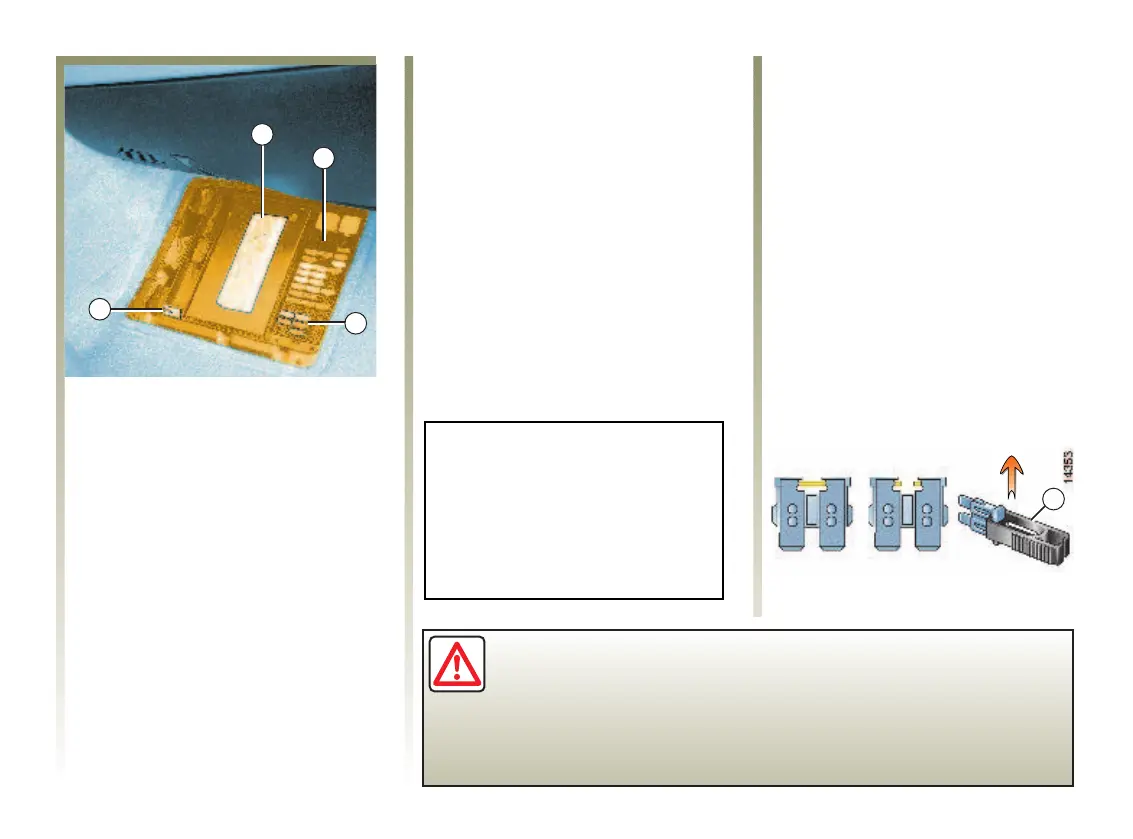

Passenger compartment fuse
box A
If an incident occurs in an electrical
component, check first of all that
the fuses are sound.
Also make sure that the faulty
component is correctly connected.
In the event of a short circuit, isolate
the battery by unscrewing the
negative terminal. Under no
circumstances should you
disconnect the positive terminal
before the negative terminal.
Passenger compartment fuse box A
can be found “under the passenger's
feet”.
To open it, lift the carpet and
remove the cover (using a coin).
To identify the fuses, refer to the
fuse assignment label B found in the
fuse box (illustrated opposite).
A wise precaution: obtain a box
of spare bulbs and fuses from
your Renault Dealer.
Replacing fuses
Removethefuseusingthetweezers
1. Slide the fuse sideways to remove
it from the tweezers.
Fuses R are spare fuses.
CORRECT INCORRECT
Check the fuse concerned and replace it if necessary with a new
fuse which must be of the same amperage rating as the original
fuse.
If a fuse with too high a rating is fitted, it may cause the electrical
circuit to overheat (risk of fire) in the event of an item of equipment
drawing an excessive amount of current.
