HEATING - VENTILATION (continued) manual air conditioning version

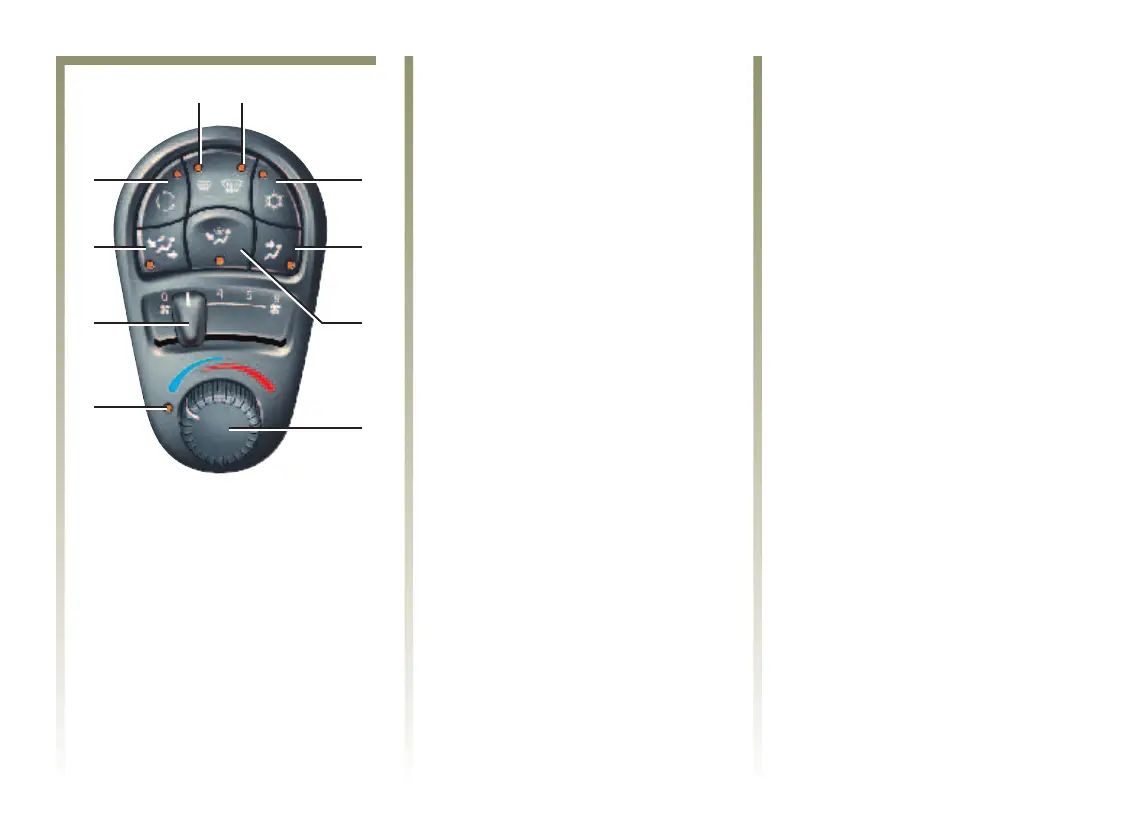

Controls
1a-1b - De-icing: “See clear” button
2 - Air conditioning
3 - Air distribution control
4 - Air distribution control
5 - Air adjustment
6 - Indicator light
7 - Adjustment of volume of air
delivered
8 - Air distribution control
9 - Isolation of the passenger
compartment (air recirculation).
5-Adjusting the air
temperature.
To raise the temperature, turn the
button to the right and in the reverse
direction to lower it.
This button regulates the
temperature on the driver and
passenger sides (indicator light 6
lights up) or only on the driver side
(indicator light 6 goes out) if the
passenger temperature control is
activated.
You can turn off the passenger
temperature control by pressing one
of the air supply buttons 3-4or 8
for a couple of seconds.
In addition, when button 1 is
selected, the passenger control is
automatically turned off.
